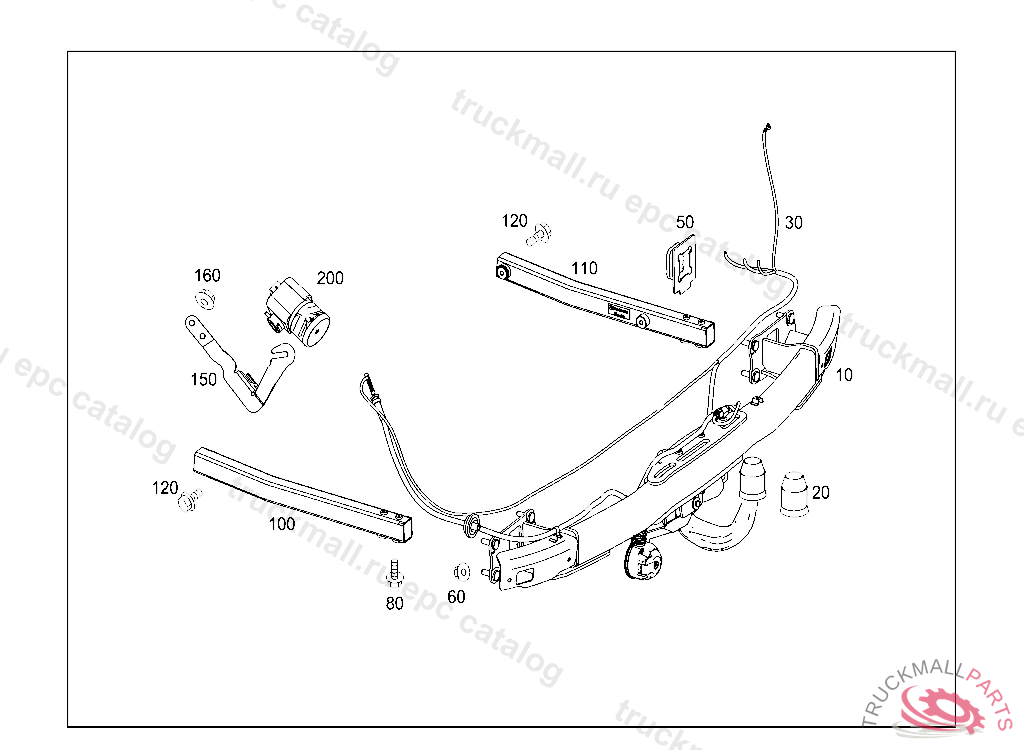

E 500 - 207.472 - 31 HITCHING MECHANISM
Поз.
Артикул
Описание
10
TRAILER HITCH
10
TRAILER HITCH , Replaced By: A2073100000
20
CAP BALL HEAD
30
ELECTRICAL WIRING HARNESS HITCHING MECHANISM
50
GASKET CROSS MEMBER TO SIDE MEMBER REINFORCEMENTS
60
NUT LINKAGE TO REAR AXLE M10, J 45136320070307
80
HEXAGON HEAD BOLT CROSS MEMBER TO SIDE MEMBER REINFORCEMENTS M12X35
100
REINFORCEMENT LEFT
110
REINFORCEMENT RIGHT
120
SCREW-AND-WASHER ASSEMBLY REINFORCEMENT FASTENING M10X25
150
CONSOLE UNLOCKING MOUNT
160
NUT , Replaced By: N913023006001
200
HANDLE
