Поз.
Артикул
Описание

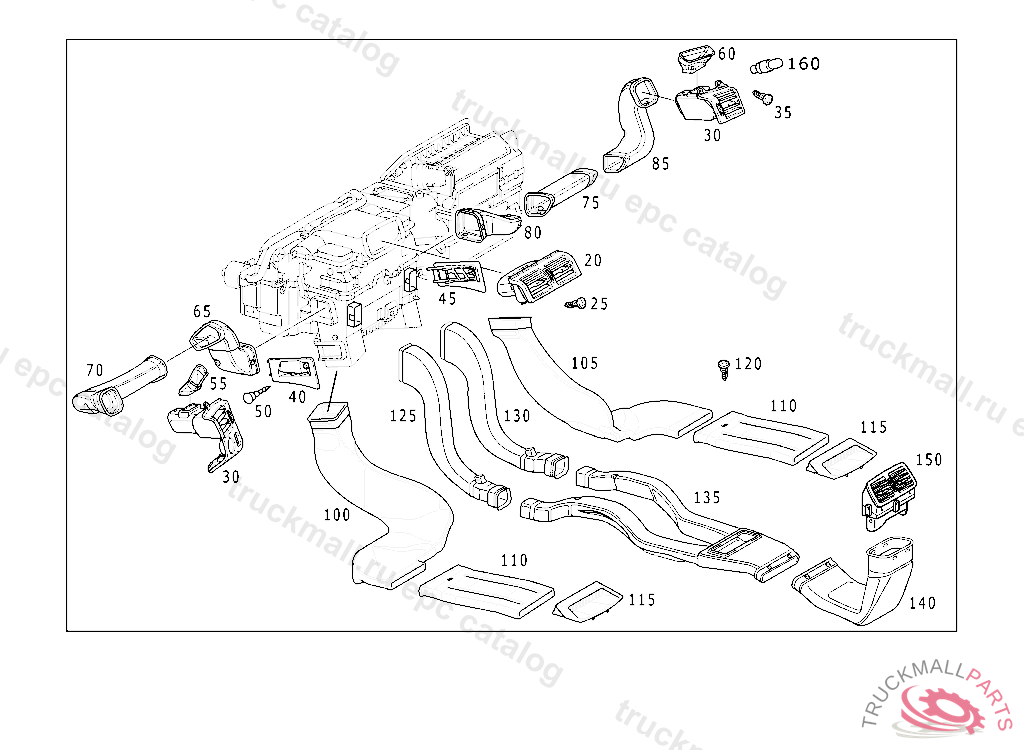

20
NOZZLE FRESH AIR,INSTRUMENT PANEL,CENTER
25
SCREW AUTOMATIC HEATING OPERATING UNIT TO LEDGE IN HOUSING,TOP
30
NOZZLE RIGHT,LIGHT RANGE REGULATOR
30
NOZZLE LESS LIGHT RANGE REGULATOR,RIGHT
30
NOZZLE LEFT,LIGHT RANGE REGULATOR
30
NOZZLE LESS LIGHT RANGE REGULATOR,LEFT
30
NOZZLE SIDE PANE DEFROSTING,INSTRUMENT PANEL, LATERAL LEFT
30
NOZZLE SIDE PANE DEFROSTING,INSTRUMENT PANEL, LATERAL RIGHT
35
SHEET METAL SCREW BRACKET TO SUPPORT
40
AIR BAFFLE LEGROOM,LEFT
45
AIR BAFFLE LEGROOM,RIGHT
50
PLUG
55
AIR DUCT IN LEFT LOUDSPEAKER GRID
55
AIR DUCT IN LEFT LOUDSPEAKER GRID
60
AIR DUCT IN RIGHT LOUDSPEAKER GRID
60
AIR DUCT IN RIGHT LOUDSPEAKER GRID
65
AIR DUCT BETWEEN HEATER CASE AND LEFT SIDE NOZZLE
65
AIR DUCT BETWEEN HEATER CASE AND LEFT SIDE NOZZLE
70
AIR DUCT BETWEEN HEATER CASE AND LEFT NOZZLE, ON NOZZLE
70
AIR DUCT BETWEEN HEATER CASE AND LEFT NOZZLE, ON NOZZLE
75
AIR DUCT SIDE VENT RIGHT CENTRAL
75
AIR DUCT SIDE VENT LEFT CENTRAL
80
AIR DUCT BETWEEN HEATER CASE AND RIGHT SIDE NOZZLE
80
AIR DUCT BETWEEN HEATER CASE AND RIGHT SIDE NOZZLE
85
AIR DUCT BETWEEN HEATER CASE AND RIGHT NOZZLE, ON NOZZLE
85
AIR DUCT BETWEEN HEATER CASE AND RIGHT NOZZLE, ON NOZZLE
100
AIR DUCT FRONT LEFT
105
AIR DUCT FRONT RIGHT
105
AIR DUCT FRONT RIGHT
110
AIR DUCT REAR
115
AIR DUCT END PIECE
120
SHEET METAL SCREW AIR BAFFLE TO AIR DUCT 4.2X25
125
AIR DUCT LEFT
130
AIR DUCT RIGHT
135
DUCT ON TUNNEL
140
AIR DUCT ON TUNNEL
150
NOZZLE
160
BULB LIGHTING OF LEFT AND RIGHT OPERATING UNITS AND BLOWER SWITCH
