Mercedes A0085451326 - Корпус разъема

E 280 4MATIC 210.081 TO MODELLJAHR CODE 809

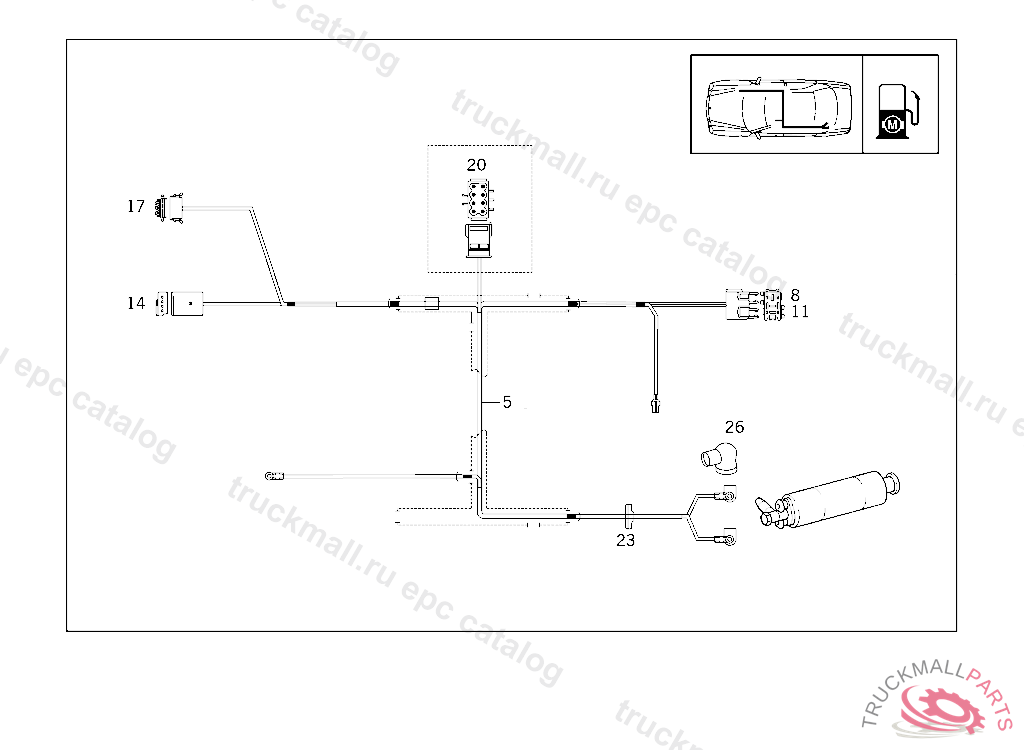

54 ELECTRICAL EQUIPMENT AND INSTRUMENTS - 535 FUEL PUMP CABLE

Поз.
Артикул
Описание
5
A2105400634
CABLE HARNESS FUEL PUMP, A 394036 X 001165 EXCEPT CODE 807 ALSO INSTALLED IN VEHICLE TO A 394035 WITH CODE 808 A 698507 X 012425 EXCEPT CODE 809 ALSO INSTALLED IN VEHICLE FROM A 698508, X 012426 WITH CODE 808 EXCEPT A 654636, A 704016
5
A2105408635
ELECTRIC CABLE FUEL PUMP, A 698508 X 012426 EXCEPT CODE 808 ALSO INSTALLED IN VEHICLE TO A 698507, X 012425 WITH CODE 809 ALSO INSTALLED IN A 654636, A 704016
8
A0085451326
PLUG HOUSING
11
A0045455226
CONTACT SPRING1-2.5 MM2
11
A0045455326
FLAT PIN BUSHING
14
A0085455526
CONTACT BUSHINGR 27, 0.75 MM2
17
A0045455226
CONTACT SPRING1-2.5 MM2
20
A0335452028
PLUG PIN DOOR SEPARATION POINT 1,0-2,5 MM2
