Поз.
Артикул
Описание

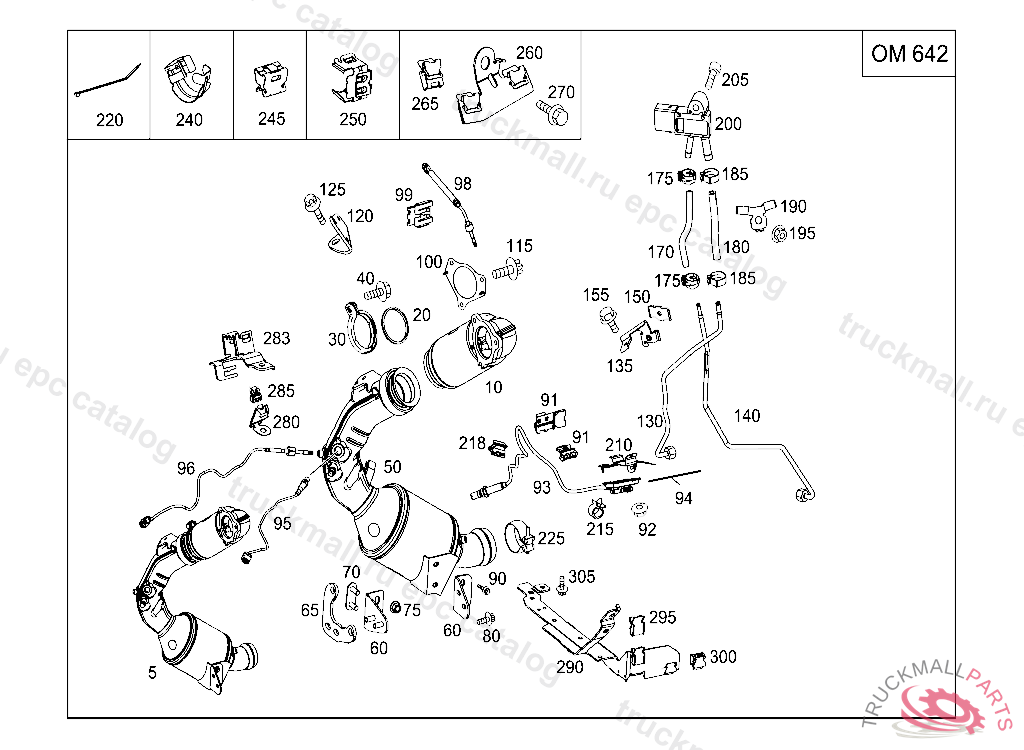

5
EXHAUST SYSTEM , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
EXHAUST SYSTEM , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
10
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
20
SEAL RING UPSTREAM OF PARTICULATE FILTER
30
CLAMP EXHAUST LINE TO EXHAUST PIPE, FRONT
40
SCREW CLAMP ON BRACKET
50
CATALYTIC CONVERTER SYS. , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
50
DIESEL PARTICULATE FILTER , PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
60
BRACKET TO PARTICULATE FILTER
80
SCREW BRACKET TO SIDE MEMBER M8X20
90
HEXALOBULAR BOLT BRACKET MOUNTING M8X16,V 207570
92
NUT VALVE TO BRACKET
93
NOX SENSOR , Replaced By: A0009053403
93
NOX SENSOR
94
ELECTRICAL WIRING HARNESS FRONT NOX SENSOR CONNECTOR
95
OXYGEN SENSOR
96
TEMPERATURE SENSOR
98
TEMPERATURE SENSOR UPSTREAM OF PARTICULATE FILTER
99
BRACKET FASTENING, TEMPERATURE SENSOR
100
FLANGE GASKET FRONT
115
BOLT CATALYST TO BRACKET M8X20
120
BRACKET TO THREE-WAY CATALYTIC CONVERTER
120
BRACKET TO PRE-CATALYST
125
HEXALOBULAR BOLT COVER PANEL FASTENING M8 X 16
130
PRESSURE LINE UPSTREAM OF PARTICULATE FILTER
130
PRESSURE LINE UPSTREAM OF PARTICULATE FILTER
135
BRACKET ATTACHMENT DELIVERY LINE
140
PRESSURE LINE DOWNSTREAM OF PARTICULATE FILTER
140
PRESSURE LINE DOWNSTREAM OF PARTICULATE FILTER
150
SHACKLE UPPER PART
155
SCREW. HEXAGON HEAD BOLT RELAY TO BRACKET M5X16
170
EXHAUST GAS HOSE TO PRESSURE SENSOR
170
EXHAUST HOSE TO PRESSURE SENSOR
175
LOOM TIE , A 358832 EXCEPT FOR A 331465 - A 358832 WITH CODE 057
175
LOOM TIE13,5 X 6 MM
180
EXHAUST HOSE TO PRESSURE SENSOR
180
EXHAUST GAS HOSE TO PRESSURE SENSOR
185
LOOM TIE13,5 X 6 MM
185
HOSE CLAMP HOSE ATTACHMENT
190
BRACKET FASTENING, EXHAUST HOSES
195
NUT BRACKET TO BODY SHELL M6
200
PRESSURE SENSOR PARTICLE FILTER
200
PRESSURE SENSOR
200
PRESSURE SENSOR AT SPLASH WALL
205
HEXALOBULAR BOLT. SCREW LINE MOUNTING M 6X30
218
BRACKET CABLE HARNESS MOUNTING 13X18 MM
220
CABLE TIE SENSOR CABLE PROTECTION 145X3.4MM
225
CLAMP FRONT EXHAUST PIPE TO REAR EXHAUST PIPE 76 MM
240
CLIP
245
SPRING CLAMP FOR SHEET THICKNESS 6-9MM
250
SPRING CLAMP FOR SENSOR CONNECTOR 28X24 MM
260
BRACKET SENSOR LINE FASTENING, A 02506420110818
265
BRACKET TO SHIELD
270
HEXALOBULAR BOLT. SCREW BRACKET TO TRANSMISSION M 6X15
283
BRACKET ON ENGINE SUPPORT
285
CLIP OXYGEN SENSOR
