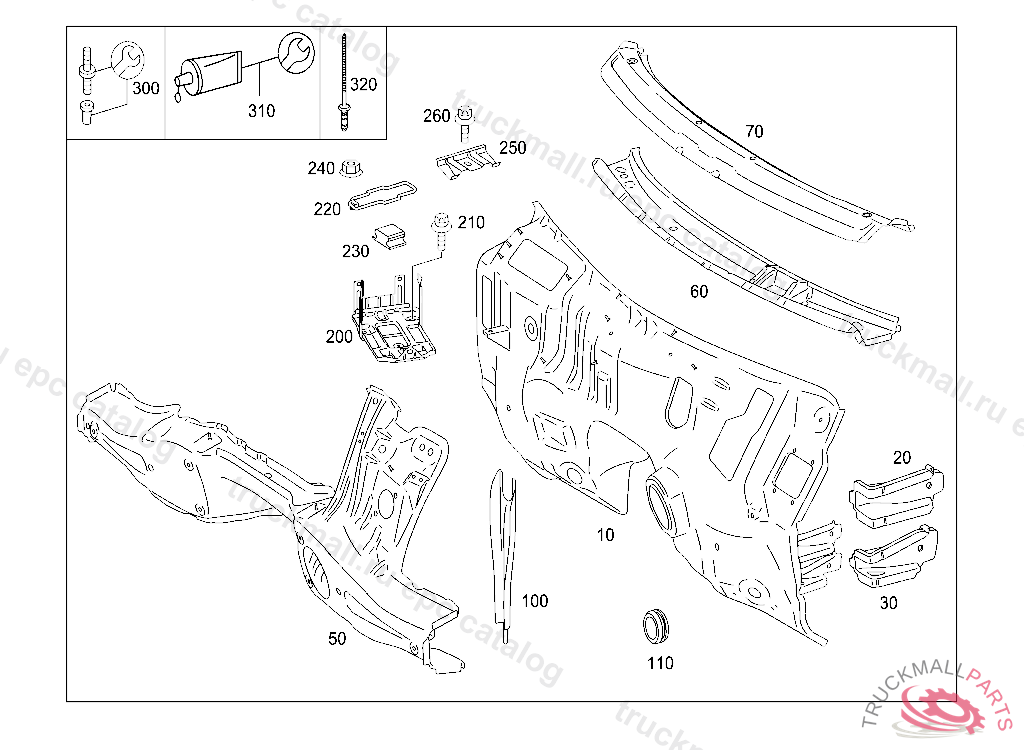

Поз.
Артикул
Описание
10
FIREWALLLL, A 01175020070731808
10
FIREWALL , A 02041220080626809
10
FIREWALLRL, A 01175020070731808
10
FIREWALL , A 02041220080626809
20
SUPPORT FIRE WALL,TOP LEFT
20
SUPPORT FIRE WALL,TOP RIGHT
30
SUPPORT FIRE WALL, BOTTOM LEFT
30
SUPPORT FIRE WALL,BOTTOM RIGHT
50
SUPPORT FIRE WALL,BOTTOM
50
SUPPORT FIRE WALL,BOTTOM
60
SUPPORT BELOW WINDSHIELD,BOTTOM
60
SUPPORT BELOW WINDSHIELD,BOTTOM
70
CROSS MEMBER BELOW WINDSHIELD,TOP
100
STRUT OSCILLATING SUPPORT
110
GROMMET TACHOGRAPH OR SPEEDOMETER
200
FRAME BATTERY, A 01175020070731808
200
FRAME BATTERY, A 01175020070731808
200
FRAME BATTERY, A 02041220080626809
200
FRAME BATTERY, A 02041220080626809
200
FRAME BATTERY, A 02041220080626809
200
FRAME BATTERY, A 02041220080626809
210
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
210
SCREW SPEED SENSOR TO REAR AXLE
220
CLAMP BATTERY MOUNTING
230
PAD LOCK BRACKET
240
NUT MOUNTING FRAME TO SUPPORT M6
250
MOUNTING RAIL BATTERY MOUNTING
250
MOUNTING RAIL BATTERY MOUNTING
250
RAIL BATTERY MOUNTING
250
RAIL BATTERY FASTENING
260
SCREW SPEED SENSOR TO REAR AXLE
300
SCREW (PARTS KIT) PARTITION PANEL TO WHEELHOUSE
310
TS GLUING COMPONENT REPAIR KIT
320
BLIND RIVET REPAIR SOLUTION 6,4 X 12MM / 1-3,5MM, NO LONGER AVAILABLE RIVET ONLY VALID FOR BR222. REPAIR INFORMATION SEE WIS. ADDITIONAL INFORMATION ON TECHNICAL MARKET SUPPORT
