Поз.
Артикул
Описание

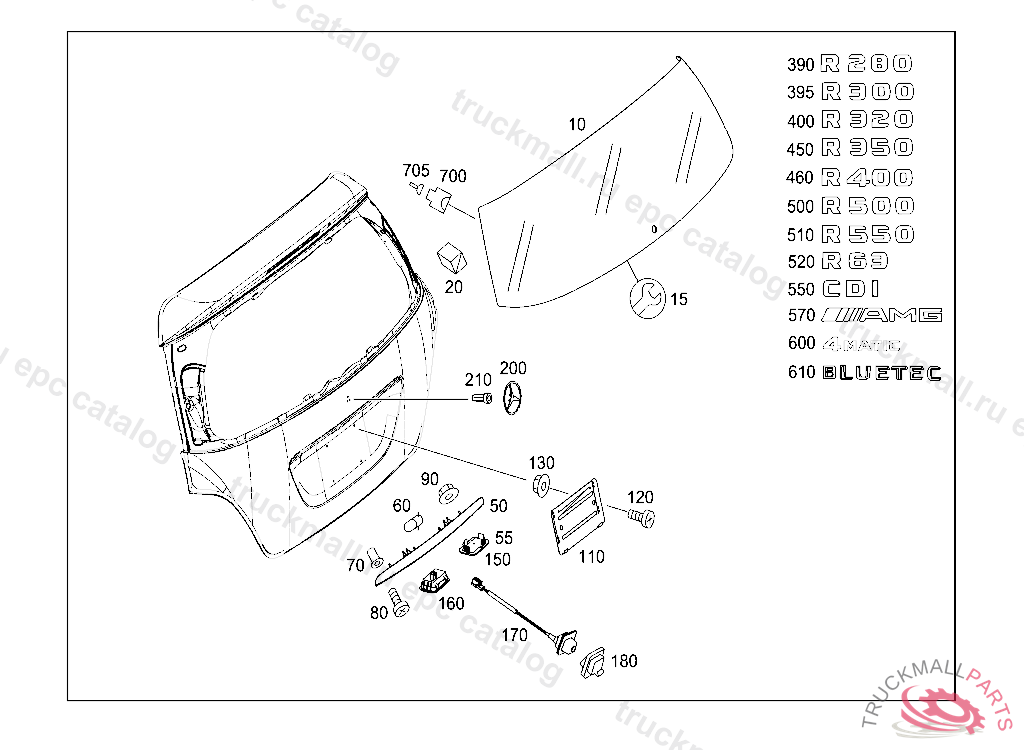

10
REAR WINDOW REAR PANEL DOOR
10
REAR WINDOW REAR PANEL DOOR
10
REAR WINDOW REAR PANEL DOOR
15
RS WINDOW SYS. - GLAZING GLAZING
15
RS WINDSHIELD GLAZING, NOT FOR AUSTRALIA
15
RS FRONT WINDOW GLAZING, "1-COMPONENT ADHESIVE"
20
INTERMEDIATE LAYER SUPPORT BETWEEN BODY AND WINDSHIELD 5.5 X 5.5 X 10 MM
20
BASE
50
MOULDING TYPE HANDLE WITH LICENSE PLATE LAMP, A 00558020051003806
55
DIFFUSER LENS MOULDING TYPE HANDLE TO REAR PANEL DOOR, A 00558020051003806
60
BULB LICENSE PLATE LAMP 12V-5W
70
NUT SHELL AND LICENSE PLATE LAMP TO REAR LID
80
HEXALOBULAR BOLT. SCREW STEP TO ENTRANCE
90
NUT , Replaced By: N913023006001
110
FASTENING PLATE DESIGNATION
120
BOLT HANDLE TO REAR LID, A 15992220090714
120
BOLT LICENSE-PLATE MOUNTING M6X8
130
NUT SHELL AND LICENSE PLATE LAMP TO REAR LID
130
NUT ROUND HEAD, LICENSE PLATE TO TAIL CENTRAL PART
150
REFLECTOR , A 31220520070808
160
PUSH-BUTTON SWITCH AUTOMATIC REAR-END DOOR CLOSING
160
SIGNAL LAMP REAR PANEL DOOR
160
PUSH-BUTTON SWITCH AUTOMATIC REAR-END DOOR CLOSING
160
SWITCH AUTOMATIC REAR-END DOOR CLOSING, Replaced By: A2128210551
160
SWITCH REMOTE TRUNK LOCKING
170
CAMERA CONJUNCTION WITH PARKING AID
170
CAMERA CONJUNCTION WITH PARKING AID, A 10384720090901
180
COVER REAR-VIEW CAMERA
200
MERCEDES STAR
210
GROMMET MERCEDES STAR TO REAR LID
390
TYPE DESIGNATION AT REAR PANEL DOOR, A 09451620080930
400
TYPE DESIGNATION AT REAR PANEL DOOR
510
TYPE DESIGNATION AT REAR PANEL DOOR
550
MODEL PLATECDI, TO BE ADAPTED DURING ASSEMBLY
600
TYPE DESIGNATION ON REAR LID,ADHESIVE "4MATIC"
610
MODEL PLATE ON REAR LID BLUETEC
700
PIN BUSHING HOUSING PIN BUSHING 5.3 MM
705
CONTACT SPRING. CONTACT BUSHING HEATED REAR WINDOW
705
CONTACT SPRING1,0MM
