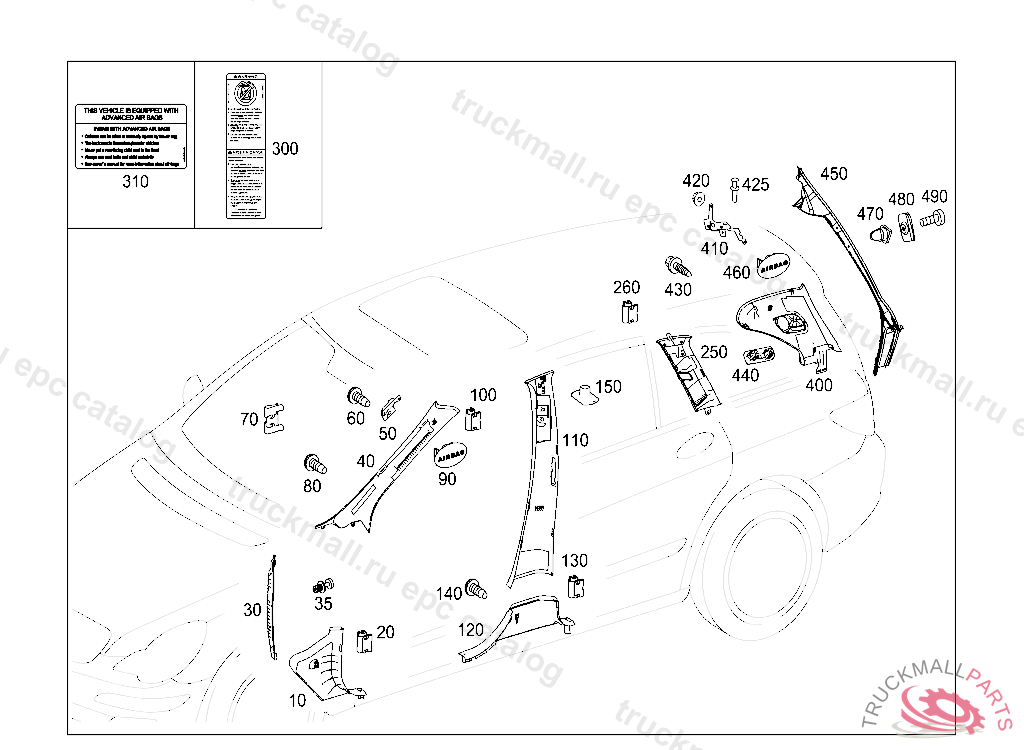

Поз.
Артикул
Описание
10
PANELING A-PILLAR BOTTOM,LEFT
10
PANELING A-PILLAR BOTTOM,LEFT
10
PANELING A-PILLAR, LOWER, RIGHT
10
PANELING A-PILLAR, LOWER, RIGHT
20
SPRING CLAMP LOADING COMPARTMENT,RIGHT
30
COVER LEFT
30
COVER RIGHT
35
RIVET BUSHING AND LEVER TO CAB
40
PANELING A-PILLAR TOP, LEFT
40
PANELING A-PILLAR TOP, RIGHT
50
BRACKET PANELING TO A-PILLAR, TOP RIGHT
50
BRACKET PANELING TO A-PILLAR, TOP LEFT
60
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
70
CLIP RIGHT PANELLING
80
HEXALOBULAR BOLT BASIC MODULE AT SUPPORT M6X16,01.08.08
90
COVER SRS BADGE
100
CLIP B-PILLAR ON THE LEFT
110
B-PILLAR TRIM B-PILLAR ON THE LEFT
110
B-PILLAR TRIM B-PILLAR ON THE LEFT
110
PANELING B-PILLAR ON THE RIGHT
110
PANELING B-PILLAR ON THE RIGHT
110
PANELING B-PILLAR ON THE LEFT
110
PANELING B-PILLAR ON THE LEFT
110
B-PILLAR TRIM B-PILLAR ON THE RIGHT
110
B-PILLAR TRIM B-PILLAR ON THE RIGHT
120
B-PILLAR TRIM B PILLAR, BOTTOM LEFT
120
B-PILLAR TRIM B PILLAR, BOTTOM RIGHT
130
SPRING CLAMP LOADING COMPARTMENT,RIGHT
140
HEXALOBULAR BOLT BRACKET TO CONSOLE M6X16,V 224423
140
SCREW CLAMP MOUNTING M 6X16
150
SHEET METAL NUT CONDENSER TO FRONT STIFFENING
250
PANELING C-PILLAR RIGHT
250
PANELING C-PILLAR LEFT
260
SPRING CLAMP LOADING COMPARTMENT,RIGHT
310
GUIDE SIGN NOTE ON FRONT PASSENGER AIRBAG ONINSTRUMENT PANEL
400
PANELING D-PILLAR, TOP RIGHT
400
PANELING D-PILLAR, TOP LEFT
400
PANELING D-PILLAR, TOP LEFT
400
PANELING D-PILLAR, TOP RIGHT
410
BRACKET D-PILLAR, TOP RIGHT
410
BRACKET D-PILLAR, TOP LEFT
420
NUT COVERING TO CAB FIRE WALL
425
EXPANSION RIVET FASTENING COVER LEFT AND RIGHT
430
SCREW CHARGE PLUNGER UNIT
440
COVER IN D-PILLAR PANELING RIGHT
440
COVER IN D-PILLAR PANELING LEFT
450
COVER D-PILLAR, LEFT, A 11496520100722801 9051QFT251L0455 BLACK
450
D-PILLAR TRIM D-PILLAR, RIGHT, A 10483520090930800 9051QFT251L0455 BLACK
450
COVER D-PILLAR, RIGHT, A 11496520100722801 9051QFT251L0455 BLACK, Replaced By: A2516901630
450
D-PILLAR TRIM D-PILLAR, LEFT, A 10483520090930800 9051QFT251L0455 BLACK
450
COVER D-PILLAR, LEFT, A 11496520100722801 9051QFT251L0455 BLACK, Replaced By: A2516901330
450
COVER D-PILLAR, RIGHT, A 11496520100722801 9051QFT251L0455 BLACK, Replaced By: A2516901430
450
D-PILLAR TRIM D-PILLAR, LEFT, A 10483520090930800 9051QFT251L0455 BLACK
450
D-PILLAR TRIM D-PILLAR, RIGHT, A 10483520090930800 9051QFT251L0455 BLACK
450
COVER D-PILLAR, RIGHT, A 11496520100722801 9051QFT251L0455 BLACK
450
COVER D-PILLAR, LEFT, A 11496520100722801 9051QFT251L0455 BLACK
460
COVER SRS BADGE
470
TREENAIL DOOR STOP
470
TREENAIL BRACKET TO FIRE WALL
480
STOP RIGHT, 9051QFT251A0410 BLACK
480
STOP LEFT, 9051QFT251A0410 BLACK
490
SCREW SOCKET MOUNTING
