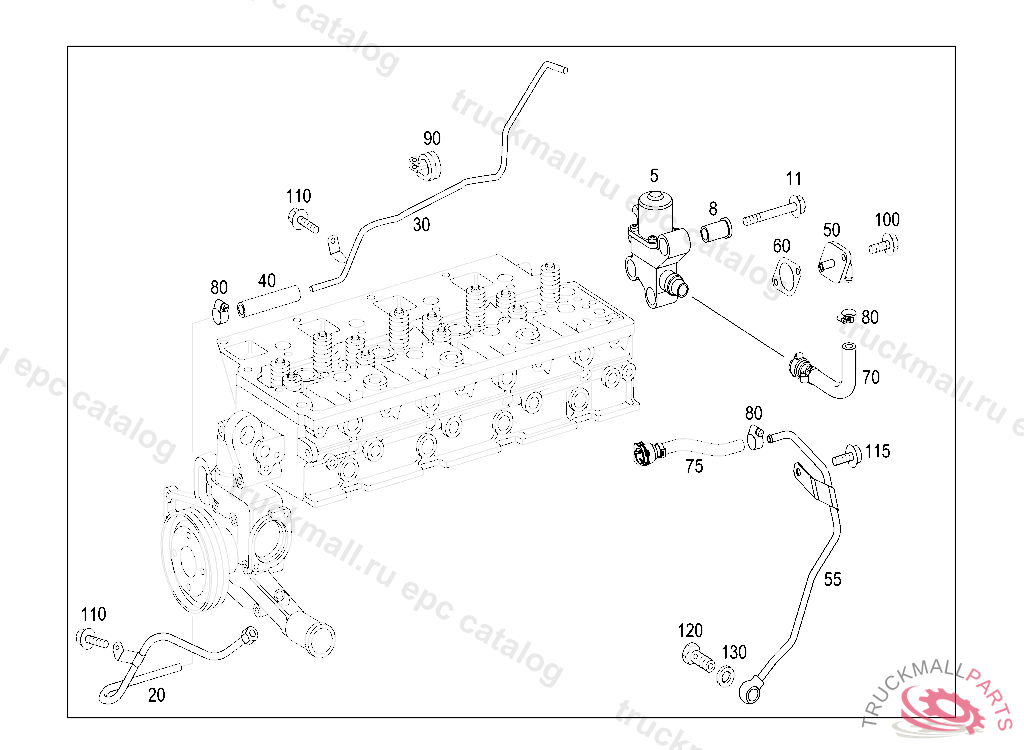

Поз.
Артикул
Описание
5
SOLENOID VALVE. VALVE
8
SPACER SLEEVE. SPACER TUBE VALVE TO CRANKCASE
11
HEXALOBULAR BOLT TRAVEL SENSOR TO FRAME SIDE MEMBER M8X70,V 207570
11
SCREW 3/2-WAY VALVE TO BRACKET
20
LINE COOLANT LINE,METERING MODULE
30
LINE COOLING WATER RETURN LINE
40
HOSE COOLING WATER LINE RETURN
50
LINE CONNECTING FLANGE,METERING MODULE
60
GASKET TO LOCK COOLING WATER CONNECTION
70
HOSE COOLING WATER FEED LINE
80
SINGLE-EYE CLAMP. CLAMP14.8 - 18.0 MM
90
CLAMP DE-AERATION LINE TO CHARGING AIR TRANSVERSE PIPE
100
HEXAGON HEAD BOLT BRACKET TO BRACKET M8X25
110
HEXAGON HEAD BOLT. SCREW CLUTCH TO FLYWHEEL M8X16 MM
