Поз.
Артикул
Описание

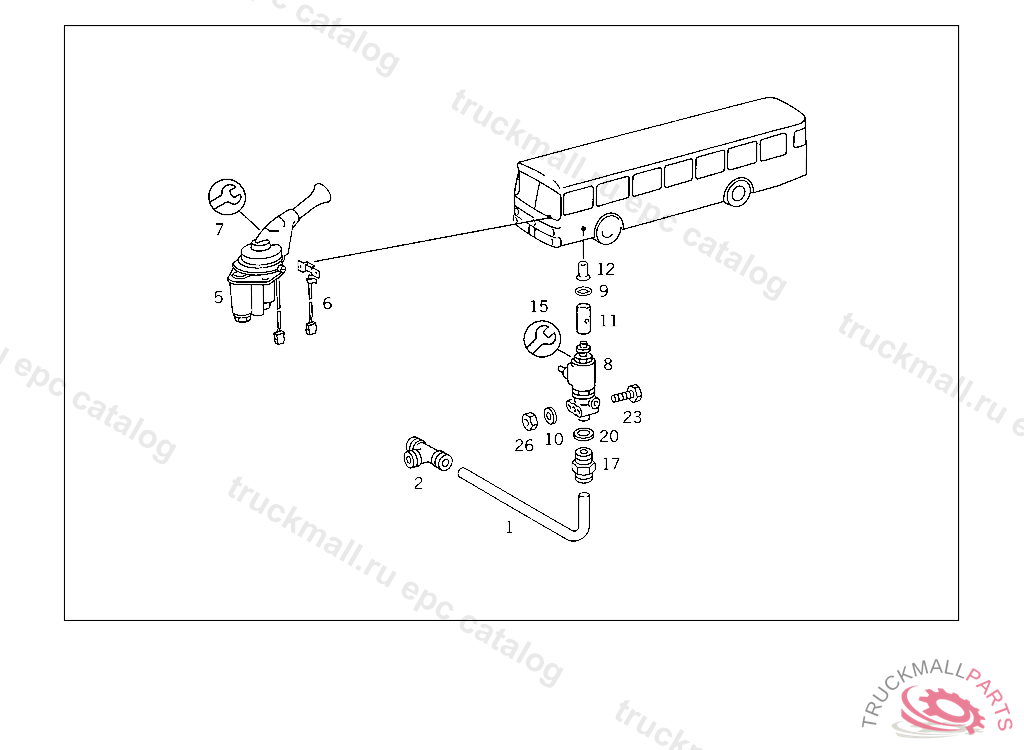

1
LINE CLUTCH 8 X 1, LENGTH AVAILABLE 3000 MM
2
T-FITTING 3/2-WAY VALVE,CONNECTIONS: "30,50"
5
VALVE HAND BRAKE,019538
6
SWITCH WITH CABLE TO 000 430 76 81, 10/50 UP TO IDENT NO.034050 EXCEPT FOR: 033449,033577,033608,033628,033648,033665,033672-033677,033681-033688,033981,033998,034012.
7
REPAIR KIT , Replaced By: A0004305760
7
REPAIR KITTO 000 430 55 81,WABCO, 620.415 UP TO CHASSIS 5 014668 620.416 UP TO CHASSIS 5 000515 620.417 UP TO CHASSIS 4 972023
8
VALVE , Replaced By: A0039971136
8
VALVE SOLENOID VALVE,5 450429 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
8
VALVE , Replaced By: A0049975736
8
VALVE (3/2-WAY SOLENOID VALVE) EKS
9
SEAL RINGWABCO
10
SEAL RINGTO 000 429 24 30
11
VALVE PART , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0004311668
11
VALVE PARTTO 004 997 00 36,5 757289 AUSSERDEM EINGEBAUT IN 5 759173
12
PROTECTIVE CAP , Replaced By: A0014310087
12
PROTECTIVE CAPWABCO
15
REPAIR KITTO 003 997 14 36,WABCO 472 123 19 80
17
FITTING LINE CONNECTION, Replaced By: N000000006446
17
FITTING LINE CONNECTION
20
SEAL RING LINE CONNECTION
23
SCREW PLUG SOCKET TO BRACKET BEHIND CAB
26
NUT BRACKET TO SIDE MEMBER
999
SEAL RING24X2 MM
999
SEAL RING VALVE TO VALVE
999
FITTING LINE CONNECTION
999
FITTING , Replaced By: A0039978972
999
VALVETO 003 997 11 36/12 36
999
VALVE PART
