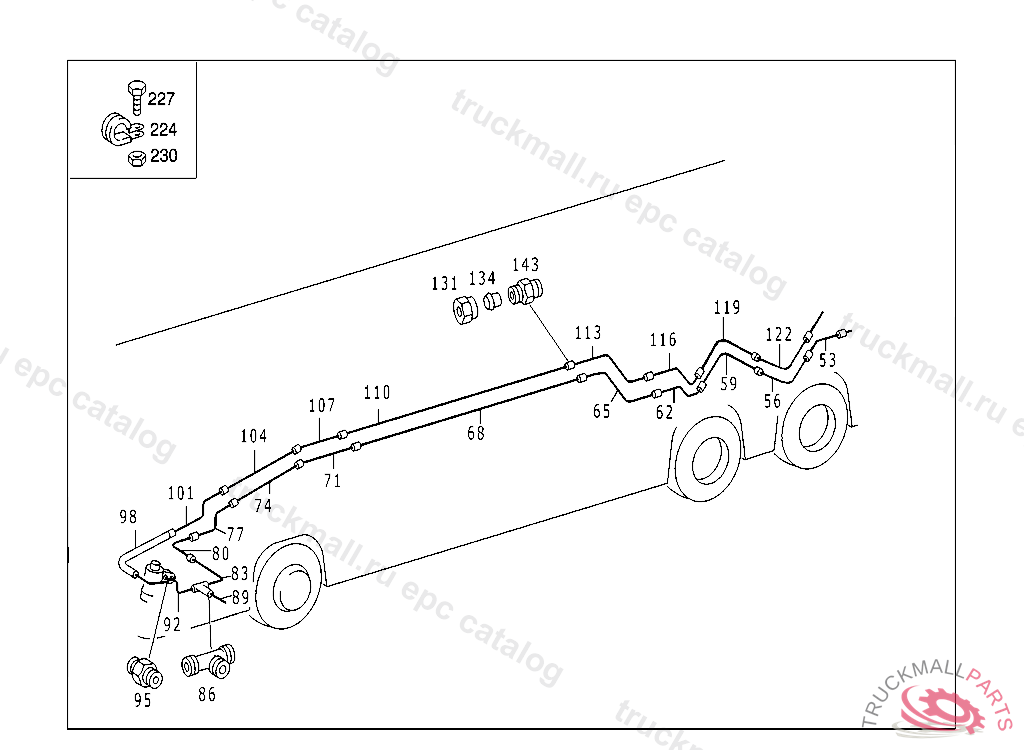

Поз.
Артикул
Описание
53
LINE HIGH PRESSURE LINE,098827
53
HIGH-PRESSURE OIL LINE900 MM
56
LINE HIGH PRESSURE LINE 62-63,098827
59
LINE HIGH PRESSURE LINE,101615
59
LINE HIGH PRESSURE LINE,101616
59
LINE HIGH PRESSURE LINE
59
LINE HIGH PRESSURE LINE,101615
62
LINE HIGH PRESSURE LINE
62
LINE HIGH PRESSURE LINE,101615
65
HIGH-PRESSURE OIL LINE845 MM
74
LINE HIGH PRESSURE LINE 1240 MM
77
LINE FROM CONNECTOR VIII TO CONNECTOR IX 1310 MM
80
LINE HIGH PRESSURE LINE 610 MM
83
LINE FROM CONNECTOR XI TO CONNECTOR XII 870 MM
86
T-FITTING LINE CONNECTIONS
89
LINE FROM T-FITTING TO TEST CONNECTION 200 MM
92
LINE HIGH PRESSURE LINE 2020 MM,104603
95
SCREW-IN FITTING , Replaced By: N003901015005
95
FITTING AT STEERING GEAR
98
HOSE LOW PRESSURE
101
LINE HOSE TO CONNECTOR XII
104
LINE LOW PRESSURE LINES 1238 MM
113
LOW-PRESSURE OIL LINE LOW PRESSURE 1040 MM
116
LINE LOW PRESSURE LINES
119
LINE LOW-PRESSURE LINE
122
LOW-PRESSURE OIL LINE LOW PRESSURE
122
LINE LOW PRESSURE LINES 68-69,098827
131
NUT LINE CONNECTIONS AL 15
131
UNION NUTAL22
131
UNION NUT LINE CONNECTION
131
UNION NUT LINE CONNECTION, Replaced By: N000000006243
134
CUTTING RINGBL22, Replaced By: A0019970317
134
GLAND , Replaced By: A0019901267
134
GLAND LINE CONNECTION
134
GLANDBL22
143
CONNECTION FITTING ENGINE AIR COMPRESSOR,CONNECTION: "15"
224
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM
224
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 18/15 MM
224
CLAMP OIL DIPSTICK GUIDE TUBE TO BRACKET
224
CLAMP SUCTION/DELIVERY/RETURN LINES 12/15MM
224
CLAMP LINE MOUNTING 15-18 MM,V 207570
224
CLAMP
224
MOUNTING CLAMP22/15
224
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
224
CLAMP HOSE TO PIPE LINE
224
MOUNTING CLAMP28/15
224
CLAMP
224
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
224
CLAMP22/15, Replaced By: A0019951442
224
CLAMP28/15, Replaced By: A0019951842
224
CLAMP SUCTION/DELIVERY/RETURN LINES 15/15 MM, Replaced By: A0019950642
224
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
224
CLAMP BRAKE HOSE BRACKET
224
CLAMP PIPE ON FAN SHROUD
224
CLAMP DELIVERY AND SUCTION LINES TO FRAME
224
CLAMP DELIVERY AND SUCTION LINES TO FRAME, Replaced By: N916016022203
224
CLAMP FRAME MOUNTED CABLE HARNESS AND BATTERY CABLE TO BRACKET
224
MOUNTING CLAMP MOUNTING USED FOR COMPRESSED AIR LINES RSGU 20/15
224
CLAMP LINE MOUNTING
227
CLAMP COMPRESSED AIR LINE TO TRANSMISSION COVER 25/15
227
SCREW BRACKET AND CLAMP M6X20
227
MOUNTING CLAMP SUCTION/DELIVERY/RETURN LINES 25/15 MM
227
HEXALOBULAR BOLT GROUND CABLE TO GENERATOR M6X20
227
HEXALOBULAR BOLT LINE MOUNTING M6 X 25
230
NUT LEVER TO THROTTLE VALVE SHAFT TO 366 140 02 32
230
NUT BRACKET TO STOP
999
LINE ,104461
999
LINE ,104461
999
LINE DELIVERY LINE TO STEERING GEAR 1129.7 MM,104604
