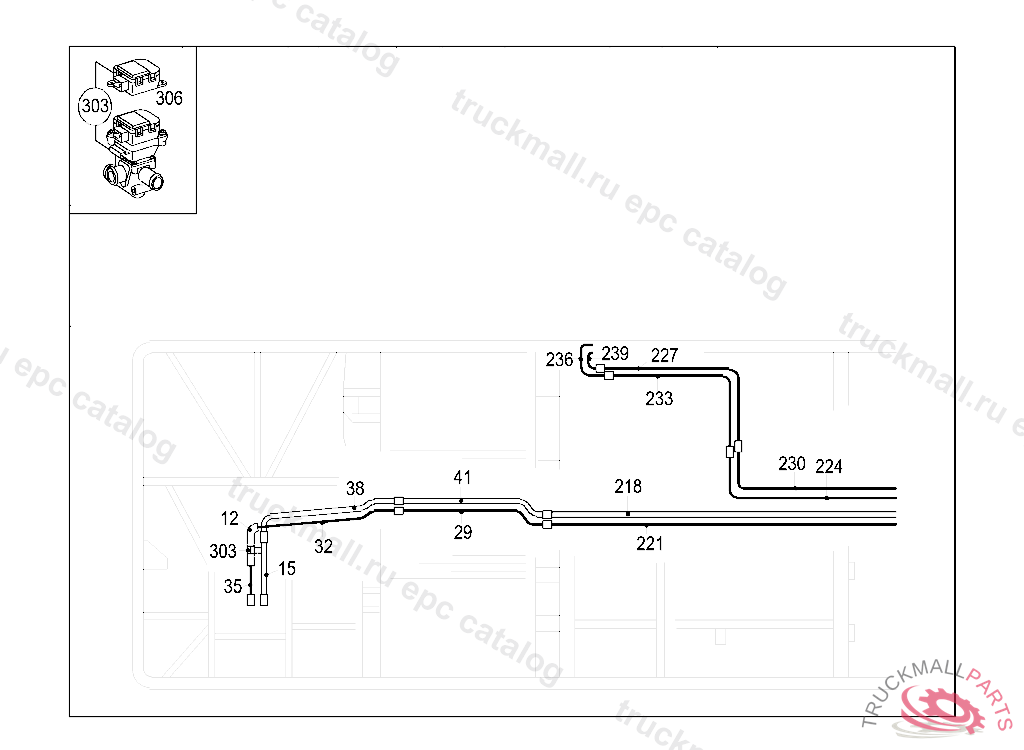

Поз.
Артикул
Описание
12
HOSE , THE OLD PART MUST NO LONGER BE INSTALLED IN THIS PLACE, Replaced By: A3058321223
12
HOSE FEED TO FRONT END HEATER UNIT 22 X 30 MM120°
12
HOSE CONNECTION TO HEATER UNIT 18 X 27 MM
15
HOSE PLASTIC PIPE
15
PIPE LINE RETURN 318 MM
29
PIPE LINE FEED 1145 MM
32
PIPE LINE FEED 1300 MM
35
PIPE LINE FEED 135 MM
38
PIPE LINE RETURN 1247 MM
41
PIPE LINE RETURN 1195 MM
218
PIPE LINE5480 MM
221
PIPE LINE5500 MM
224
PIPE LINE4075 MM
227
PIPE LINE
230
PIPE LINE4420 MM, TO BE ADAPTED DURING ASSEMBLY
233
PIPE LINE
236
PIPE LINE
239
PIPE LINE
303
VALVE THREE-WAY VALVE
303
VALVE 2/2 -WAY VALVE
303
VALVE , Replaced By: A0038305784
303
VALVE , Replaced By: A0038305684
303
VALVE 2/2 -WAY VALVE, Replaced By: A0048301884
303
VALVE THREE-WAY VALVE, Replaced By: A0048301684
306
ELECTRIC MOTOR , Replaced By: A0068207842
306
SERVO-D.C. W.GEARBOX
