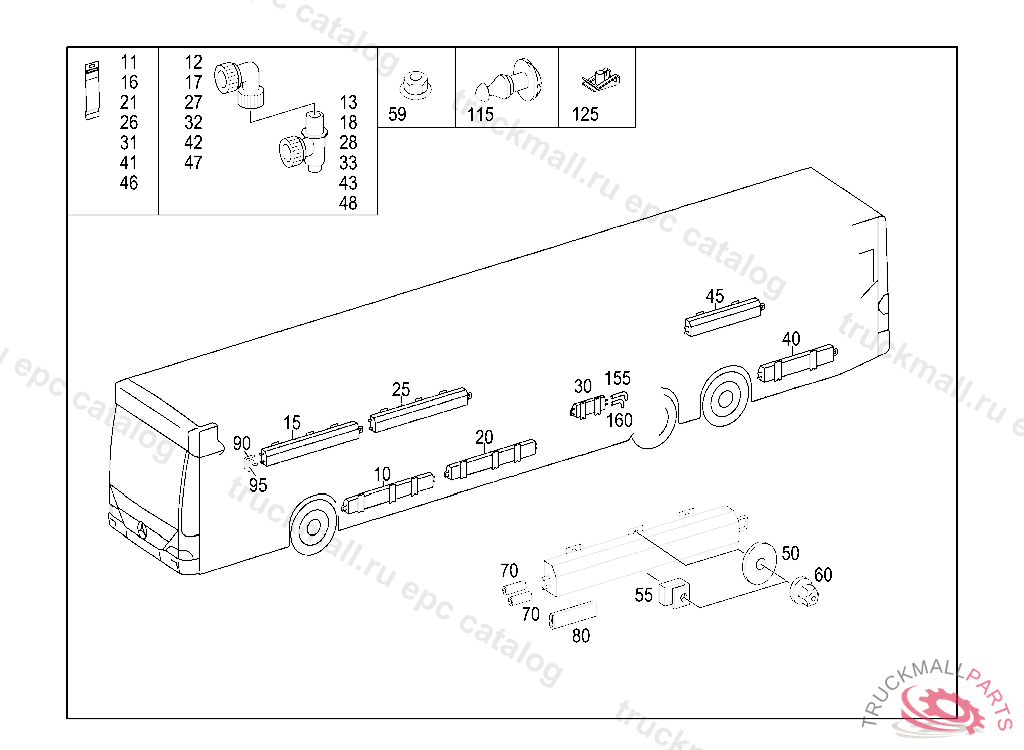

O 530 N3 LANG EURO 3 - 628.148 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
10
HEATER FRONT RIGHT 2200 MM
11
BRACKET
12
CONNECTION FITTING
12
PIPE SOCKET
13
PIPE SOCKET
15
HEATER FRONT RIGHT 1450MM
16
BRACKET
20
HEATER FRONT RIGHT 1450MM
21
BRACKET
25
HEATER CENTER LEFT,FRONT 1900MM
26
BRACKET
27
CONNECTION FITTING
27
PIPE SOCKET
28
PIPE SOCKET
30
HEATER REAR LEFT 1050MM
31
BRACKET
32
CONNECTION FITTING
32
PIPE SOCKET
33
PIPE SOCKET
40
HEATER REAR LEFT 1050MM
41
BRACKET
42
CONNECTION FITTING
42
PIPE SOCKET
43
PIPE SOCKET
90
PIPE LINE RETURN
95
PIPE LINE FEED, HEATER ON THE BEHIND FRONT AXLE
115
PINTO A 628 830 44 61 / A 628 830 46 61
