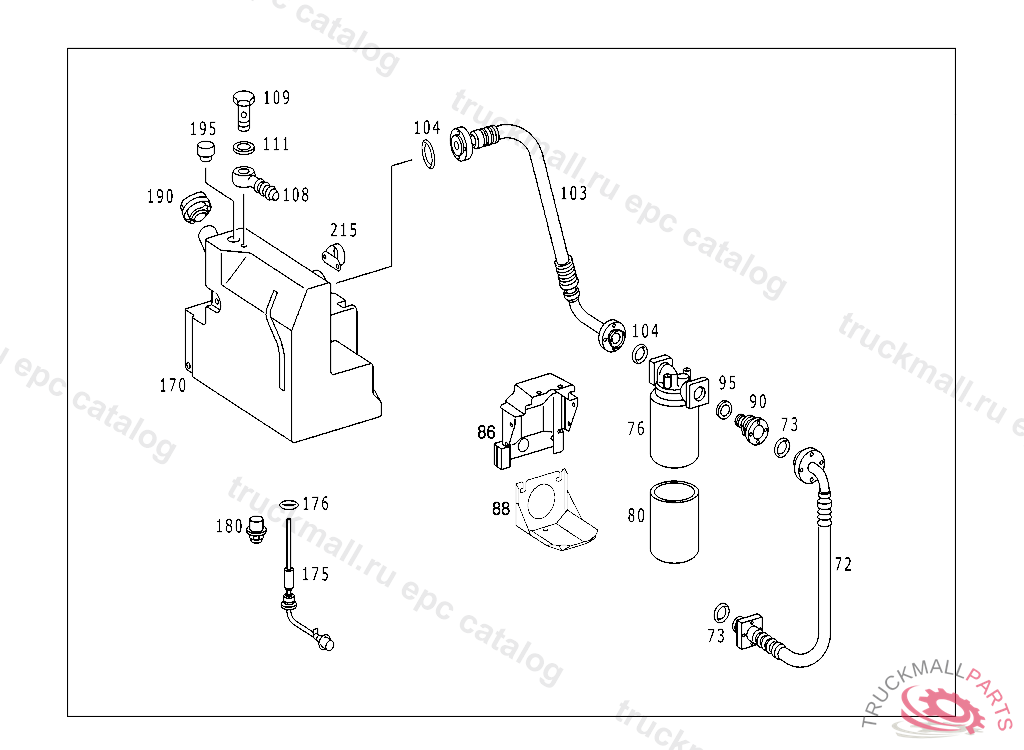

O 530 NUE EURO 3 SOLO 13 METER LANG - 628.447 - 50 RADIATOR
Поз.
Артикул
Описание
72
PIPE LINE OIL RETURN
73
SEAL BLEED CONNECTION TO RESERVOIR 32X2MM
76
FILTER HOUSING
80
FILTER ELEMENT HYDRAULIC FLUID
86
BRACKET ON FILTER
88
BRACKET FILTER BOWL
90
FLANGE ON FILTER
95
SEAL RING OIL COOLER CONNECTION
103
PIPE LINE OIL RETURN
104
SEAL BLEED CONNECTION TO RESERVOIR 32X2MM
108
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
109
BANJO BOLT. HOLLOW SCREW
111
SEAL RING CHECK VALVE,CONNECTION "1",4 704213
170
OIL TANK
175
SENDER UNIT OIL TANK
175
SENDER UNIT , Replaced By: A6285400017
176
SEAL RING25 X 2 MM
180
SCREW PLUG
190
CAP OIL REFILLING
195
FILTER OIL TANK
215
BRACKET OIL TANK
