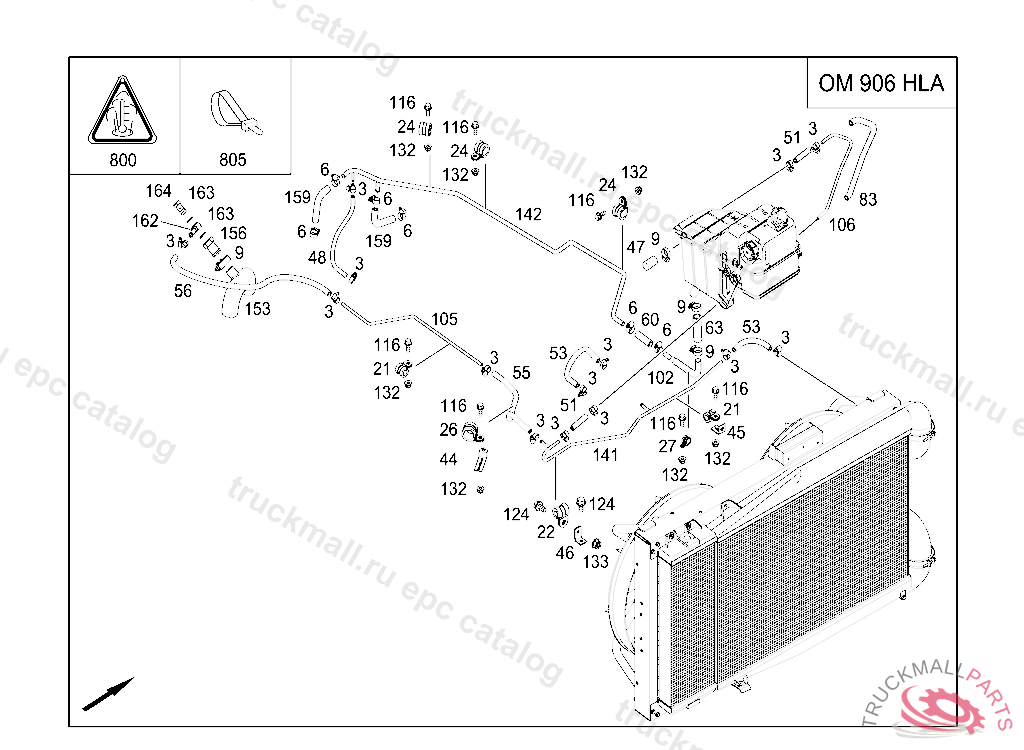

Поз.
Артикул
Описание
3
CLAMP HOSE TO FITTING 11 - 20 MM
6
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
9
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
21
CLAMP LINE MOUNTING 10/15, Replaced By: N000000007511
22
CLAMP10/20MM
24
CLAMP LINE MOUNTING
26
CLAMP CLAMP ON TRANSVERSE SHAFT MOUNTING, LINKAGE
27
CLAMP DELIVERY AND SUCTION LINES TO FRAME
44
BRACKET
45
BRACKET LINE MOUNTING
46
ANGLE
47
CAP EXPANSION TANK
48
HOSE8X15X350MM, TO BE ADAPTED DURING ASSEMBLY
48
HOSE , Replaced By: N000000000734
51
HOSE10X19X85MM, TO BE ADAPTED DURING ASSEMBLY
51
HOSE10 X 19 X 85 MM, TO BE ADAPTED DURING ASSEMBLY
53
HOSE COOLING WATER LINE 10X19X240
53
HOSE10X19X240MM, TO BE ADAPTED DURING ASSEMBLY
55
HOSE10X19X480MM, TO BE ADAPTED DURING ASSEMBLY
55
HOSE10X19X480MM, TO BE ADAPTED DURING ASSEMBLY, Replaced By: N000000004932
56
HOSE10 X 19 X 750 MM, TO BE ADAPTED DURING ASSEMBLY
56
HOSE10X19X750MM, TO BE ADAPTED DURING ASSEMBLY
60
HOSE15X24X80MM, TO BE ADAPTED DURING ASSEMBLY
60
HOSE , Replaced By: N900271015037
63
HOSE
63
HOSE22X31X100MM
83
INSULATING HOSE. HOSE INSULATION ID12 MM / AD20 MM, ORDER BY THE METER
102
COOLING WATER PIPE
105
COOLING WATER PIPE FROM BREATHER LINE TO EXPANSION TANK, TO BE ADAPTED DURING ASSEMBLY
106
COOLING WATER PIPE
116
HEXALOBULAR BOLT BRACKET TO BRACKET M8X16
116
SCREW , Replaced By: N914146006102
124
SCREW , Replaced By: N910143008000
132
NUT BRACKET TO FIRE WALL
133
NUT HORN TO BRACKET M8
141
COOLANT PIPE
142
VENT LINE
153
HOSE
156
VENTILATION NECK
159
HOSE RADIATOR/ENGINE/EXPANSION-TANK DE-AERATION LINES,213729
162
BANJO UNION. INTERMEDIATE PIECE FUEL HOSE TO FUEL LINE
163
SEAL RINGTO 000 553 03 05,000 553 18 05,
164
HOLLOW SCREW
800
INFORMATION LABEL TEMPERATURE, COOLANT EXPANSION RESERVOIR (KWA) SELF-ADHESIVE
800
INFORMATION LABEL TEMPERATURE, RIGID PVC
805
LOOM TIE
