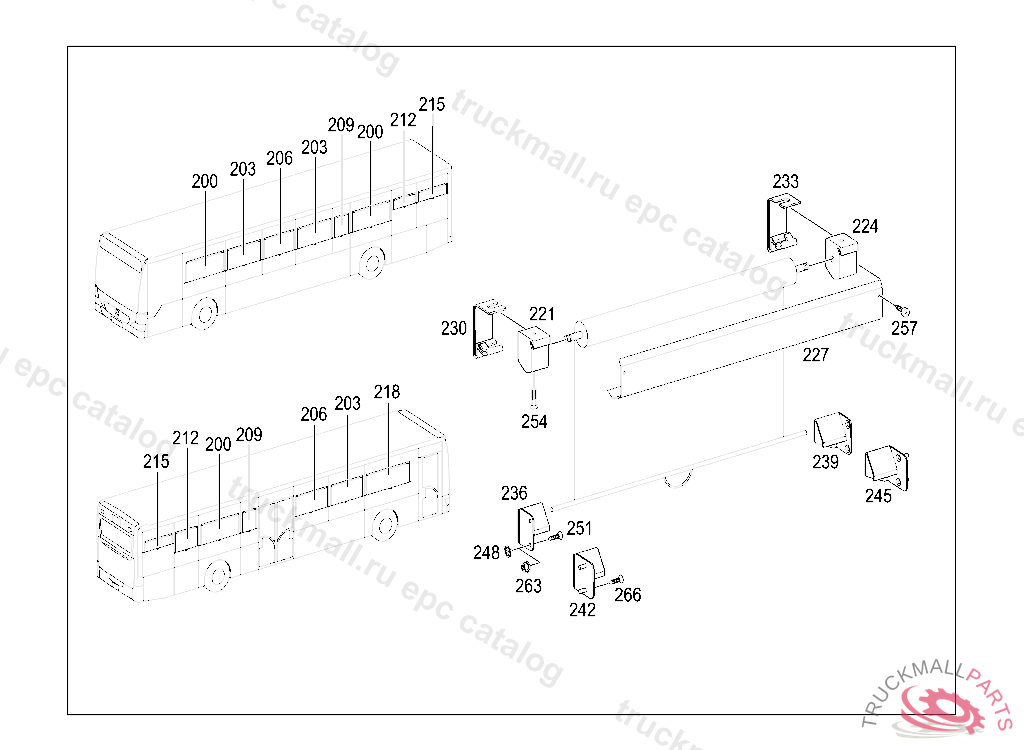

O530 - CITARO MUE 13M, 2-TUERER - 628.487 - 81 APPOINTMENTS
Поз.
Артикул
Описание
200
ROLLER BLINDL1470 MM
203
ROLLER BLINDL1262 MM
206
ROLLER BLINDL1148 MM
209
ROLLER BLINDL490 MM
212
ROLLER BLINDL780 MM
215
ROLLER BLINDL1070 MM
218
ROLLER BLINDL1824 MM
221
BEARING LEFT, .......INO.7E86I.......I.......I II
224
BEARING RIGHT, .......INO.7E86I.......I.......I II
227
METAL SECTION , ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
230
BRACKET
233
BRACKET
236
BRACKET
239
BRACKET
242
BRACKET
245
BRACKET
248
DRIVE-IN NUT SWITCH
251
SCREWM4X8
251
BOLT. SCREWM4X10 T20
254
SCREW INSIDE REARVIEW MIRROR TO COVERING M 5 X 25
257
SCREW2.9X16
263
NUT-AND-WASHER ASSEMBLY ANTENNA AT BRACKET M4
266
TAPPING SCREW4.2X38
