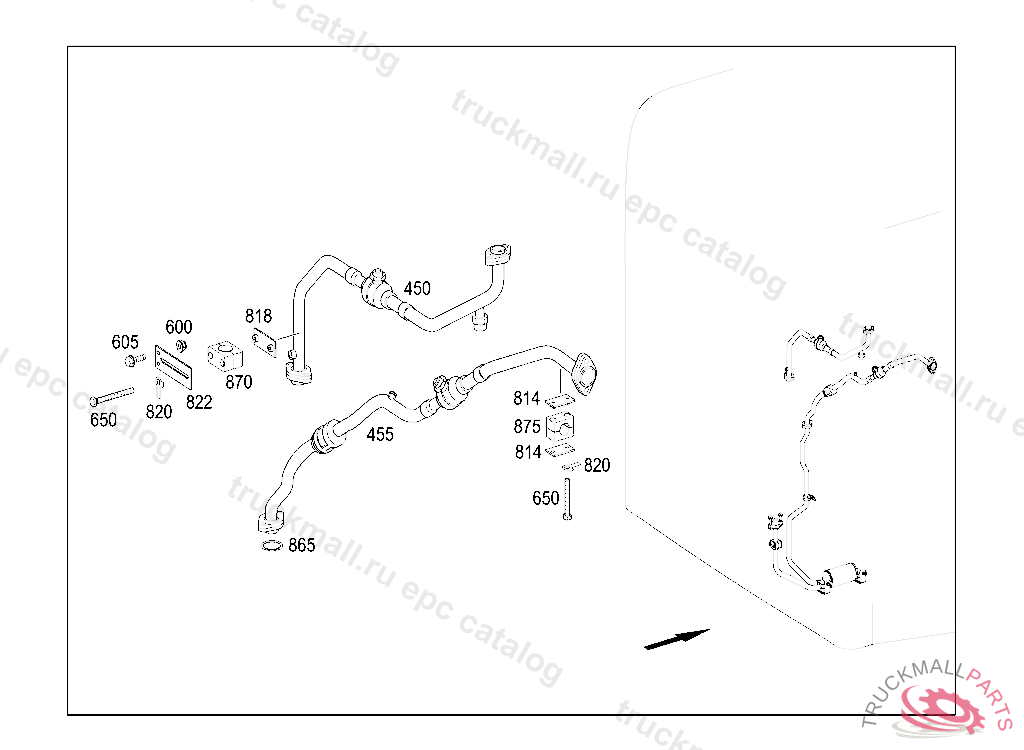

O530 - CITARO MUE 13M, 2-TUERER - 628.487 - 83 HEATING AND VENTILATION
Поз.
Артикул
Описание
450
PIPE LINE
455
PIPE LINE
600
NUT BRACKET TO FIRE WALL
605
SCREW BRACKET AND CLAMP M6X20
650
HEXAGON HEAD BOLTM6X60
650
SCREW. HEXAGON HEAD BOLT CONTROL MODULE TO SUPPORT PLATE M6X50
650
HEXAGON HEAD BOLTM6X80
814
TRAY
814
BACKPLATE MOUNTING FOR PRESSURE AND RETURN LINE TO A 000 553 17 86
818
PLATE30MM
818
TRAY
820
LOCK
822
BRACKET
865
GASKET34X42 MM
870
RUBBER MOUNTING MOUNTING FOR PRESSURE AND RETURN LINE 28MM
875
RUBBER MOUNTING
875
RUBBER MOUNTING LINE MOUNTING 22 MM
999
CABLE TIE LINE MOUNTING 375X8.4MM
999
ADHESIVE TAPE3X50MM, ORDER BY THE METER TO BE ADAPTED DURING ASSEMBLY
999
SCREW ROLLER ON SUPPORT
999
HEXAGON HEAD BOLT BRACKET TO DISTRIBUTOR
