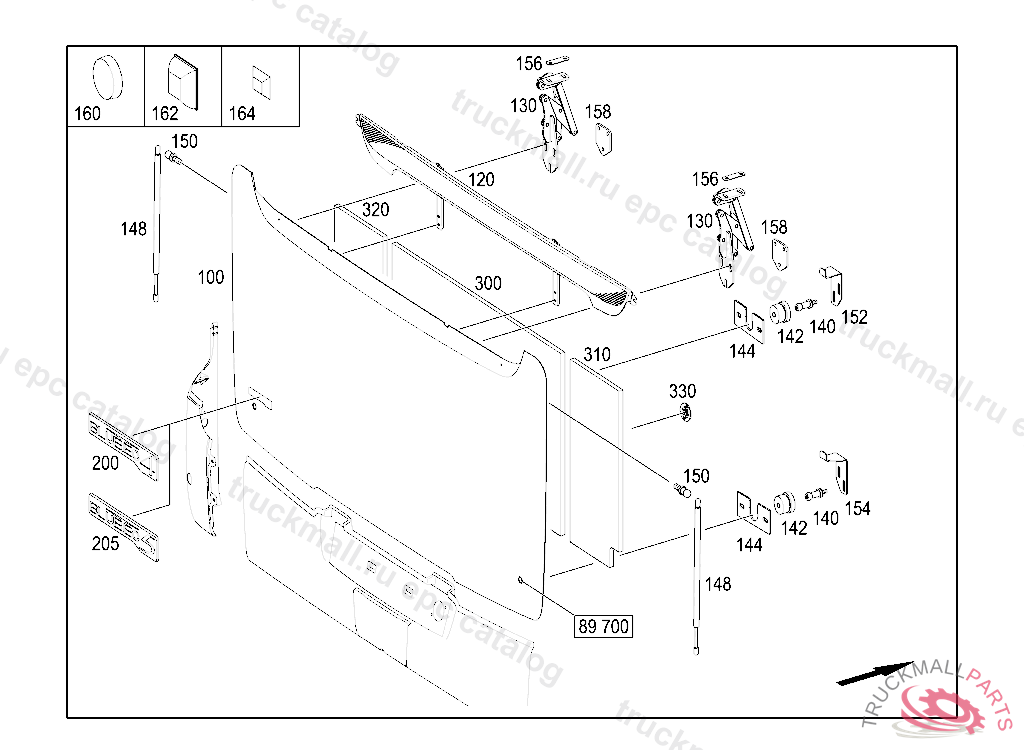

Поз.
Артикул
Описание
100
FLAP LESS LOCK
100
FLAP WITH LOCK
120
VENTILATION PART
130
HINGE
140
BALL PIN LEFT AND RIGHT
142
MOUNTING CLIP COVER ATTACHMENT, J 20140210 V 20140210
144
PLATE
148
GAS SPRING
150
BALL PIVOT ACCELERATOR PEDAL
152
BRACKET REAR LEFT
154
BRACKET REAR RIGHT
156
PLATE
158
PLATE
160
RUBBER BUFFER
162
RUBBER BUFFER FLAP TO LEVER, NO.8316INO.7C52INO.9051I I II I
164
RUBBER BUFFER TO GLASS PANE,BOTTOM
200
GUIDE SIGN AT DOOR BLUETEC 4,V 207570
205
GUIDE SIGN AT DOOR BLUETEC 5,V 207570
300
INSULATION
310
INSULATION REAR RIGHT
310
INSULATION REAR RIGHT
320
INSULATION REAR RIGHT
320
INSULATION REAR LEFT
330
CLAMPING DISC30X23X3,5X0,4MM
