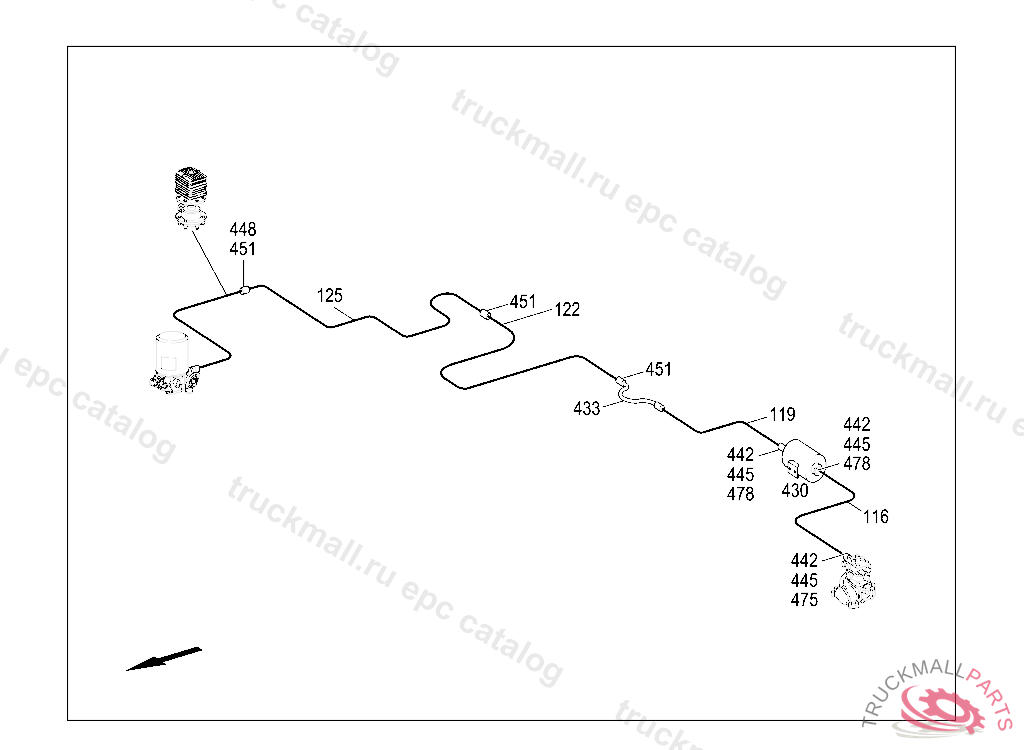

Поз.
Артикул
Описание
430
RESERVOIR
433
COMPRESSED AIR HOSE FROM HOSE TO MUFFLER
433
BRAKE HOSE FROM HOSE TO MUFFLER, Replaced By: A0014292635
442
CLAMP6/15, Replaced By: N000000007509
442
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
442
THRUST RING SUCTION LINE TO OIL PUMP
442
CLAMP MOUNTING USED FOR COMPRESSED AIR LINES 6/15
442
THRUST RING CHECK VALVE TO AIR RESERVOIR
445
SEAL RING LINE CONNECTION
445
O-RING CHECK VALVE TO AIR RESERVOIR
445
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
445
SEAL RING LINE CONNECTION
448
T-FITTING CYCLONE PRE-FILTER BOWL
451
FITTING BETWEEN THE LINES
475
FITTING
475
FITTING
478
SCREW-IN FITTING , Replaced By: A0029970271
478
SCREW-IN FITTING AIR COMPRESSOR,CONNECTION: "20"
999
SLEEVE LEAK LINE
