Поз.
Артикул
Описание

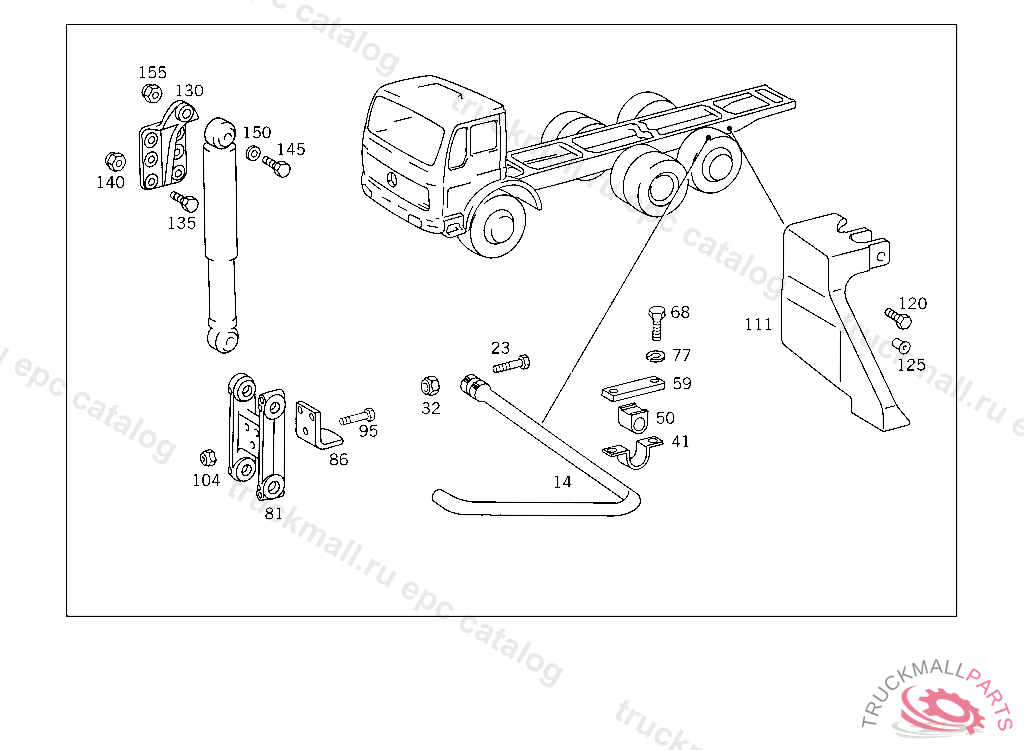

14
DAMPING SPRING TORSION BAR,REAR
23
SCREW EXHAUST PIPE AND THROTTLE HOUSING TO EXHAUST MANIFOLD
32
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
32
NUT , Replaced By: N910113012003
41
BEARING SHELL BOTTOM
50
BUSHING DAMPING SPRING
59
BEARING SHELL TOP
68
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
68
SCREW , Replaced By: N308676012026
77
LOCK WASHER FITTING TO BRACKET
81
SHACKLE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 552820, Replaced By: A6583250020
86
BRACKET DAMPING SPRING STOP
95
SCREW MOUNTING AND RAIL TO LEAF SPRING
104
NUT STRAP TO BRACKET
104
NUT , Replaced By: N910113010000
111
PLATE RIGHT
111
PLATE LEFT
120
SCREW APPARATUS SUPPORT TO FRAME
120
SCREW , Replaced By: A9429901304
125
RIVET FRAME TRUSS TO SIDE MEMBER
130
BRACKET SHOCK ABSORBER TO TOP BRACKET
135
SCREW CONSOLE TO SIDE MEMBER M 16X1.5X48
140
NUT COMBINATION CYLINDER TO BEARING BRACKET
140
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
145
SCREW SHOCK ABSORBER TO AIR-SPRING-BELLOWS SUPPORT,5 554755
150
WASHER HYDRAULIC CYLINDER TO SWIVEL ARM
155
NUT CROSS MEMBER TO REINFORCEMENT
155
NUT , Replaced By: N913004020003
999
RUBBER BUFFER SWINGING LINK
999
SHIM CONSOLE TO FRAME,123188
999
SPACER TUBE PISTON TO CONSOLE
999
PISTON TRAILING AXLE
999
PLATE AIR-SPRING-BELLOWS SUPPORT
999
RUBBER BUFFER TRAILING AXLE, UP TO IDENT NO.:5 318317, FROM IDENT NO. SEE MICROFICHE 420,435 GRUOP 32
999
SHIM TRAILING AXLE, UP TO IDENT NO.:5 318317, FROM IDENT NO. SEE MICROFICHE 420,435 GRUOP 32
999
CONSOLE LEFT SHOCK ABSORBER
999
CONSOLE RIGHT SHOCK ABSORBER
