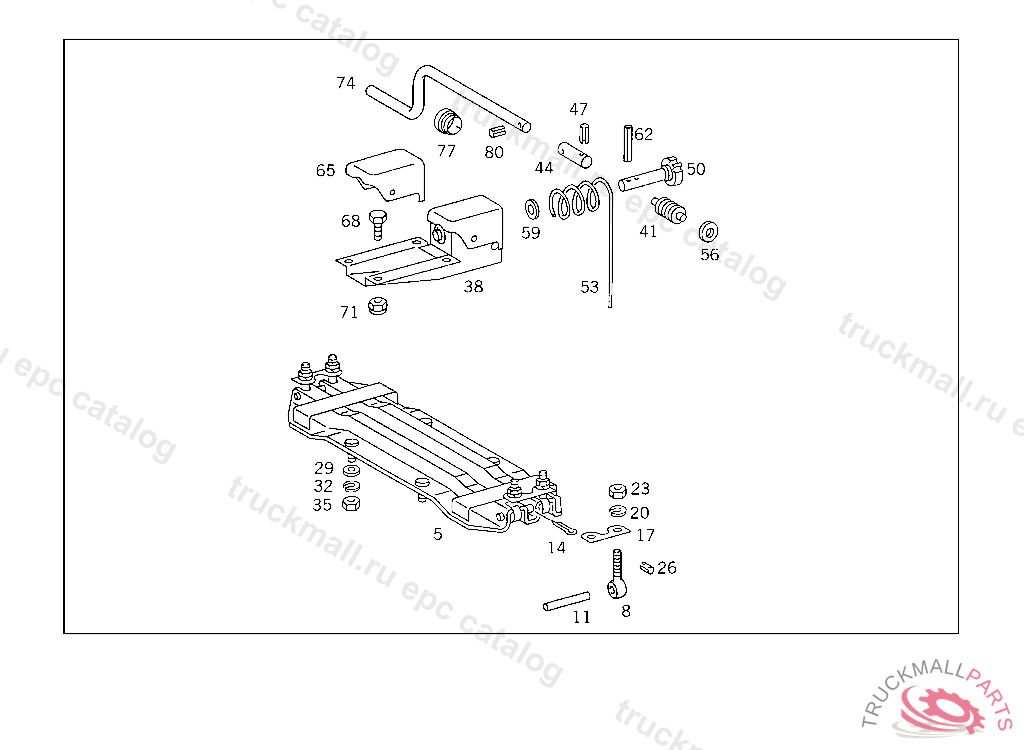

Поз.
Артикул
Описание
5
BRACKET SPARE WHEEL MOUNTING,K 058474
8
SCREW SPARE WHEEL CARRIER TO SIDE MEMBER
11
PIN AT BRACKET
14
COTTER PINROCKINGER TYP 260 G140
17
BASE BLOCK SPARE WHEEL CARRIER TO SIDE MEMBER
20
LOCK WASHERROCKINGER TYP 59 G140,59 G150
23
NUT SPARE WHEEL CARRIER TO SIDE MEMBER
23
NUT , Replaced By: N308673016001
26
CLAMPING SLEEVE BRACKET TO PEDAL BEARING BRACKET
29
WASHER SPARE WHEEL TO BRACKET
32
LOCK WASHER SPARE WHEEL TO BRACKET
35
NUT REAR SPRING TO REAR AXLE
35
NUT , Replaced By: N308674020000
35
NUT , Replaced By: N308673020002
38
SPARE WHEEL HOIST
41
WORM
44
BUSHING
47
CLAMPING SLEEVE CRANK TO BUSHING
50
STOP GEAR SPARE WHEEL HOIST
53
WIRE CABLE
53
WIRE CABLE. ROPE , ORDER BY THE METER, Replaced By: N083334008000
56
WASHER WORM AND RATCHET WHEEL TO BRACKET
59
WASHER WORM AND SHAFT TO BRACKET
62
CLAMPING SLEEVE , Replaced By: N308752008000
62
CLAMPING PIN BRACKET TO SUPPORT
65
COVER PLATE SPARE WHEEL HOIST
68
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
71
NUT STRAP TO BRACKET
71
NUT , Replaced By: N910113010000
74
CRANK SPARE WHEEL HOIST
77
BUSHING CRANK
80
CLAMPING SLEEVE CRANK TO BUSHING
