Поз.
Артикул
Описание

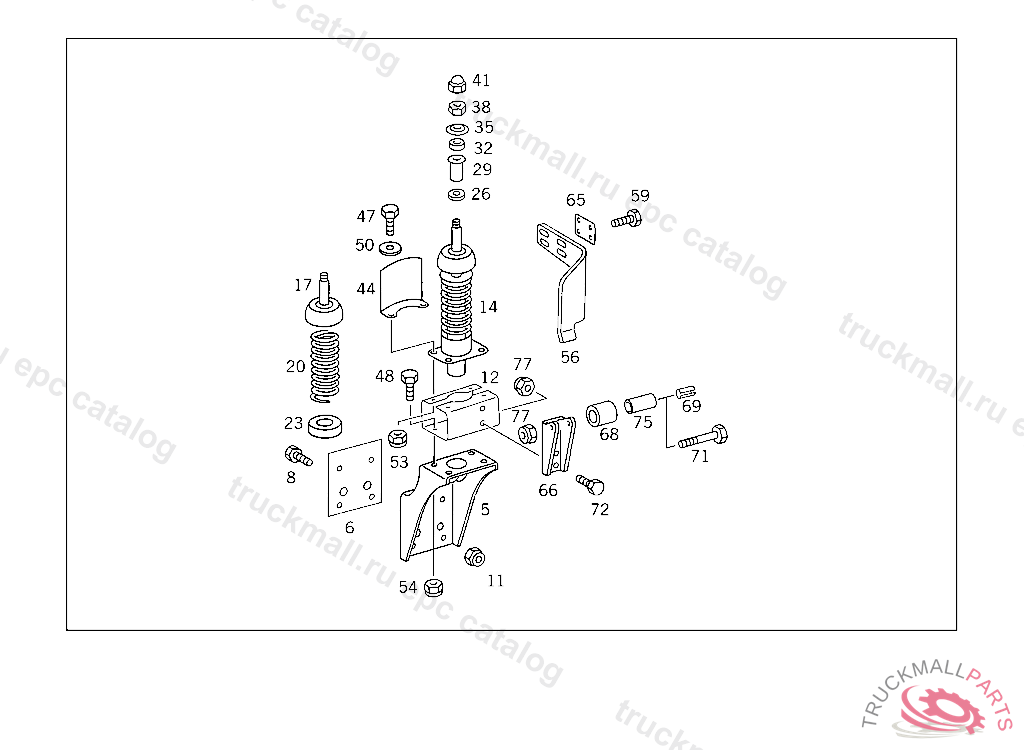

5
CONSOLE CAB SUSPENSION,REAR RIGHT
6
BASE CONSOLE TO SIDE MEMBER, NOT USED
8
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
8
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
8
SCREW , Replaced By: N308676014020
11
NUT BRACKET TO SIDE MEMBER
11
NUT , Replaced By: N910113014001
12
CLAMP VIBRATION ABSORBER
14
SHOCK ABSORBER (VIBRATION ABSORBER),CAB REAR SUSPENSION
14
SHOCK ABSORBER , Replaced By: A6208900119
17
RUBBER MOUNTINGTO 387 890 36 19
17
RUBBER MOUNTINGTO 620 890 02 19
20
SPRINGTO 620 890 01 19
20
SPRINGTO 620 890 00 19
23
BUFFERTO 620 890 02 19
26
WASHER COMBINATION CYLINDER TO SLACK ADJUSTER
26
WASHER , Replaced By: N000433015005
29
SPACER TUBE SHOCK ABSORBER MOUNTING
32
RUBBER RING SHOCK ABSORBER MOUNTING
35
WASHER SHOCK ABSORBER MOUNTING
38
NUT. HEXAGON NUT SHOCK ABSORBER MOUNTING
41
CAP NUT VIBRATION ABSORBER
44
COVER PLATE SHOCK ABSORBER
47
SCREW BRACKET TO CROSS CONNECTION STRUT
48
SCREW BRACKET TO BRACKET
48
SCREW , Replaced By: N910142008001
50
WASHER BRACKET TO LEFT SIDE MEMBER
53
NUT STRAP TO BRACKET
54
NUT STRAP TO BRACKET
56
GUIDE CAB, RIGHT
56
GUIDE CAB,LEFT
59
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
65
SHIM GUIDE TO CAB
66
BRACKET LATERAL GUIDE OF CAB, NOT USED
68
BUSHING LATERAL GUIDE OF CAB
69
CLAMPING SLEEVE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
72
SCREW BRACKET TO PROPELLER SHAFT BEARING HOUSING M 12X30
75
SPACER TUBE LEFT AND RIGHT BUSHINGS TO FENDER BRACKETS
77
NUT STRAP TO SUPPORT
