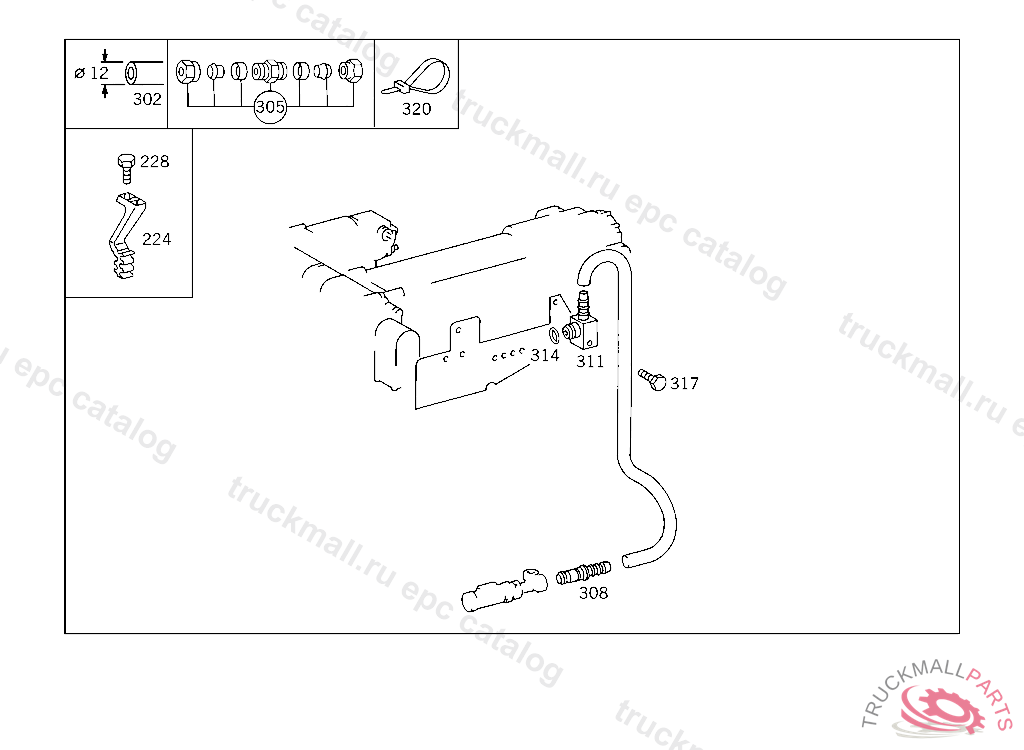

Поз.
Артикул
Описание
224
BRACKET LINE MOUNTING
228
SCREW COVER PLATE TO COVER PLATE M 6 X 12
228
SCREW , Replaced By: N304017006018
302
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
302
HOSE , Replaced By: A0009872827
305
FITTING (PARTS KIT),LINE RUPTURE
308
CONNECTOR HOSE WIDTH, 9 MM,TO M 22
311
CONNECTOR DISTRIBUTOR OUTPUT, COMPRESSED AIR LINE PLUG CONNECTION
314
SEAL RING CONNECTOR 11.8X2 MM
314
SEAL RING , Replaced By: A0229973948
317
SCREW CONNECTOR TO TRANSMISSION
320
LOOM TIE LINE MOUNTING 280 MM
320
LOOM TIE LINE MOUNTING
999
CONNECTOR DISTRIBUTOR TO FRAME
999
SEAL RING LEVER BEARING
999
CONNECTOR , Replaced By: A0019903978
999
BRACKET
999
WASHER , Replaced By: N000125008443
999
WASHER EXHAUST MUFFLER TO STRAP
999
SCREW , Replaced By: N304017008016
999
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
999
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
