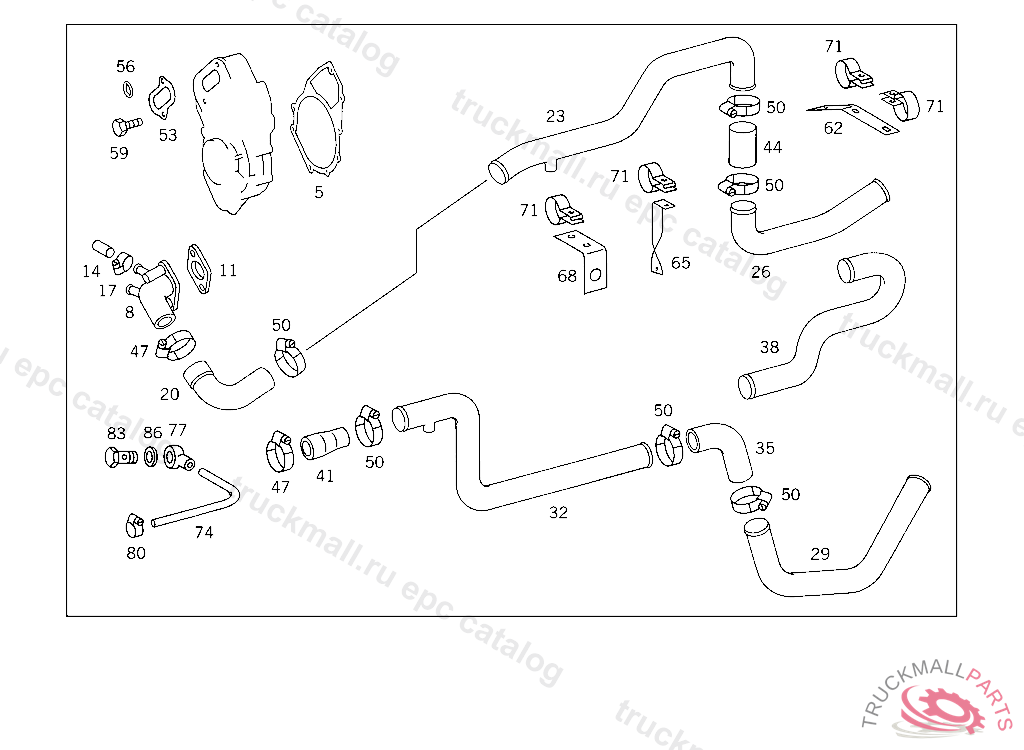

Поз.
Артикул
Описание
5
GASKET WATER PUMP
8
CONNECTOR FROM ENGINE TO EXPANSION TANK
11
GASKET. SEAL DE-AERATION PIPE TO ENGINE
14
LOCKING CAP INTERMEDIATE PIPE TO PARTICLE FILTER
17
CLAMP , Replaced By: N000000000667
17
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
20
HOSE FEED
23
LINE FEED, FROM ENGINE TO HEAT EXCHANGER
26
COOLING WATER LINE FEED LINE TO HEAT EXCHANGER
29
COOLING WATER LINE FROM HEAT EXCHANGER TO ENGINE,RETURN
32
LINE RETURN
35
HOSE FEED AND RETURN LINE CONNECTION
38
LINE RETURN, FROM HOSE CONNECTION TO ENGINE
41
HOSE FEED AND RETURN LINE CONNECTION
44
HOSE FEED AND RETURN LINE CONNECTION, LENGTH AVAILABLE 1000 MM
47
CLAMP , Replaced By: N000000000673
47
CLAMP HOSE TO RETARDER 60-80X13 MM
50
CLAMP HOSE FASTENING 50-70X13 MM
50
CLAMP , Replaced By: N000000000672
53
GASKET OUTLET TO ENGINE
56
SEAL RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0209971148
59
HEXALOBULAR BOLT TRAILER PLUG SOCKET TO SUPPORT BEHIND CAB
59
SCREW , Replaced By: N910142008007
62
BRACKET OIL LINE MOUNTING
65
BRACKET FEED LINE TO THERMOSTAT, TO BE ADAPTED DURING ASSEMBLY
68
BRACKET COOLING WATER LINE TO TRANSMISSION
71
CLAMP LINE MOUNTING
71
CLAMP , Replaced By: A9424310043
71
CLAMP , Replaced By: N000000001641
74
HOSE DE-AERATION LINE, ORDER BY THE METER, Replaced By: A9575011982
74
HOSE DE-AERATION LINE, ORDER BY THE METER
77
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
80
CLAMP , Replaced By: A0059970190
80
CLAMP , Replaced By: A1409950036
80
HOSE CLAMP LINE MOUNTING
83
HOLLOW SCREW HEATING CONNECTION
83
HOLLOW SCREW LINE CONNECTION
86
SEAL RING LINE CONNECTION
999
COOLING WATER LINE FEED, FROM ENGINE TO HEAT EXCHANGER
999
COOLING WATER LINE FROM HEAT EXCHANGER TO ENGINE,RETURN
999
COOLING WATER LINE RETURN, FROM HOSE CONNECTION TO ENGINE
999
BRACKET COOLING WATER LINE TO TRANSMISSION
999
BRACKET COOLING WATER LINE TO ENGINE
999
BRACKET TAIL PIPE
999
SPACER TUBE
999
BRACKET FUEL LINES TO TRANSMISSION
999
OUTLET OUTLET TO ENGINE
999
WASHER
