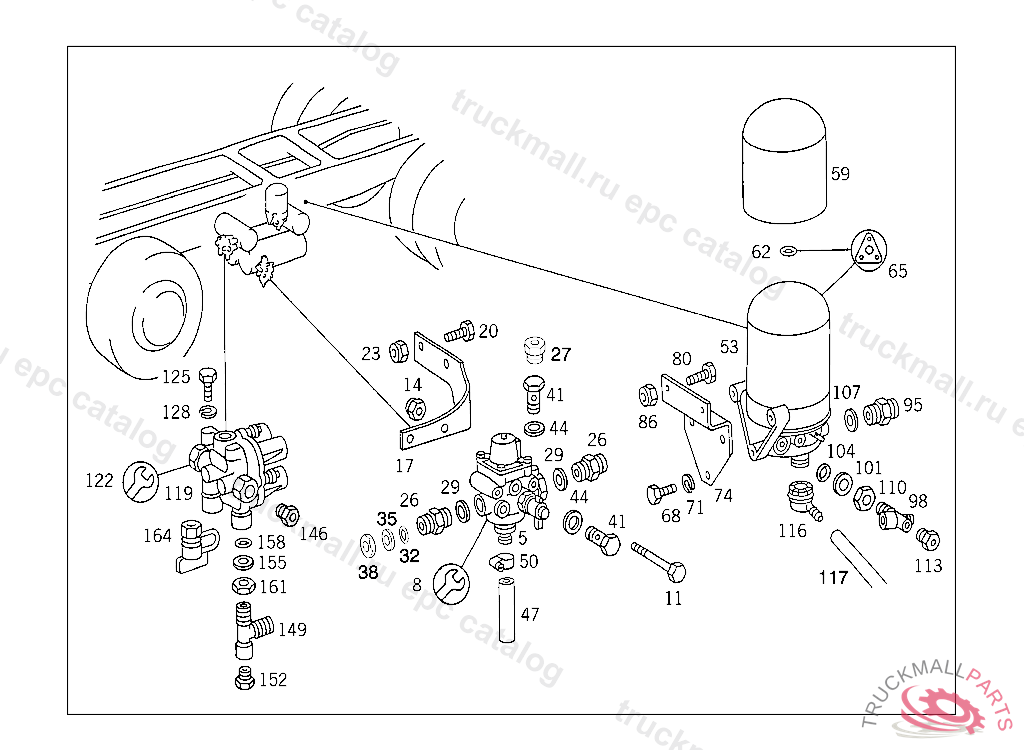

Поз.
Артикул
Описание
5
PRESSURE REGULATORBOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
5
PRESSURE REGULATORKNORR
5
PRESSURE REGULATORWABCO
8
REPAIR KIT PRESSURE REGULATOR KNORR
8
REPAIR KIT PRESSURE REGULATOR WABCO
8
REPAIR KIT DIAPHRAGM PART BOSCH,209
8
REPAIR KIT SEAL RING BOSCH,209
11
SCREW VALVE TO CAB M 8X85
14
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
14
NUT , Replaced By: N913004008001
14
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
17
BRACKET PRESSURE REGULATOR
20
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
23
NUT STRAP TO BRACKET
23
NUT , Replaced By: N910113010000
26
ELBOW FITTING ,5 433281
26
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
27
CONNECTOR PRESSURE REGULATOR,CONNECTION: "40"
29
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
32
O-RING CHECK VALVE TO AIR RESERVOIR
35
THRUST RING CHECK VALVE TO AIR RESERVOIR
35
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
38
NUT CHECK VALVE TO AIR RESERVOIR
41
HOLLOW SCREW HEATING CONNECTION
44
SEAL RING LINE CONNECTION
47
HOSE PRESSURE REGULATOR,CONNECTION: "30", ORDER BY THE METER
50
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
50
CLAMP , Replaced By: N000000000667
53
AIR DEHYDRATORWABCO,5 9375855 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0014312215, +001A0004292139
53
AIR DEHYDRATORKNORR,5 937586, Replaced By: A0024317015
53
AIR DEHYDRATORWABCO,5 937586 PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
53
AIR DRIERKNORR,5 937586
53
AIR DEHYDRATORBOSCH,5 937586
59
AIR CLEANER COMPLETE TO BOSCH,KNORR
59
AIR CLEANER COMPLETE KNECHT:TO BOSCH,KNORR
62
SEAL RINGWABCO
65
GASKET KITWABCO
65
GASKET KITBOSCH
65
GASKET KIT SEAL RINGS KNORR,5 937586
65
GASKET KITKNORR
74
BRACKET AIR DEHYDRATOR,5 433280
80
SCREW SUPPORT TO CROSS MEMBER M 10X28
86
NUT , Replaced By: N910113010000
86
NUT STRAP TO BRACKET
95
FITTING AIR DEHYDRATOR,CONNECTION: "10",5 433280
98
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21"
98
CROSS FITTING AIR DEHYDRATOR,CONNECTION: "21", 3XM 22X1.5/1XM 16X1.5
101
THRUST RING CHECK VALVE TO AIR RESERVOIR
101
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
104
O-RING CHECK VALVE TO AIR RESERVOIR
107
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
110
NUT CHECK VALVE TO AIR RESERVOIR
113
SCREW. UNION SCREW , Replaced By: A0009973734
113
SCREW. UNION SCREW LINE CONNECTION
113
SCREW. UNION SCREW LINE CONNECTION
116
CONNECTOR 75 DEGREES
116
CONNECTOR 90 DEG. OFFSET
116
CONNECTOR BLEEDING
116
CONNECTOR BRAKE POWER REGULATOR,CONNECTION: "30"
117
HOSE , Replaced By: A0009872927
117
PLASTIC PIPE FUEL LINE 16X2 MM, ORDER BY THE METER
119
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
119
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) GRAU, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
119
VALVE , Replaced By: A0034314706
119
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) BOSCH, PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART, Replaced By: A0034314106
119
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE), PART IS ONLY OR ALSO SUPPLIED AS RECONDITIONED PART
119
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
122
REPAIR KIT , Replaced By: A0004304706
122
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
122
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE GRAU,000 2
122
GASKET KIT FOUR-CIRCUIT PROTECTIVE VALVE
125
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
125
SCREW , Replaced By: N304017008016
128
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
146
SCREW. UNION SCREW LINE CONNECTION
164
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
164
VALVE EMERGENCY RELEASE VALVE,CONNECTION: "23"
