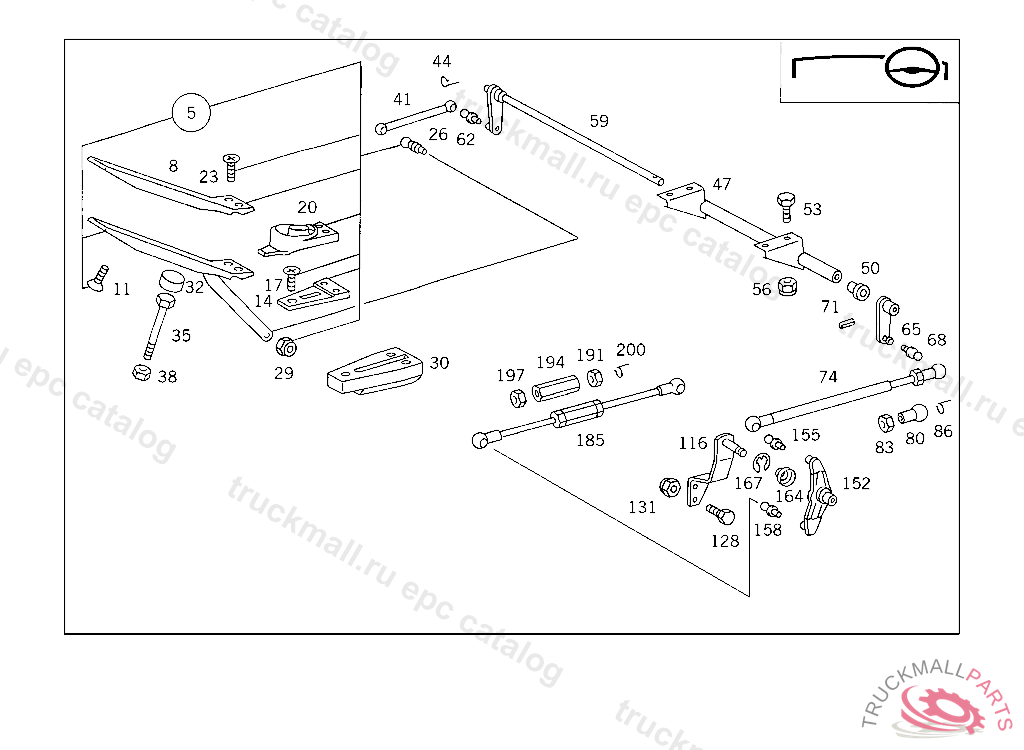

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL (PARTS KIT), RANGE OF DELIVERY INCLUDES: 1X 655 301 00 93, 3X 000965 006077
8
PAD ACCELERATOR PEDAL
11
SCREW ACCELERATOR PEDAL
14
SHIM ACCELERATOR PEDAL
17
SCREW ACCELERATOR PEDAL TO CAB M 6X20
20
BOOT ACCELERATOR PEDAL
23
SCREW ACCELERATOR PEDAL TO CAB M 6X25
26
BALL PIVOT LOAD SENSOR
29
NUT , Replaced By: N913004006001
29
NUT PUMP TO BRACKET
30
GUIDE RAIL ACCELERATOR PEDAL TO FLOOR PLATE
32
STOP ACCELERATOR PEDAL
35
SCREW VALVE TO BRACKET, Replaced By: N304014008002
35
SCREW VALVE TO BRACKET
38
NUT
41
BALL SOCKET ROD TO ACCELERATOR PEDAL
44
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
47
BEARING TUBE CONTROL SHAFT
50
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
53
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
53
SCREW , Replaced By: N304017008016
56
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
56
NUT , Replaced By: N913004008001
56
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
59
SHAFT (CONTROL SHAFT)
62
BALL PIVOT
65
LEVER (CONTROL LEVER)
68
BALL PIVOT
71
CLAMPING SLEEVE , Replaced By: N308752004001
71
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
74
ROD FROM CONTROL SHAFT BEARING TO INTERMEDIATE LEVER
74
ROD FROM ACCELERATOR PEDAL TO INTERMEDIATE LEVER
80
BALL SOCKET PULL ROD TO LEVER
83
NUT BALL PIVOT TO LEVER
86
CIRCLIP. SECURING CLIP BALL SOCKET TO ROD
116
BEARING BRACKET INTERMEDIATE BEARING
128
SCREW , Replaced By: N304017008034
128
SCREW BRACKET TO CROSS CONNECTION STRUT
131
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
131
NUT , Replaced By: N913004008001
131
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
152
LEVER (INTERMEDIATE LEVER)
155
BALL STUD. BALL PIVOT TOP B10X4,5 MM
158
BALL PIVOT BOTTOM B13X5 MM
164
COVERING INTERMEDIATE BEARING
167
LOCK PLATE INTERMEDIATE BEARING
185
ROD FROM CONTROL SHAFT BEARING TO ENGINE SHAFT
191
NUT
194
NUT TURNBUCKLE
197
NUT BALL SOCKET TO ROD
200
SECURING CLIP. CIRCLIP
