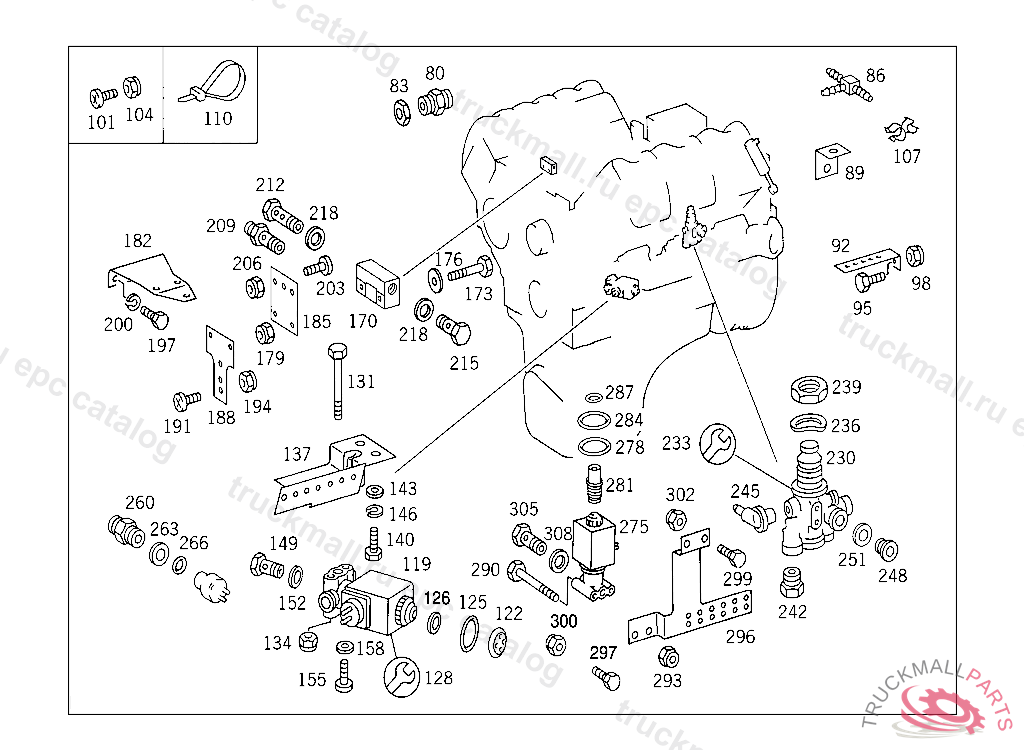

Поз.
Артикул
Описание
80
FITTING FROM 3/2-WAY VALVE TO PRESSURE CONTROL VALVE
83
NUT LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
86
T-FITTING EXHAUST BRAKE LINE CONNECTION
107
LOOM TIE BRAKE LINE MOUNTING
110
LOOM TIE LINE MOUNTING 280 MM
110
LOOM TIE LINE MOUNTING
119
VALVE (3/2-WAY SOLENOID VALVE) EKS
119
VALVE , Replaced By: A0049975736
122
PROTECTIVE CAPWABCO
125
SEAL RINGWABCO
125
SEAL RINGBOSCH
126
SEAL RINGBOSCH
128
GASKET KITKNORR
131
SCREW VALVE TO BRACKET
131
SCREW VALVE TO BRACKET, Replaced By: N304014008002
134
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
134
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
134
NUT , Replaced By: N913004008001
137
BRACKET 3/2-WAY SOLENOID VALVE
137
BRACKET 3/2-WAY SOLENOID VALVE
140
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
140
SCREW , Replaced By: N304017008016
143
WASHER EXHAUST MUFFLER TO STRAP
143
WASHER , Replaced By: N000125008443
146
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
149
HOLLOW SCREW HEATING CONNECTION
152
SEAL RING LINE CONNECTION
155
SCREW TO PLUG THE FREE CONNECTIONS
158
SEAL RINGBOSCH
170
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
173
SCREW TWO-WAY VALVE TO BRACKET
179
NUT TWO-WAY VALVE TO BRACKET
185
BRACKET 3/2-WAY SOLENOID VALVE
203
SCREW OIL TANK TO BRACKET
206
NUT PUMP TO BRACKET
206
NUT , Replaced By: N913004006001
212
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
215
HOLLOW SCREW FUEL LINE TO FEED PUMP
215
HOLLOW SCREW , Replaced By: N915036010108
218
SEAL RING FUEL LINE TO FEED PUMP
230
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
230
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
233
REPAIR KIT 3/2-WAY VALVE WABCO
236
SPRING WASHER AT CAB FLOOR
239
NUT SUCTION LINE TO OIL PUMP
242
SCREW. UNION SCREW LINE CONNECTION
242
SCREW. UNION SCREW , Replaced By: A0009973734
245
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
245
BREATHER , Replaced By: A3933280065
248
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
248
SCREW PLUG , Replaced By: N000908012009
251
SEAL RING LINE CONNECTION
260
FITTING CONNECTION TO STOP LIGHT SWITCH
260
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
263
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
263
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
266
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
999
SHIM 3/2-WAY SOLENOID VALVE
