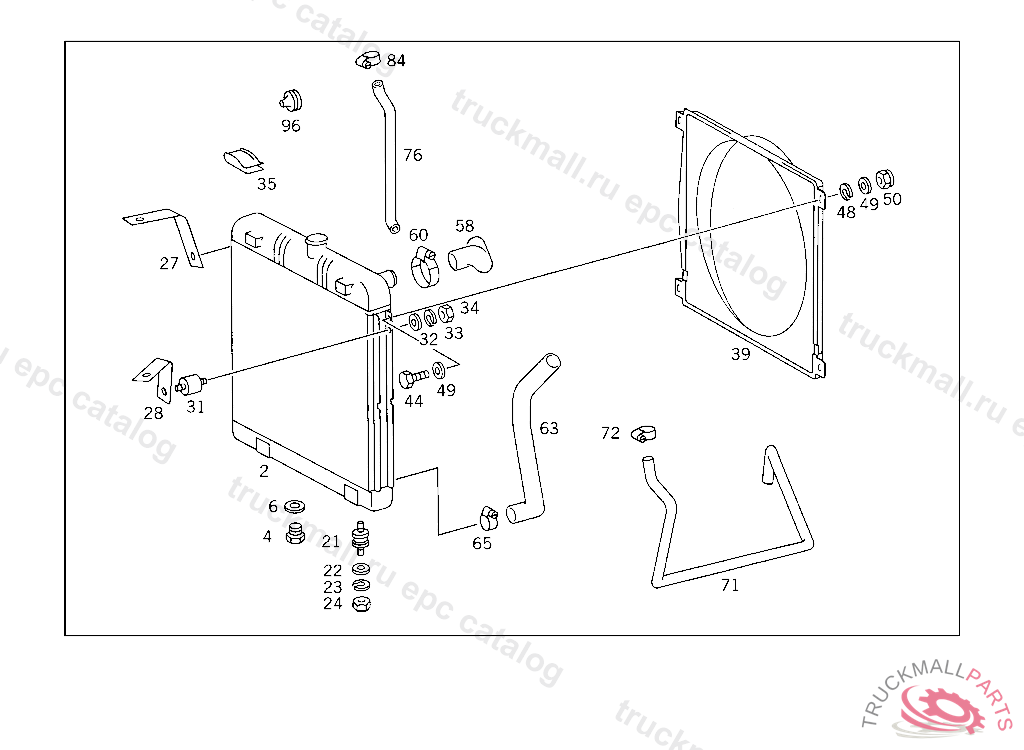

Поз.
Артикул
Описание
4
SCREW PLUG WATER DRAIN
6
SEAL RING FUEL LINE TO FEED PUMP
21
RUBBER BUFFER BRACKET TO SUPPORT
22
WASHER , Replaced By: N000125010532
22
WASHER RADIATOR TO RUBBER MOUNTING
23
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
24
NUT BRACKET TO SUPPORT AND TO END PIECE
31
RUBBER BUFFER COVERING TO FRAME
32
WASHER , Replaced By: N000125008443
32
WASHER EXHAUST MUFFLER TO STRAP
33
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
34
NUT
60
CLAMP
72
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
72
CLAMP , Replaced By: N000000000667
96
GROMMETD6/32
999
HOSE , EXHAUST STOCK OF OLD PARTS FROM CHASSIS 373688-514819, Replaced By: A3095062735
999
HOSE , Replaced By: A3095061235
999
HOSE , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 015699-064721 ALSO INSTALLED ON 015539,015594,015609,015697., Replaced By: A3095011382
999
FAN HOUSING , FIRST EXHAUST STOCK OF OLD PARTS FROM IDENT NO. 015699-064721 ALSO INSTALLED ON 015539,015594,015609,015697., Replaced By: A3095051555
999
RADIATOR , Replaced By: A3095001702
999
RUBBER BUFFER EXHAUST MUFFLER
999
RUBBER BUFFER , Replaced By: A0019875240
999
RUBBER SECTION , Replaced By: A0009870772
999
GASKET O.D., 37 MM
999
RADIATOR FILLER CAP. RADIATOR CAP
