Поз.
Артикул
Описание

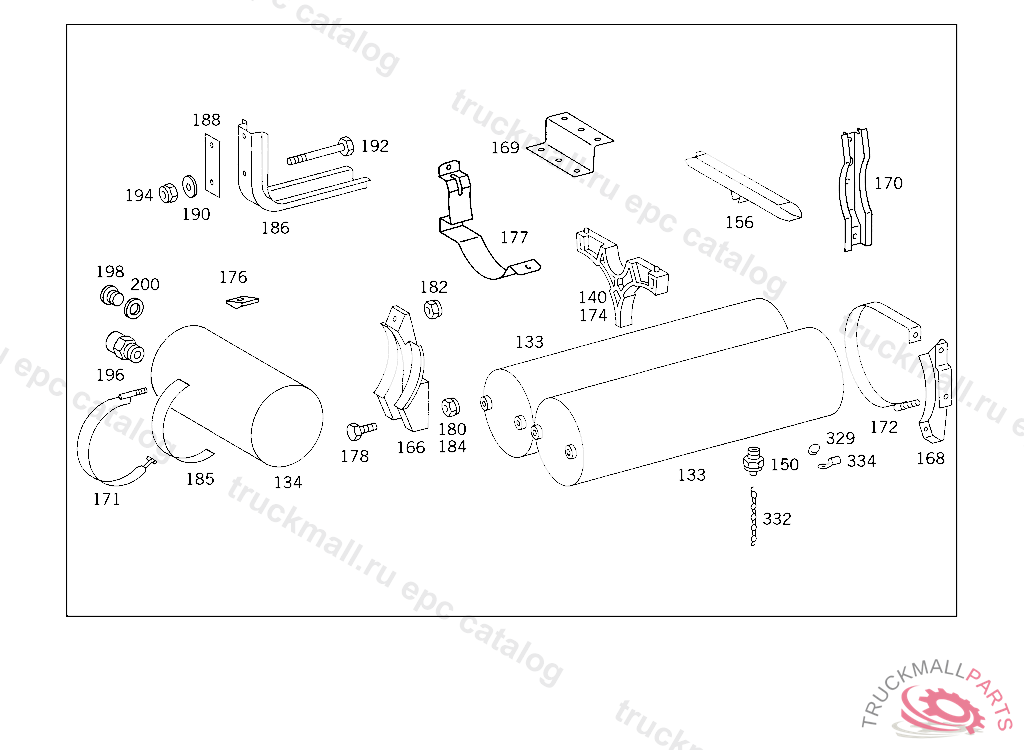

133
RESERVOIR40L,276 MM,8.5 BAR
133
RESERVOIR40L,246 MM,8.5 BAR
133
RESERVOIR ,5 934167, Replaced By: A0034322501, +001A6554320073
133
RESERVOIR , Replaced By: A0034322301
133
RESERVOIR ,5 934167
133
RESERVOIR40L, 246 MM,5 934168
134
RESERVOIR10L,206 MM,8.5 BAR
134
RESERVOIR E P S AND CLUTCH BOOSTER 10 L, Replaced By: A0034320801
134
RESERVOIR , Replaced By: A0034321201
134
RESERVOIR ,5 934167, Replaced By: A0034320601
134
RESERVOIR SPRING LOAD ACCUMULATOR 20 L, Replaced By: A0034321601
134
RESERVOIR ,5 934167, Replaced By: A0034325401
134
RESERVOIR , Replaced By: A0034321201
134
RESERVOIR , Replaced By: A0054322001, +001A0009870446, +001A0009940203, +001A0049978272
134
RESERVOIR , Replaced By: A0054325001, +002A0009870446, +002A0009940203, +002A0049978272
134
RESERVOIR20L,246 MM,12.5 BAR
134
RESERVOIR30, 246 MM,5 934168
134
RESERVOIR20L,276 MM,8.5 BAR
134
RESERVOIR COMPRESSED AIR 20 L
134
RESERVOIR BRAKE 30 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR: ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
134
RESERVOIR10 L, 206 MM,5 934168
134
COMPRESSED AIR RESERVOIR. RESERVOIR6 L, TO VOSS 232, FOR VEHICLES WITH VOSS 230 CONNECTOR:ADD. MOUNT FITTING "A 004 997 82 72" WITH O-RING "A 000 987 04 46" AND THRUST RING "A 000 997 02 03" TO AIR RESERVOIR
134
RESERVOIR20L, 276 MM,5 934168
140
BASE AIR RESERVOIR TO RIGHT SIDE MEMBER, INSIDE
140
BASE AIR RESERVOIR TO APPARATUS SUPPORT, BOTTOM
150
VALVE DRAIN, Replaced By: A0004322407
150
VALVE DRAIN, Replaced By: A0004322107
150
VALVE. DRAIN VALVE DRAIN
156
SUPPORT APPARATUS SUPPORT
166
BRACKET AIR RESERVOIR TO APPARATUS SUPPORT
168
BRACKET AIR RESERVOIR TO FRAME
169
BRACKET AIR RESERVOIR, SIMPLE PART-PLEASE HAVE SHOP MADE
170
CONSOLE AIR RESERVOIR TO SUPPORT
171
STRAP AIR RESERVOIR
171
STRAP AIR RESERVOIR TO BRACKET
171
STRAP SPRING-LOADED BRAKE AIR RESERVOIR
171
STRAP AIR RESERVOIR TO BRACKET
171
STRAP PARTICLE FILTER
171
STRAP AIR RESERVOIR TO SUPPORT
171
STRAP , Replaced By: A6214900242
171
STRAP , Replaced By: A6554900942
172
STRAP SERVICE BRAKE AIR RESERVOIR, Replaced By: A6204300040
172
STRAP AIR RESERVOIR TO SUPPORT
172
STRAP SERVICE BRAKE AIR RESERVOIR
172
STRAP AIR RESERVOIR TO BRACKET
174
BASE AIR RESERVOIR TO FRAME SIDE MEMBER,5 314334
176
BASE AIR RESERVOIR,STRAP
176
BASE AIR RESERVOIR STRAP
177
BRACKET CLUTCH BOOSTER AIR RESERVOIR
178
SCREW END PIECE TO EXHAUST PIPE M 10X25
178
SCREW PIPE CLAMP
178
SCREW CROSS MEMBER TO FRAME M 10X30
178
SCREW , Replaced By: N304017008021
178
SCREW , Replaced By: N304017008021
178
SCREW , Replaced By: A0089907401
178
SCREW , Replaced By: N308676010023
178
SCREW BRACKET TO SIDE MEMBER,K 168169
178
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
178
SCREW BRACKET TO CROSS MEMBER M 10X40
180
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
180
NUT , Replaced By: N913004008001
182
NUT , Replaced By: N910113010000
182
NUT STRAP TO BRACKET
184
NUT BRACKET TO SUPPORT AND TO END PIECE
184
NUT , Replaced By: N910113010002
184
HEXAGON NUT
185
ADHESIVE TAPE60 MM, ORDER BY THE METER
186
CONSOLE REAR EXHAUST PIPE TO CONSOLE
188
SHIM BRACKET TO FRAME
190
WASHER MOUNTING USED FOR FRAME CONNECTION PARTS
192
SCREW , Replaced By: N308676010023
192
SCREW BRACKET TO CROSS MEMBER M 10X40
194
HEXAGON NUT
194
NUT , Replaced By: N910113010002
196
FITTING LINE CONNECTION
198
SCREW PLUG , Replaced By: N000908022011
198
SCREW PLUG LOAD/NO-LOAD VALVE,CONNECTION: "21"
200
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
329
RING DRAIN VALVE TO 000 432 08 07, NOT USED
332
CHAIN WATER SEPARATOR
332
CHAIN BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
334
CABLE SHOE WATER SEPARATOR
999
HANDLE"WABCO"
999
VALVE , Replaced By: A0034314706
999
VALVE FRONT AXLE II RELAY VALVE "GRAU", NOT USED
999
BRACKET RELAY VALVE TO CROSS MEMBER
999
BRACKET RELAY VALVE
999
BUSHING VALVE TO BRACKET
