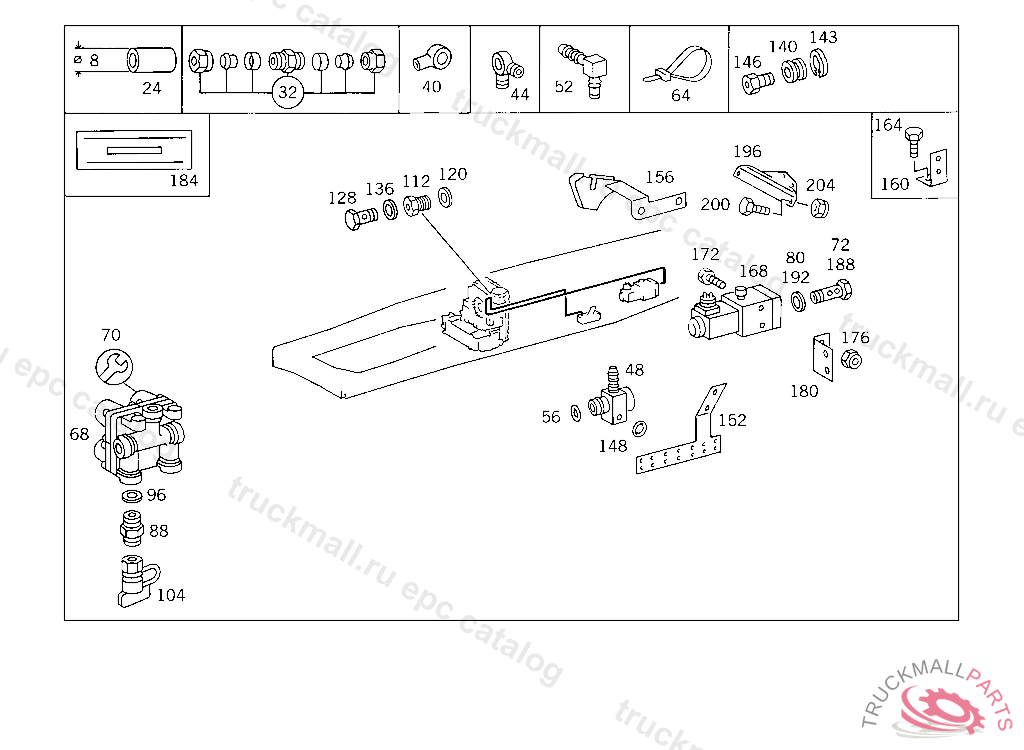

Поз.
Артикул
Описание
24
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
32
FITTING , Replaced By: A0029905971
32
FITTING (PARTS KIT),LINE RUPTURE
40
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
40
BANJO UNION HOSE WIDTH, / I.D., 9/16 MM
44
BANJO UNION RETARDER,CONNECTION: "10"
48
CONNECTOR COMPRESSED-AIR-LINE PLUG-CONNECTION TO 008 997 90 82
52
ELBOW FITTING HOSE WIDTH, 6 MM,TO M22
52
ELBOW FITTING , Replaced By: A0049905371
56
SEAL RING CONNECTOR 11.8X2 MM
56
SEAL RING , Replaced By: A0229973948
64
LOOM TIE LINE MOUNTING
64
LOOM TIE LINE MOUNTING 280 MM
68
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) 260 0 WABCO
68
VALVE , Replaced By: A0034314706
70
REPAIR KIT FOUR-CIRCUIT PROTECTIVE VALVE
72
HOLLOW SCREW LINE CONNECTION
72
HOLLOW SCREW HEATING CONNECTION
80
SEAL RING LINE CONNECTION
88
FITTING CONNECTION TO STOP LIGHT SWITCH
88
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
96
SEAL RING LINE CONNECTION
104
TEST CONNECTION
104
TEST CONNECTION SOLENOID VALVE,CONNECTION: "20"
112
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
120
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
128
HOLLOW SCREW FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "24"
128
HOLLOW SCREW FRONT AXLE REGULATING SOLENOID VALVE, CONNECTION: "10",K 009079
136
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
140
SEAL RING , Replaced By: A0009940747
140
LOCK RING LINE CONNECTION
143
LOCK , Replaced By: A0009945448
143
LOCK LINE CONNECTION
146
SCREW. UNION SCREW , Replaced By: A0009973734
146
SCREW. UNION SCREW LINE CONNECTION
148
SEALING CORD COMPRESSED-AIR-LINE PLUG-CONNECTION
152
BRACKET AT SIDE MEMBER
156
BRACKET AT RIGHT SIDE MEMBER
160
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
160
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, FRONT
164
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
168
VALVE RETARDER CONTROL
168
VALVE (PRESSURE CONTROL VALVE) ZF, REPAIR IMPOSSIBLE
172
SCREW , Replaced By: N304014006004
172
SCREW BRACKET TO CROSS MEMBER
176
NUT , Replaced By: N913004006001
176
NUT PUMP TO BRACKET
180
BRACKET PRESSURE REGULATOR TO CROSS MEMBER
184
GUMMED LABEL WINDSHIELD
188
HOLLOW SCREW LINE CONNECTION
188
HOLLOW SCREW HEATING CONNECTION
192
SEAL RING LINE CONNECTION
196
BRACKET VALVE TO CROSS MEMBER
200
SCREW END PIECE TO EXHAUST PIPE M 10X25
204
NUT , Replaced By: N910113010000
204
NUT STRAP TO BRACKET
999
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
999
CONNECTOR RELEASE BEARING LUBRICATION
999
FITTING (PARTS KIT),LINE RUPTURE
999
FITTING , Replaced By: A0029906171
999
HOSE , Replaced By: A0009872827
999
CONNECTOR , Replaced By: A0019904078
999
SEAL RING FUEL LINE TO FEED PUMP
999
HOLLOW SCREW FUEL LINE TO FEED PUMP
999
HOLLOW SCREW , Replaced By: N915036010108
999
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
999
BANJO UNION HEATING CONNECTION,K 169122
999
BANJO UNION DE-AERATION LINE TO COOLING WATER LINE
