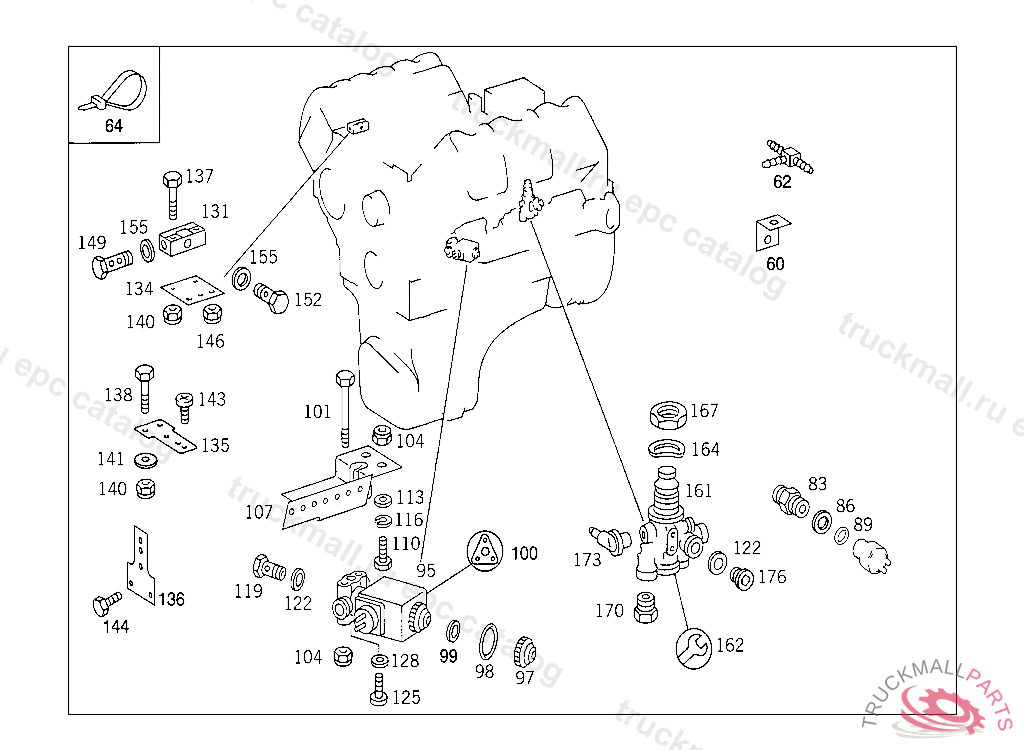

Поз.
Артикул
Описание
60
ANGLE LINE MOUNTING
62
T-FITTING EXHAUST BRAKE LINE CONNECTION
64
LOOM TIE LINE MOUNTING 280 MM
83
FITTING CONNECTION TO STOP LIGHT SWITCH, Replaced By: A3899970272
83
FITTING CONNECTION TO STOP LIGHT SWITCH
86
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940103
86
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20",5 727400
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "40"
95
VALVE , Replaced By: A0049975736
95
VALVE (3/2-WAY SOLENOID VALVE) EKS
97
PROTECTIVE CAPWABCO
98
SEAL RINGWABCO
98
SEAL RINGBOSCH
99
SEAL RINGBOSCH
100
GASKET KITKNORR
101
SCREW VALVE TO BRACKET
101
SCREW VALVE TO BRACKET, Replaced By: N304014008002
104
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
104
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
104
NUT , Replaced By: N913004008001
107
BRACKET 3/2-WAY SOLENOID VALVE
107
BRACKET 3/2-WAY SOLENOID VALVE
110
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
110
SCREW , Replaced By: N304017008016
113
WASHER EXHAUST MUFFLER TO STRAP
113
WASHER , Replaced By: N000125008443
116
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
119
HOLLOW SCREW HEATING CONNECTION
122
SEAL RING LINE CONNECTION
125
SCREW TO PLUG THE FREE CONNECTIONS
128
SEAL RINGBOSCH
131
VALVE SHUTTLE VALVE, REPAIR IMPOSSIBLE
134
BRACKET 3/2-WAY SOLENOID VALVE
137
SCREW TWO-WAY VALVE TO BRACKET
140
NUT TWO-WAY VALVE TO BRACKET
146
NUT , Replaced By: N913004006001
146
NUT PUMP TO BRACKET
149
HOLLOW SCREW TWO-WAY VALVE,CONNECTIONS: "11,12"
152
HOLLOW SCREW , Replaced By: N915036010108
152
HOLLOW SCREW FUEL LINE TO FEED PUMP
155
SEAL RING FUEL LINE TO FEED PUMP
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL WABCO
161
VALVE 3/2-WAY, EXHAUST BRAKE CONTROL BOSCH
162
REPAIR KIT 3/2-WAY VALVE WABCO
162
REPAIR KIT 3/2-WAY VALVE BOSCH
164
SPRING WASHER AT CAB FLOOR
167
NUT SUCTION LINE TO OIL PUMP
170
SCREW. UNION SCREW , Replaced By: A0009973734
170
SCREW. UNION SCREW LINE CONNECTION
173
BREATHER , Replaced By: A3933280065
173
PIPE SOCKET COMPRESSED AIR PIPING TO 3/2-WAY VALVE
176
SCREW PLUG , Replaced By: N000908012009
176
SCREW PLUG, FILLING. SCREW PLUG 3/2-WAY VALVE,CONNECTION: "10"
999
SHIM 3/2-WAY SOLENOID VALVE
