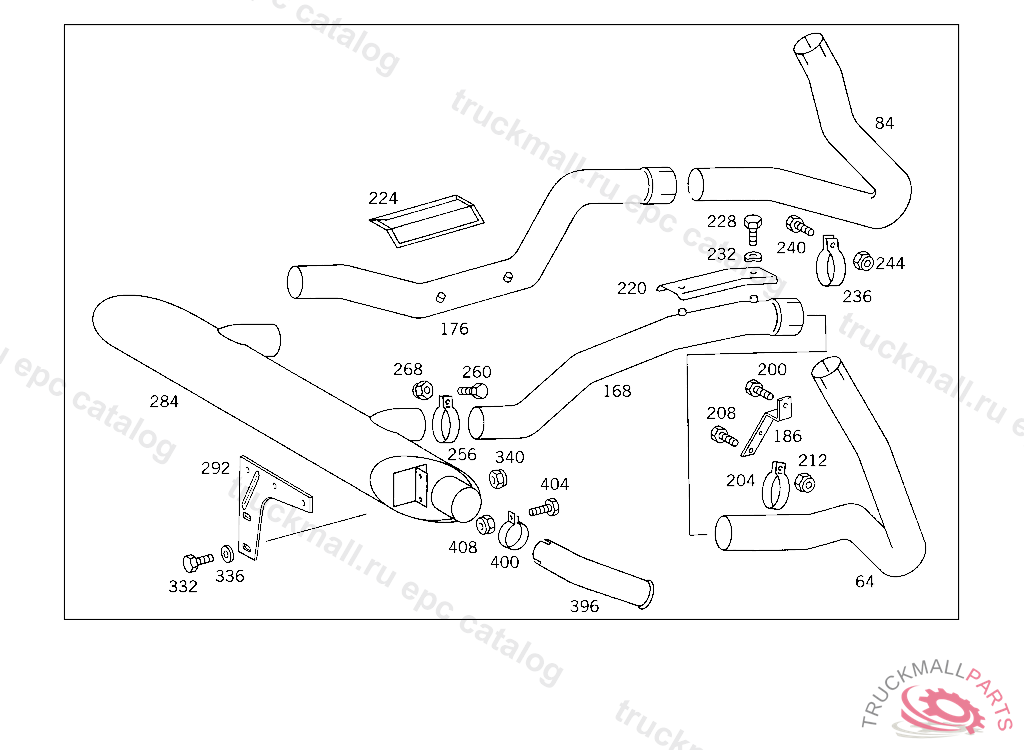

Поз.
Артикул
Описание
64
EXHAUST PIPE FRONT,REAR LEFT PART NO. 1,5 129245
64
EXHAUST PIPE FRONT,REAR LEFT PART NO.1,5 129244
64
EXHAUST PIPE FRONT,REAR LEFT PART NO. 1,5 129245
84
EXHAUST PIPE FRONT,REAR RIGHT PART
84
EXHAUST PIPE FRONT,REAR RIGHT PART
84
EXHAUST PIPE FRONT,REAR RIGHT PART NO.1,5 129244
168
EXHAUST PIPE , Replaced By: A6524920207
168
CONNECTOR RIGHT,5 521311
168
REAR EXHAUST PIPE FRONT,REAR LEFT PART,5 004845
176
FRONT EXHAUST PIPE FRONT,REAR LEFT PART
176
EXHAUST PIPE FRONT,REAR RIGHT PART,5 004845
186
BRACKET AT SIDE MEMBER,5 521311
200
SCREW REAR EXHAUST PIPE TO MUFFLER
200
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
200
SCREW REAR EXHAUST PIPE TO MUFFLER
200
SCREW REAR EXHAUST PIPE TO MUFFLER
204
CLAMP EXHAUST PIPE
204
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
204
CLAMP , Replaced By: A6554920340
204
CLAMP EXHAUST PIPE
204
CLAMP , Replaced By: N071555090502
204
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
208
SCREW REAR EXHAUST PIPE TO MUFFLER
208
SCREW , Replaced By: N304017010002
208
SCREW BRACKET TO SIDE MEMBER
208
SCREW , Replaced By: N304017008027
208
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
212
NUT , Replaced By: N910113010000
212
NUT STRAP TO BRACKET
212
NUT , Replaced By: N913004008001
212
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
220
PROTECTIVE PLATE , Replaced By: A3874920430
220
PROTECTIVE PLATE EXHAUST PIPE
220
PROTECTIVE PLATE FUEL TANK
220
PROTECTIVE PLATE EXHAUST PIPE
220
PROTECTIVE PLATE RIGHT EXHAUST PIPE,5 294656
220
PROTECTIVE PLATE FUEL TANK
220
PROTECTIVE PLATE EXHAUST PIPE
224
PROTECTIVE PLATE , Replaced By: A6484920030
224
PROTECTIVE PLATE EXHAUST PIPE
224
PROTECTIVE PLATE EXHAUST PIPE
228
SCREW , Replaced By: N304017008008
228
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
228
HEXAGON HEAD BOLT PROTECTIVE PLATE TO BRACKET
232
SPRING WASHER , Replaced By: N000137008212
232
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
232
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
236
CLAMP PROTECTIVE PLATE TO EXHAUST PIPE
236
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
240
SCREW , Replaced By: N304017008027
240
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
244
NUT , Replaced By: N913004008001
244
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
256
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
260
SCREW , Replaced By: N304017008027
260
SCREW CLAMP TO CONNECTING PIPE AND TO EXHAUST HOSE M 8X30
268
NUT , Replaced By: N913004008001
268
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
284
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
284
EXHAUST MUFFLER IN FRONT OF FRONT AXLE
284
EXHAUST MUFFLER
292
BRACKET EXHAUST MUFFLER,LEFT
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
332
SCREW END PIECE TO EXHAUST PIPE M 10X25
336
WASHER , Replaced By: N000125010532
336
WASHER RADIATOR TO RUBBER MOUNTING
336
WASHER RADIATOR TO RUBBER MOUNTING
336
WASHER RADIATOR TO RUBBER MOUNTING
340
NUT , Replaced By: N910113010000
340
NUT STRAP TO BRACKET
340
NUT STRAP TO BRACKET
340
NUT STRAP TO BRACKET
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE TAIL PIPE
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE TAIL PIPE
396
REAR EXHAUST PIPE (TAIL PIPE)
396
REAR EXHAUST PIPE (TAIL PIPE)
400
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
400
CLAMP , Replaced By: N071555090502
404
SCREW BRACKET TO SIDE MEMBER
404
SCREW , Replaced By: N304017010002
408
NUT STRAP TO BRACKET
408
NUT , Replaced By: N910113010000
999
SPACER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 389516, Replaced By: A6483310026
999
PROTECTIVE PLATE EXHAUST PIPE
999
SCREW BRACKET TO SUPPORT
