Поз.
Артикул
Описание

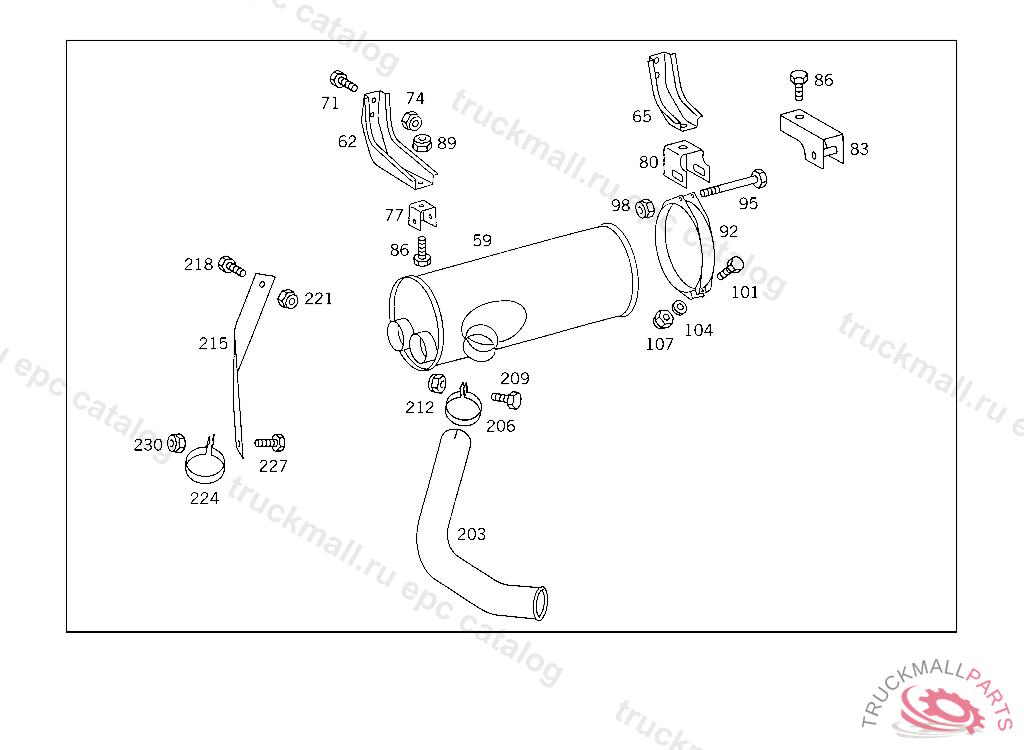

59
EXHAUST MUFFLER
59
EXHAUST MUFFLER ,5 535800
62
CONSOLE EXHAUST MUFFLER TO SIDE MEMBER
62
CONSOLE EXHAUST MUFFLER,FRONT
62
CONSOLE REAR EXHAUST MUFFLER 132 MM
62
CONSOLE REAR EXHAUST MUFFLER 132 MM
65
CONSOLE REAR EXHAUST MUFFLER 200 MM
71
SCREW CONSOLE TO SIDE MEMBER
71
SCREW , Replaced By: N308676012026
71
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
74
NUT SUPPORT TO SIDE MEMBER
74
NUT SUPPORT TO SIDE MEMBER
80
BRACKET AT SUPPORT
80
BRACKET AT SUPPORT
80
BRACKET AT SUPPORT
83
BRACKET EXHAUST MUFFLER SUSPENSION
83
BRACKET STRAP TO FRONT CONSOLE
86
SCREW PROTECTIVE PLATE TO EXHAUST MUFFLER
89
NUT STRAP TO BRACKET
89
NUT , Replaced By: N910113010000
92
STRAP EXHAUST MUFFLER TO BRACKET
92
STRAP , Replaced By: A6204900042
95
SCREW PIPE ELBOW TO BRACKET M 10X50
95
SCREW , Replaced By: N304017010053
95
SCREW , Replaced By: N304017010030
95
SCREW STRAP TO BRACKET
98
NUT STRAP TO BRACKET
98
NUT , Replaced By: N910113010000
101
SCREW EXHAUST MUFFLER TO STRAP
104
WASHER , Replaced By: N000125008443
104
WASHER EXHAUST MUFFLER TO STRAP
107
NUT , Replaced By: N913004008001
107
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
107
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
203
REAR EXHAUST PIPE ,5 439561, Replaced By: A6554900121
203
EXHAUST PIPE REAR
203
REAR EXHAUST PIPE ,5 444691
203
REAR EXHAUST PIPE ,5 501689, Replaced By: A6584920104
203
REAR EXHAUST PIPE ,5 501689
206
CLAMP EXHAUST PIPE TO BRACKET
209
SCREW REAR EXHAUST PIPE TO MUFFLER
212
NUT , Replaced By: N910113010000
212
NUT STRAP TO BRACKET
215
BRACKET TAIL PIPE TO APPARATUS SUPPORT
215
BRACKET TAIL PIPE,5 756872K 015412
215
BRACKET TAIL PIPE
218
SCREW FRONT SPRING REAR BRACKET TO CROSS MEMBER
218
SCREW , Replaced By: N308676012026
218
SCREW DELIVERY AND SUCTION LINES TO FRAME M 12X35
221
NUT BRACKET TO SIDE MEMBER
221
NUT SUPPORT TO SIDE MEMBER
224
CLAMP EXHAUST PIPE TO BRACKET
227
SCREW BRACKET TO SIDE MEMBER
230
NUT STRAP TO BRACKET
