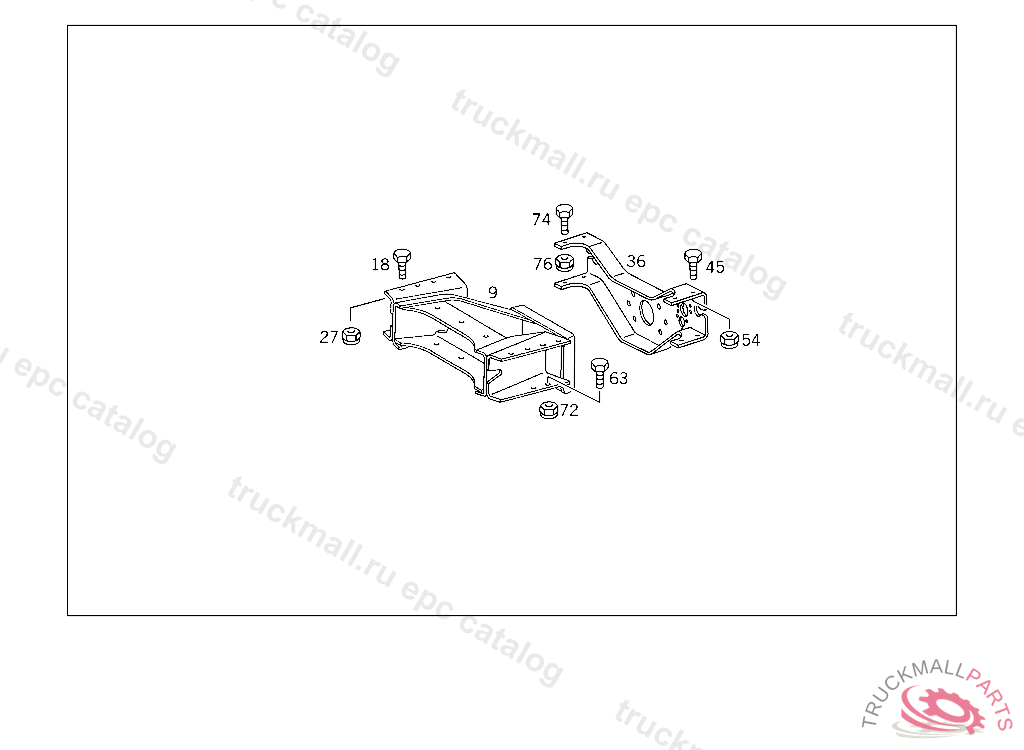

Поз.
Артикул
Описание
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
9
STRUT REAR CROSS MEMBER
18
SCREW SUPPORT TO SIDE MEMBER M14X40
18
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
18
SCREW , Replaced By: N308676014020
27
NUT , Replaced By: N910113014001
27
NUT BRACKET TO SIDE MEMBER
27
NUT PARTICLE FILTER M14
36
CROSS MEMBER
36
CROSS MEMBER (REAR CROSS MEMBER)
45
SCREW SUPPORT TO SIDE MEMBER M14X40
45
SCREW BRACKET TO SIDE MEMBER M 14X1.5X35
45
SCREW , Replaced By: N308676014020
54
NUT , Replaced By: N910113014001
54
NUT BRACKET TO SIDE MEMBER
54
NUT PARTICLE FILTER M14
63
SCREW BRACKET TO SIDE MEMBER
72
NUT BRACKET TO SIDE MEMBER
72
NUT , Replaced By: N910113014001
74
SCREW BRACKET TO FRAME M 16X1.5X45
74
SCREW BEARING BRACKET TO SIDE MEMBER
74
SCREW CROSS MEMBER TO REINFORCEMENT M 20X1.5X45
76
NUT TRAILER COUPLING TO REAR CROSS MEMBER M 16
76
NUT COMBINATION CYLINDER TO BEARING BRACKET
76
NUT CROSS MEMBER TO REINFORCEMENT
76
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
76
NUT , Replaced By: N913004020003
999
CROSS MEMBERNO.7
999
CROSS MEMBER (REAR CROSS MEMBER)
999
NUT , Replaced By: N910113014001
