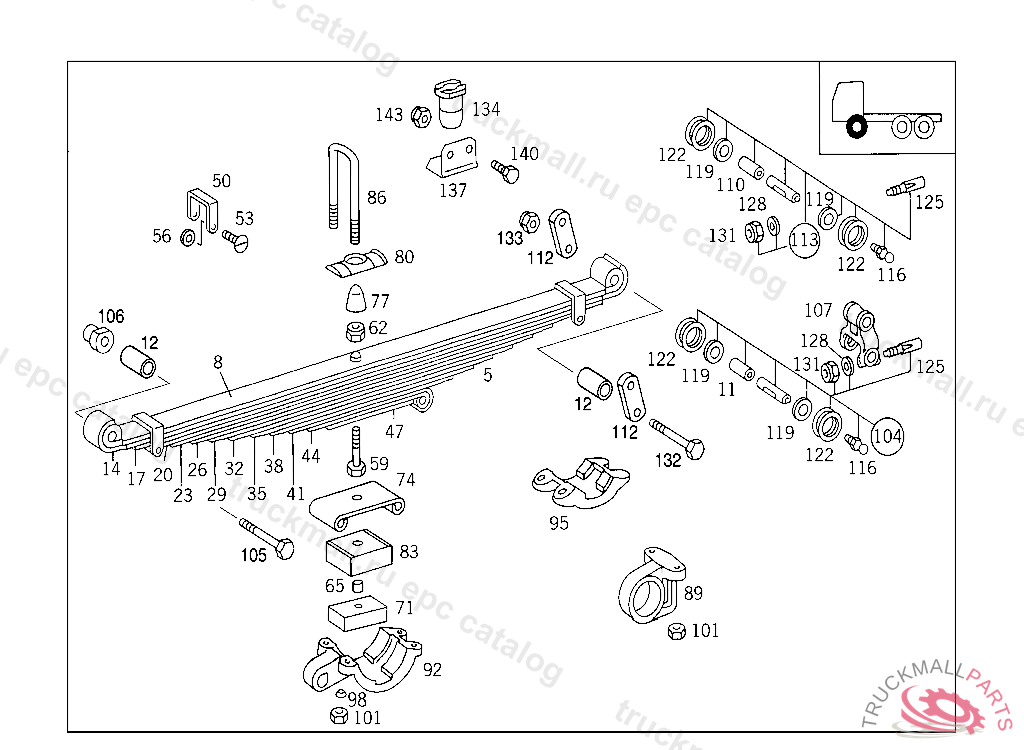

Поз.
Артикул
Описание
5
FRONT SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "10"
5
FRONT SPRING 10-LEAF
5
FRONT SPRING , Replaced By: A6593200702
8
SPRING LEAFNO.1,4 478794
8
SPRING LEAFNO.01
11
BUSHING FRONT
11
BUSHING FRONT
12
RUBBER MOUNTING
14
SPRING LEAFNO.2,4 478794
14
SPRING LEAFNO.02
17
SPRING LEAFNO.03
17
SPRING LEAF , Replaced By: A3953210013
17
SPRING LEAFTO 389 320 04 02,5 225134-5 232113 FOR USE WITH 12-LEAF FRONT SPRINGS
20
SPRING LEAFTO 389 320 04 02,5 225134-5 232113 FOR USE WITH 12-LEAF FRONT SPRINGS
20
SPRING LEAF , Replaced By: A6593210614
23
SPRING LEAF , Replaced By: A3953210015
23
SPRING LEAFNO.7
23
SPRING LEAFNO.5,K 062599
26
SPRING LEAFNO.8
26
SPRING LEAFNO.06
26
SPRING LEAF , Replaced By: A3953210016
29
SPRING LEAF , Replaced By: A6593210517
29
SPRING LEAFNO.9
32
SPRING LEAFNO.10
32
SPRING LEAFNO.08
35
SPRING LEAFNO.11
35
SPRING LEAF , Replaced By: A6593210519
38
SPRING LEAFNO.10
38
SPRING LEAFNO.12
50
SPRING CLAMP SPRING EYE,FRONT,5 533058
53
SCREW FOR SPRING CLAMPS
56
WASHER FOR SPRING CLAMPS
59
SCREW (SPRING BOLT)
62
NUT STEERING SUPPORT TO FRAME
62
NUT , Replaced By: N910113014000
74
SHIM FRONT SPRINGS TO FRONT AXLE
77
RUBBER BUFFER SPRING STOP
80
PLATE FRONT SPRINGS TO FRONT AXLE,K 156938
80
PLATE FRONT SPRINGS TO FRONT AXLE
86
U-BOLT FRONT SPRINGS TO FRONT AXLE 410 MM
86
U-BOLT FRONT SPRINGS TO FRONT AXLE 390 MM,4 286050
89
BEARING BRACKET FRONT AXLE TORSION BAR
95
PLATE RIGHT FRONT SPRING
95
PLATE LEFT FRONT SPRING
98
WASHER REAR SPRING TO REAR AXLE
101
NUT REAR SPRING TO REAR AXLE
101
NUT , Replaced By: N308673020002
101
NUT , Replaced By: N308674020000
104
SHACKLE PIN PARTS KIT
105
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
106
BUSHING FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
107
SHACKLE FRONT SPRING
110
BUSHING FRONT
110
BUSHING FRONT
112
SHACKLE FRONT SPRING,REAR,K 083474
113
SHACKLE PIN PARTS KIT
116
GREASE NIPPLE
119
WASHER AS REQUIRED 4.30 MM
119
WASHER AS REQUIRED 4.20 MM
119
WASHER AS REQUIRED 4.00 MM
122
SEAL RING SPRING SUSPENSION
125
BOLT SPRING SHACKLE TO SPRING REAR BRACKET
128
WASHER , Replaced By: N000125010532
128
WASHER RADIATOR TO RUBBER MOUNTING
131
NUT , Replaced By: N910113010000
131
NUT STRAP TO BRACKET
132
SCREW FRONT SPRING TO FRONT SPRING FRONT BRACKET,K 083474
133
NUT AIR-SPRING-BELLOWS SUPPORT TO REAR AXLE
