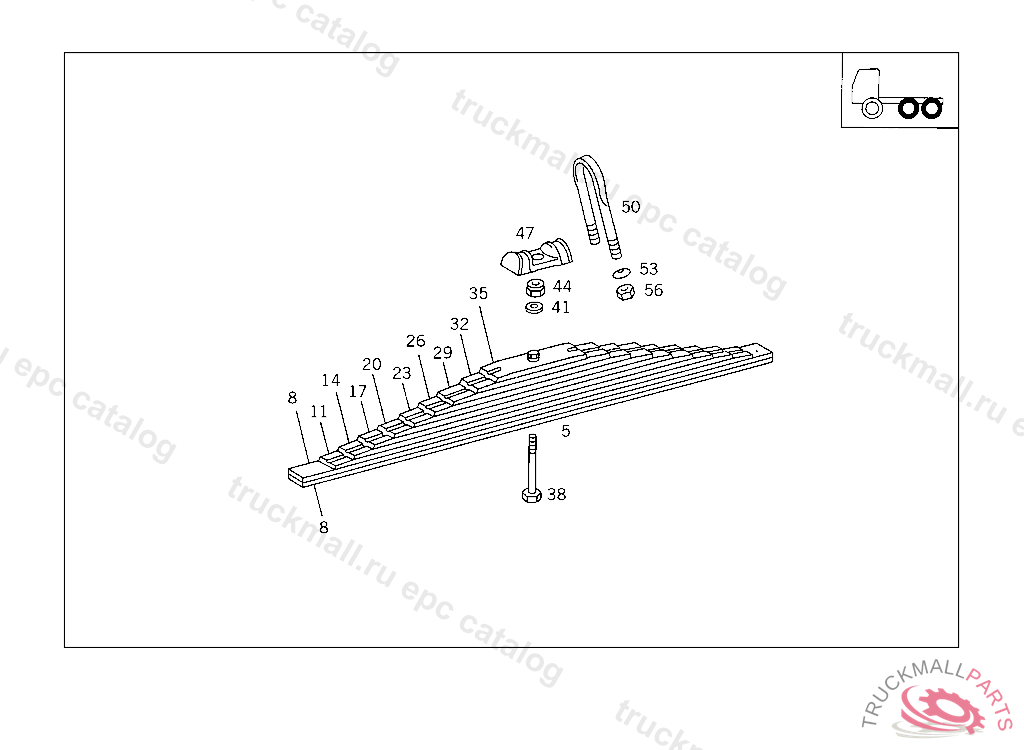

2638 AK,2644 AK,2650 AK 2653 AK - 659.343 - 32 SPRINGS AND SUSPENSION
Поз.
Артикул
Описание
5
REAR SPRING (TRAPEZOIDAL SPRING),NUMBER OF LEAVES: "8"
8
SPRING LEAFNO.1,NO.2
11
SPRING LEAFNO.3
14
SPRING LEAFNO.4
17
SPRING LEAFNO.5
20
SPRING LEAFNO.6
23
SPRING LEAFNO.7
26
SPRING LEAFNO.8
38
SPRING BOLT ,4 338077
41
WASHER BRACKET TO SPARE WHEEL CARRIER
44
NUT TORSION BAR TO BEARING BRACKET,5 904661
47
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
47
SPRING CLAMPING PLATE REAR SPRING TO SPRING SADDLE
50
U-BOLT REAR SPRING TO SPRING SADDLE
53
SPHERICAL WASHER REAR SPRING TO SPRING SADDLE
56
NUT REAR SPRING TO SPRING SADDLE
