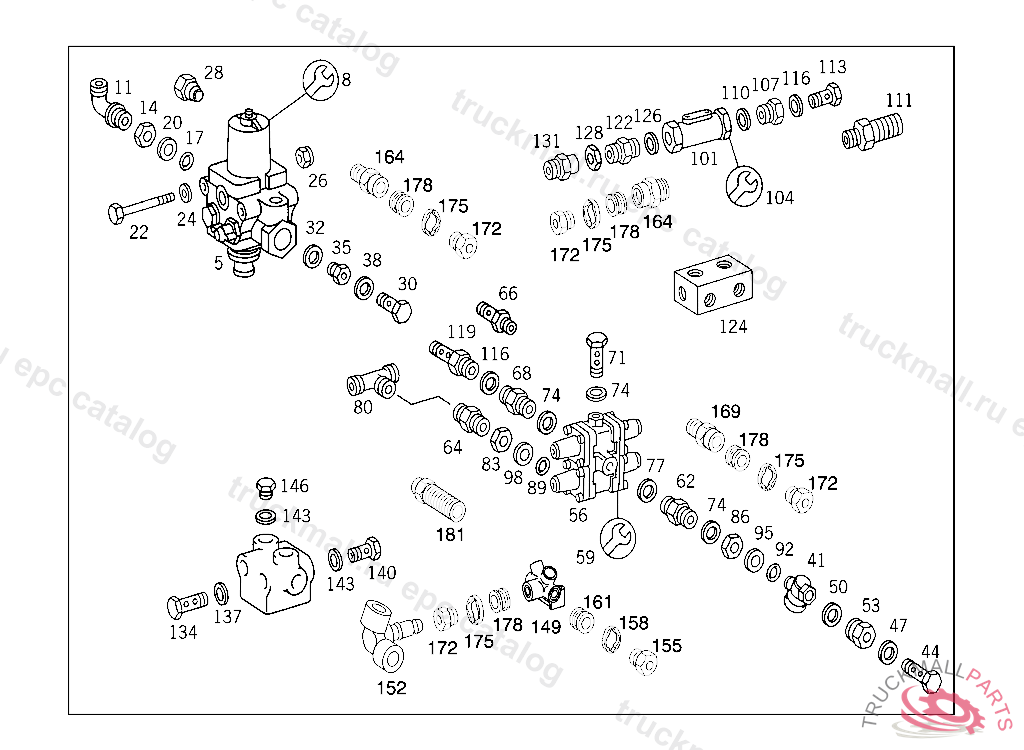

Поз.
Артикул
Описание
5
PRESSURE REGULATOR
5
PRESSURE REGULATOR , Replaced By: A0024314306
5
PRESSURE REGULATOR , Replaced By: A0024314906
5
PRESSURE REGULATOR , Replaced By: A0024318306
5
PRESSURE REGULATOR , Replaced By: A0024314906
8
REPAIR KIT , Replaced By: A0004301107
8
REPAIR KIT VALVE KIT WABCO,5 148812
8
REPAIR KITTO 001 431 98 06
8
REPAIR KIT DIAPHRAGM PART BOSCH,209
8
REPAIR KIT SEAL RING BOSCH,209
11
ELBOW FITTING AIR RESERVOIR
14
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
17
O-RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING CHECK VALVE TO AIR RESERVOIR
20
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
22
SCREW PRESSURE REGULATOR TO BRACKET M 8X75
24
WASHER TRAILER PLUG SOCKET TO BRACKET
26
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
30
HOLLOW SCREW FUEL FEED,AT WATER SEPARATOR
30
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
32
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
35
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
38
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
41
AIR CLEANER
41
AIR CLEANER COMPRESSED AIR LINE
44
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
44
HOLLOW SCREW LINE TO OIL RADIATOR
47
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
50
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
53
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
56
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) KNORR
56
VALVE (FOUR-CIRCUIT PROTECTIVE VALVE) WABCO
59
REPAIR KITTO 345 431 74 06
59
REPAIR KITTO 001 431 30 06
62
FITTING SHUTTLE VALVE,CONNECTION: "20"
62
FITTING , Replaced By: A0019972372
64
FITTING LOCKING VALVE,CONNECTION: "2"
66
HOLLOW SCREW FITTING LOCKING VALVE,CONNECTION: "12"
68
FITTING DELIVERY LINE TO PUMP
68
SCREW-IN FITTING OIL LINE CONNECTION
68
FITTING VALVE TO VALVE
71
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
71
HOLLOW SCREW LINE TO OIL RADIATOR
74
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
77
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
83
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
86
NUT AIR RESERVOIR,CONNECTIONS: "14,21,35"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
89
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
92
O-RING CHECK VALVE TO AIR RESERVOIR
92
O-RING CHECK VALVE TO AIR RESERVOIR
92
O-RING CHECK VALVE TO AIR RESERVOIR
92
O-RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A0009940203
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
95
THRUST RING CHECK VALVE TO AIR RESERVOIR
98
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
THRUST RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
98
THRUST RING LOCKING VALVE
98
THRUST RING LOCKING VALVE
98
THRUST RING LOCKING VALVE
101
VALVE (CHECK VALVE)
101
NON-RETURN VALVE. VALVE WITH CHECK VALVE WABCO,5 433388
101
VALVE (CHECK VALVE)
104
REPAIR KIT CHECK TO 003 429 07 44
107
FITTING REAR AXLE REGULATING SOLENOID VALVE, CONNECTIONS: "10"
110
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
111
CONNECTOR AIR RESERVOIR
111
FITTING AT DISTRIBUTOR,4 481289
113
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
116
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
119
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION "23"
119
HOLLOW SCREW FITTING FOUR-CIRCUIT PROTECTIVE VALVE, CONNECTION: "23"
122
FITTING LOCKING VALVE
122
FITTING BRAKE LINE COUPLING,796308
122
FITTING , Replaced By: A0009970171
122
FITTING TWO-WAY VALVE,CONNECTION: "12",4 691316
124
FITTING CHECK VALVE,C 081305
126
SEAL RING LOAD/NO-LOAD VALVE,CONNECTIONS: "20,21",5 727400
128
NUT BRACKET TO SIDE MEMBER
131
CONNECTOR , Replaced By: A0039971272, +001A0019901967, +001N915017012100
131
CONNECTOR , Replaced By: A0039971272, +001A0019901967, +001N915017012100
131
CONNECTOR COMPRESSED AIR LINE TO DISTRIBUTOR
131
CONNECTOR COMPRESSED AIR LINE TO DISTRIBUTOR
134
HOLLOW SCREW BRAKE POWER REGULATOR W/RELAY VALVE, CONNECTION: "40"
134
HOLLOW SCREW LINE TO OIL RADIATOR
134
HOLLOW SCREW FUEL LINE TO FUEL TANK
137
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
140
HOLLOW SCREW
140
HOLLOW SCREW
143
SEAL RING FUEL LINE TO FEED PUMP
146
SCREW PLUG
149
DISTRIBUTOR ENGINE SHUT-OFF,5 766894
152
FITTING 3/2-WAY SOLENOID VALVE,CONNECTION: "20",5 766895, 5 806950
155
SCREW. UNION SCREW , Replaced By: A0009973734
158
SEAL RING , Replaced By: A0009940747
161
LOCK , Replaced By: A0009945448
164
FITTING LINE CONNECTION
164
FITTING LINE CONNECTION
169
FITTING LOAD/NO-LOAD VALVE,CONNECTIONS: "10,21"
172
SCREW. UNION SCREW LINE CONNECTION
172
SCREW. UNION SCREW LINE CONNECTION
172
SCREW. UNION SCREW LINE CONNECTION
172
SCREW. UNION SCREW LINE CONNECTION
175
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
175
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
175
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
175
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
178
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
178
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
178
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
178
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
181
FITTING LINE CONNECTION
