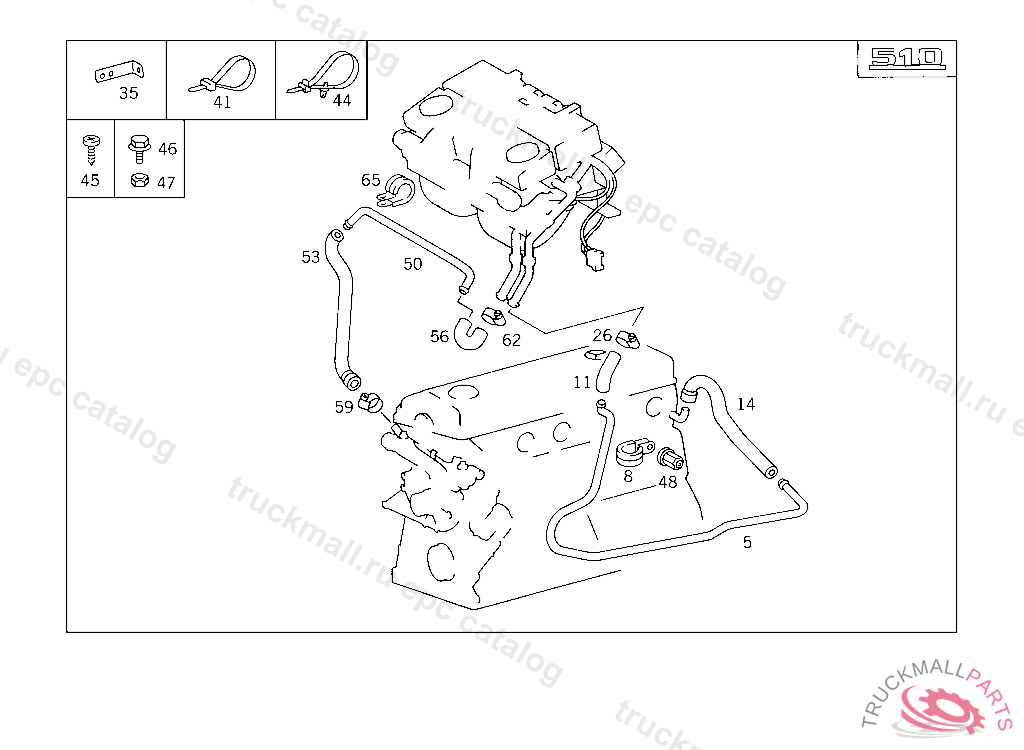

Поз.
Артикул
Описание
5
PIPE (HEATING LINE) FROM ENGINE TO HEATER,FEED, 962133 N 000001 P 000001
8
CLAMP BRAKE HOSE BRACKET
11
HOSE (HEATING LINE) FROM ENGINE TO HEATER,FEED, 962133 N 000001 P 000001
14
HOSE (HEATING LINE) FROM ENGINE TO HEATER,FEED
26
CLAMP , Replaced By: N000000000667
26
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
35
BRACKET HOT AIR HOSE TO FIRE WALL CLAMP
41
LOOM TIE TO MOUNT PLASTIC PIPING
44
LOOM TIE
44
LOOM TIE , Replaced By: A1149970590
45
SHEET METAL SCREW , Replaced By: N000000000453
45
SHEET METAL SCREW MODULE TO HOUSING
46
SCREW HEAT SHIELD MOUNTING M 6X25
46
SCREW COVER PLATE TO COVER PLATE M 6 X 12
47
NUT SPRING-LOADED PUSH ROD
48
NUT COVERING TO CAB FIRE WALL
50
PIPE HEATING RETURN
50
PIPE , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. N 000000 P 156572, Replaced By: A6675061460
53
HOSE FROM HEATING PIPE TO WATER PUMP, RETURN
56
HOSE FROM HEATING PIPE TO HEATER, RETURN
59
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
59
CLAMP25-40X13 MM
62
CLAMP , Replaced By: N000000000667
62
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
65
CLAMP BRAKE HOSE BRACKET
999
SPACER TUBE COVERING TO SEMIMONOCOQUE WING, TO BE ADAPTED DURING ASSEMBLY
999
BRACKET FEED HOSE TO FIRE WALL
999
BRACKET FEED HOSE TO FIRE WALL, N 000001 P 062860
