Поз.
Артикул
Описание

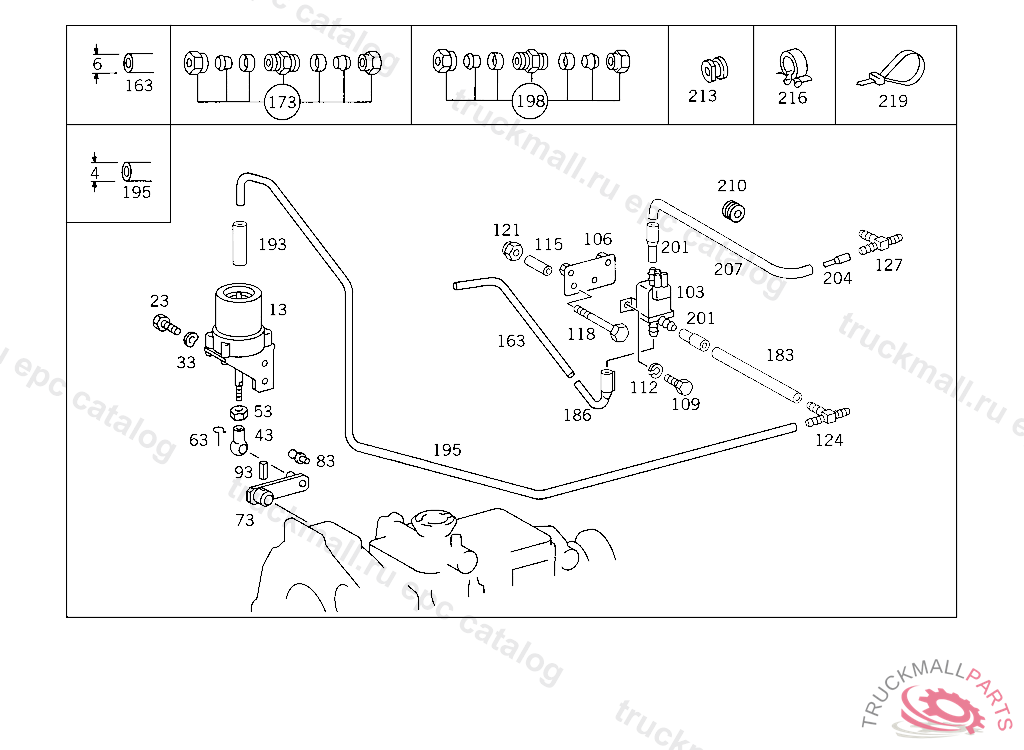

13
POWER CYLINDER EXHAUST BRAKE
23
SCREW CABLE HARNESS MOUNTING
33
SPRING WASHER , Replaced By: N000137008212
33
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
43
BALL SOCKET ROD TO BALL PIVOT
43
BALL SOCKET ROD TO BALL PIVOT
53
NUT , Replaced By: N304035008001
53
NUT
63
SECURING CLIP. CIRCLIP
73
LEVER , Replaced By: A6672600837
73
LEVER P.T.O. CONTROL
83
BALL PIVOT
93
CLAMPING SLEEVE LEVER TO SHIFTING SHAFT
103
VALVE
103
VALVE , Replaced By: A0015408697
103
VALVE (3/2-WAY SOLENOID VALVE)
106
BRACKET 3/2-WAY VALVE, N 000000 P 083147
106
BRACKET 3/2-WAY VALVE, N 000001 P 083148
109
SCREW COVER PLATE TO COVER PLATE M 6 X 12
112
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
115
SPACER TUBE CLAMP ON BRACKET
118
SCREW , Replaced By: N304014008001
118
SCREW FRONT AXLE REGULATING SOLENOID VALVE M 8X75
121
NUT STRAP TO BRACKET
124
DISTRIBUTOR HOSE WIDTH, 6 MM
127
T-FITTING BETWEEN THE LINES
163
PLASTIC PIPE. HOSE AERATION 6X8 MM, ORDER BY THE METER
173
FITTING (PARTS KIT),LINE RUPTURE
173
FITTING , Replaced By: A0029905971
183
HOSE (3/2-WAY SOLENOID VALVE) "3"
186
HOSE
186
HOSE FROM 3/2-WAY VALVE TO POWER CYLINDER, N 000001 P 149402
193
HOSE P.T.O. CONTROL VALVE
195
PLASTIC PIPE RISING PIPE 4X6 MM
195
HOSE LEAK LINE 4X6 MM, ORDER BY THE METER
198
FITTING (PARTS KIT),LINE RUPTURE,5 909352K 169122
201
HOSE VACUUM LINE
204
HOSE ENGINE TO REGENERATION VALVE RECHTS, F 125158 EXCEPT CODE 805 ALSO INSTALLED IN VEHICLE TO F 125157 WITH CODE 806
207
HOSE MASTER SWITCH AND VACUUM SWITCH 40 MM, 023 164780 033 066774 123 158077 130 172061
210
GROMMET LINE MOUNTING 16/11 MM
210
GROMMET
213
EXPANSION PLUG HEATER-PLUG INDICATOR RESISTOR,244705-303364
216
CLAMP
219
LOOM TIE LINE MOUNTING 280 MM
