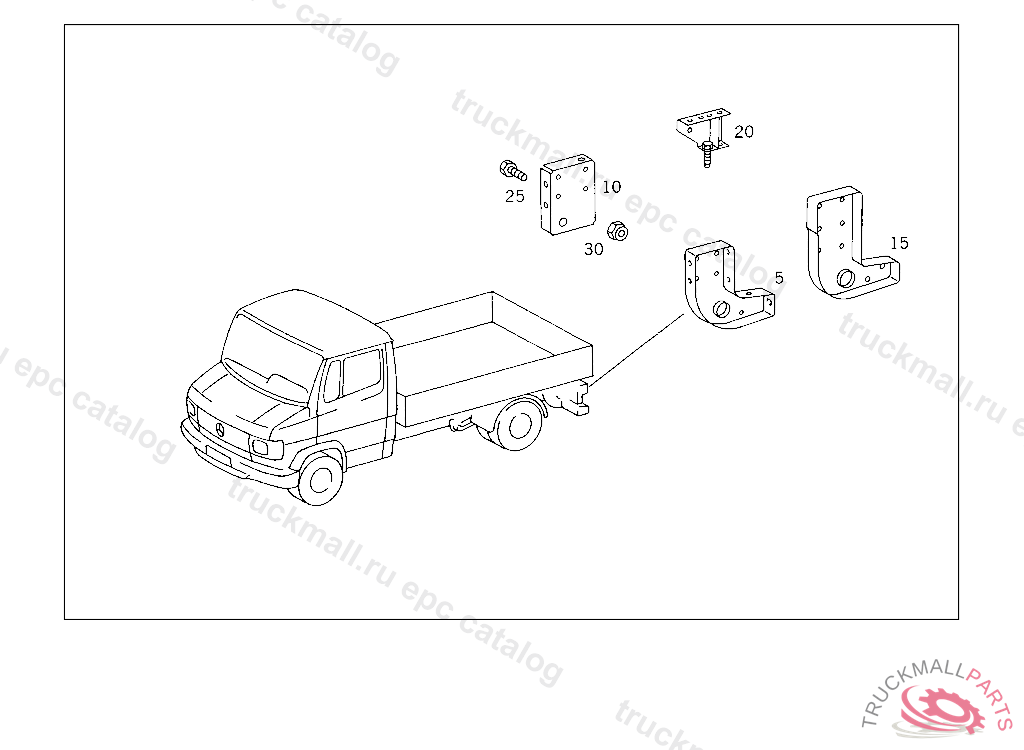

510 - 667.001 - 52 CHASSIS SHEET METAL
Поз.
Артикул
Описание
5
SUPPORT , Replaced By: A6685000327
5
BRACKET RIGHT, ONLY USED WITH UNDERRUN PROTECION
5
SUPPORT OIL COOLER
5
BRACKET LEFT, TO BE ADAPTED DURING ASSEMBLY DELIVER ADDITIONALLY: 4X 305 990 04 40, 4X 668 990 00 90, WITH 15-MM-DIA. BORE
10
BRACKET RIGHT
10
BRACKET LEFT
15
SUPPORT LEFT
15
SUPPORT RIGHT
20
CONSOLE LEFT
20
CONSOLE RIGHT
25
SCREW , Replaced By: N304017010043
25
SCREW BRACKET TO CONSOLE
30
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
