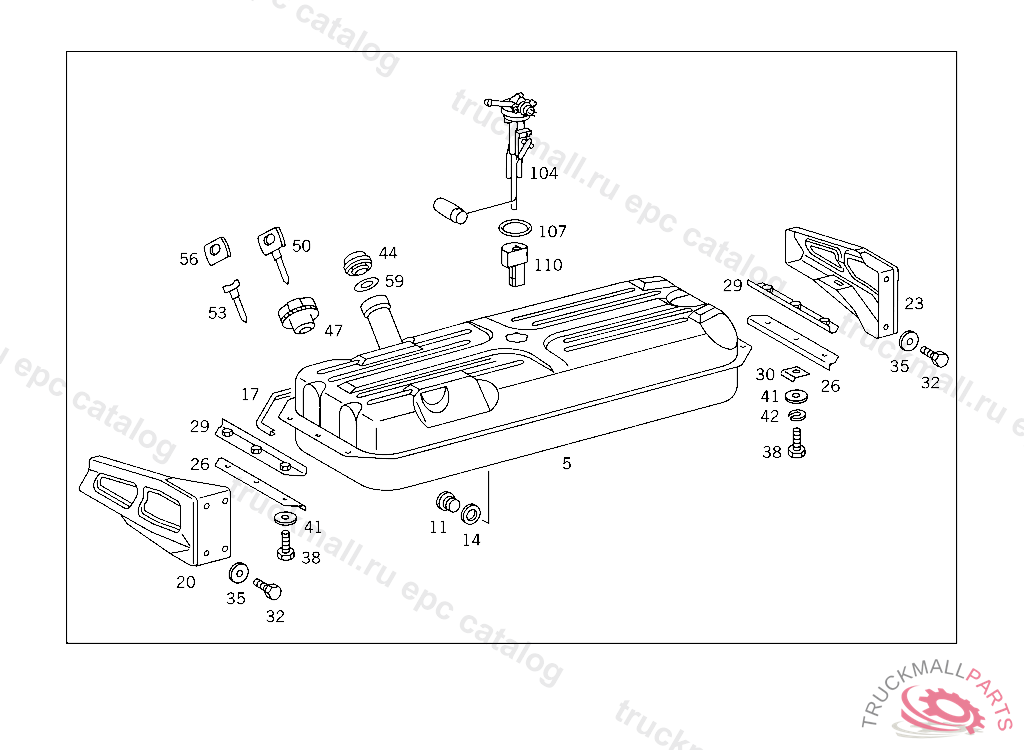

Поз.
Артикул
Описание
5
FUEL TANK LESS SENDER UNIT 70 L, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
5
FUEL TANK , Replaced By: A6674704401
5
FUEL TANK , Replaced By: A6674704001
11
SCREW PLUG
11
SCREW PLUG , Replaced By: A2109970132
14
SEALING RING. SEAL RING OIL DRAIN
17
EDGE GUARD SECTION AT TANK 1000 MM, ORDER BY THE METER5 3506525 495522
20
SUPPORT FUEL TANK,FRONT, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
20
SUPPORT , Replaced By: A6674701042
23
SUPPORT , Replaced By: A6674701142
23
SUPPORT FUEL TANK,REAR, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
26
REINFORCEMENT
29
REINFORCEMENT FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 350652
30
ANGLE FUEL TANK TO SUPPORT
32
SCREW STRUT TO CROSS MEMBER M 10X25
35
WASHER BRACKET TO COVERING
35
WASHER , Replaced By: N009021010209
38
HEXAGON HEAD BOLT. SCREW COMPRESSED AIR LINE TO LEFT SIDE MEMBER
38
SCREW BRACKET TO CROSS CONNECTION STRUT
41
WASHER , Replaced By: N009021008213
41
WASHER BRACKET TO LEFT SIDE MEMBER
42
LOCK WASHER CLAMP TO BRACKET AND TO PIPE
44
FILLER CAP , Replaced By: A9014700105
44
FILLER CAP , Replaced By: A0004700730
44
FUEL FILLER CAP , Replaced By: A9014700005
44
FILLER CAP
47
FUEL FILLER CAP. FILLER CAP WITH LOCK DEFINED,P 078761 STATE LOCK NUMBER WHEN ORDERING
47
FUEL FILLER CAP. FILLER CAP WITHOUT LOCK UNDEFINED
50
KEYHUF, STATE LOCK NUMBER WHEN ORDERING
50
KEYYMOS, STATE LOCK NUMBER WHEN ORDERING
53
KEY BLANK YMOS
53
KEY BLANK HUF
56
KEY HEAD
59
SEAL RING
59
SEAL RINGTO 000 471 63 30, 000 471 74 30
104
SENDER UNIT FUEL GAUGE, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
107
GASKET FUEL GAUGE SENDER UNIT TO FUEL TANK, FOR USE WITH SHORT MERCEDES-BENZ CAB5 3506525 495522
110
FUEL STRAINER SENDER UNIT
999
FUEL FILLER CAP , Replaced By: A0004700930
999
FUEL FILLER CAP , Replaced By: A0004701030
999
SENDER UNIT , Replaced By: A6675420517
999
FUEL FILLER CAP , Replaced By: A1244700005
999
FUEL FILLER CAP , Replaced By: A0004700830
