Поз.
Артикул
Описание

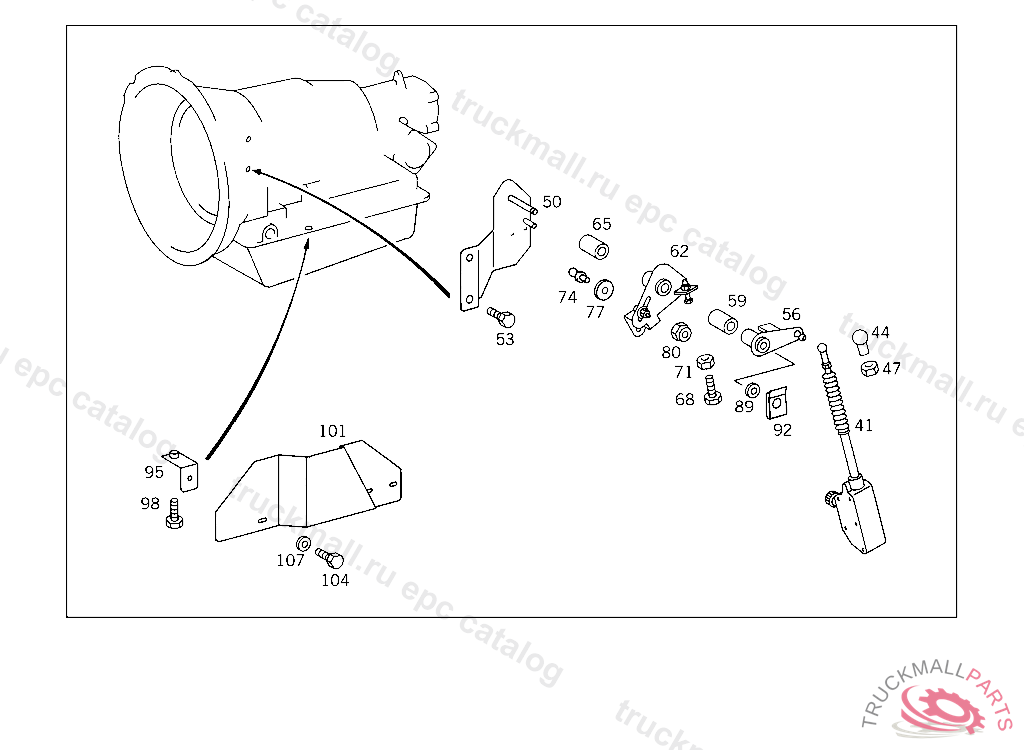

41
MODULATOR
44
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
47
NUT SPRING-LOADED PUSH ROD
50
BRACKET MODULATOR
50
BRACKET , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6683000340
53
SCREW BRACKET TO TRANSMISSION,5 360280
56
LEVER OUTSIDE
59
BUSHING
62
LEVER INSIDE
62
LEVER , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6683000927, +001A6683000340
65
BUSHING
68
SCREW , Replaced By: N304017006026
71
NUT SPRING-LOADED PUSH ROD
74
BALL PIVOT
77
WASHER , Replaced By: N009021006208
77
WASHER COMPRESSED AIR LINE TO BRACKET
80
NUT HEATING PIPE TO BRACKET
89
FITTED WASHER LEVER TO BRACKET
92
CLIP LEVER TO SHAFT,P 012148
95
BRACKET HEAT SHIELD
98
SCREW , Replaced By: A1249904601
98
SCREW BRACKET TO OIL PAN
101
COVERING (HEAT SHIELD)
104
SCREW PUMP TO BRACKET
107
WASHER SWITCH TO FIRE WALL
999
BALL SOCKET
999
PIN SUPPORT TO SUBSTRUCTURE
