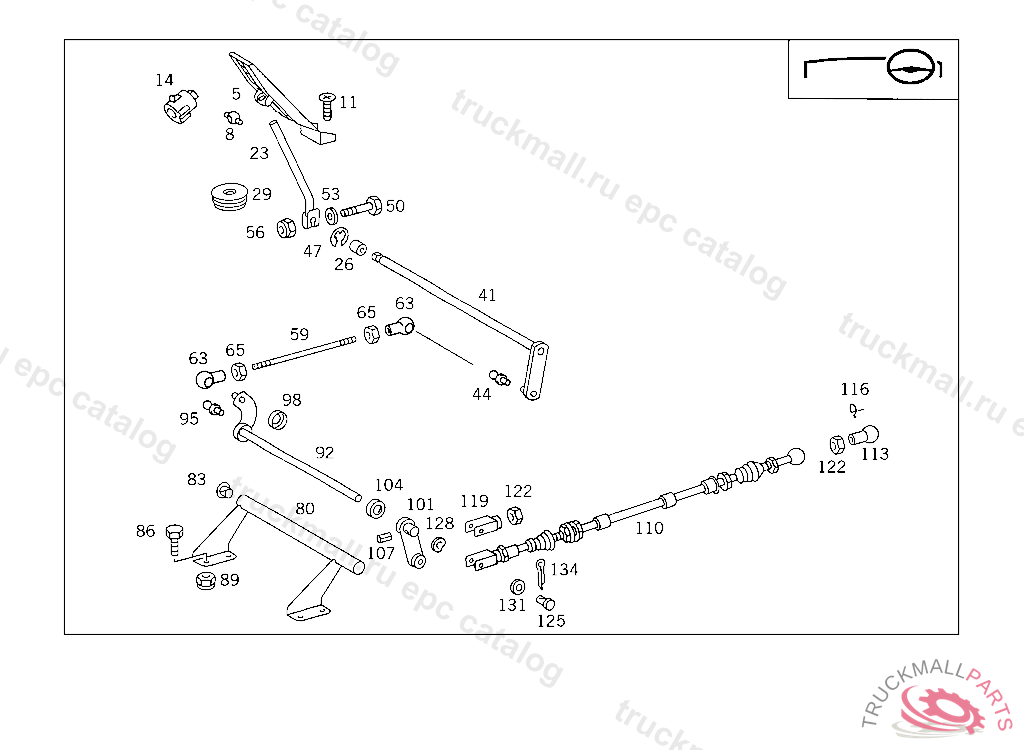

Поз.
Артикул
Описание
5
ACCELERATOR PEDAL
8
JOINT
11
SCREW SWITCH TO FLOOR PLATE M6X16,5 220373
14
STOP FULL THROTTLE
23
LEVER ACCELERATOR PEDAL
26
BUSHING ACCELERATOR CONTROL LINKAGE BEARING
29
GROMMET CONTROL ROD COVERING
41
SHAFT CONTROL,5 552123
44
BALL PIVOT
47
LOCK PLATE
50
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
50
SCREW , Replaced By: N304017006012
53
WASHER COMPRESSED AIR LINE TO BRACKET
53
WASHER COMPRESSED AIR LINE TO BRACKET, Replaced By: N000125006449
56
NUT PUMP TO BRACKET
56
NUT , Replaced By: N913004006001
59
PULL ROD LOAD SENSOR CONTROL, TO BE ADAPTED DURING ASSEMBLY
63
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
63
BALL SOCKET PULL ROD TO INTERMEDIATE LEVER
65
NUT BALL PIVOT TO LEVER
80
BEARING TUBE CONTROL SHAFT
83
BUSHING INTERMEDIATE LEVER TO BEARING BRACKET,5 943507
86
SCREW OIL-DIPSTICK GUIDE TUBE TO BRACKET
86
SCREW , Replaced By: N304017008016
89
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
89
NUT , Replaced By: N913004008001
89
HEXAGON NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET
92
SHAFT (CONTROL SHAFT)
95
BALL PIVOT
98
COVERING , Replaced By: A4073015088
98
COVERING
101
LEVER (CONTROL LEVER)
104
COVERING , Replaced By: A4073015088
104
COVERING
107
CLAMPING PIN CONTROL LEVER TO CONTROL SHAFT, TO BE ADAPTED DURING ASSEMBLY
107
CLAMPING SLEEVE , Replaced By: N308752004001
110
CABLE INTERMEDIATE BEARING TO CONTROL SHAFT
113
BALL SOCKET
116
SECURING CLIP. CIRCLIP
119
YOKE SHIFTING ROD TO INTERMEDIATE LEVER
122
NUT
122
NUT , Replaced By: N304035008001
125
PIN WIRE CABLE TO LEVER
128
SPRING WASHER PROTECTIVE PLATE TO EXHAUST MUFFLER
128
SPRING WASHER , Replaced By: N000137008212
131
WASHER BRACKET TO CROSS MEMBER
134
COTTER PIN LEVER TO ROD
134
COTTER PIN LEVER TO ROD, Replaced By: N000094002060
