Поз.
Артикул
Описание

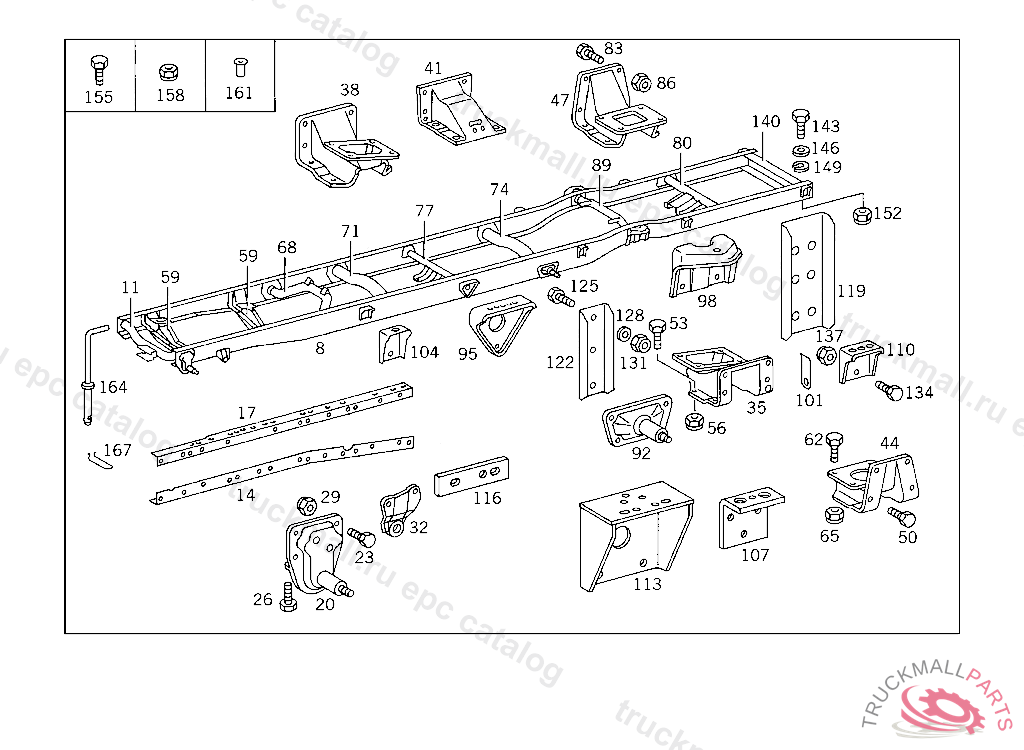

8
FRAME , FROM IDENT NO.611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
8
FRAME ,556500020034 DELIVER ADDITIONALLY: 1X309 310 15 22 UP TO IDENT NO. 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
8
FRAME ,020034556499, Replaced By: A3093108201, +001A3104201481, +002A3104200985, +002A3104270332, +002A3104270550, +002A3104270072, +002A3104270083, +002A3104271289, +002A3104270096, +001A4254920074, +001A3149931210, +002A3149972882, +002N000094003219, +001N000125008418, +004N000125010518, +003N000433010505, +002N000931006191, +002N000931010274, +001N000931010331, +001N001434008107
8
FRAME ,020034556499, Replaced By: A3093108201, +001A3104201481, +002A3104200985, +002A3104270332, +002A3104270550, +002A3104270072, +002A3104270083, +002A3104271289, +002A3104270096, +001A4254920074, +001A3149931210, +002A3149972882, +002N000094003219, +001N000125008418, +004N000125010518, +003N000433010505, +002N000931006191, +002N000931010274, +001N000931010331, +001N001434008107
8
FRAME ,020034556499, Replaced By: A3093108201, +001A3104201481, +002A3104200985, +002A3104270332, +002A3104270550, +002A3104270072, +002A3104270083, +002A3104271289, +002A3104270096, +001A4254920074, +001A3149931210, +002A3149972882, +002N000094003219, +001N000125008418, +004N000125010518, +003N000433010505, +002N000931006191, +002N000931010274, +001N000931010331, +001N001434008107
8
FRAME ,020034556499, Replaced By: A3093108201, +001A3104201481, +002A3104200985, +002A3104270332, +002A3104270550, +002A3104270072, +002A3104270083, +002A3104271289, +002A3104270096, +001A4254920074, +001A3149931210, +002A3149972882, +002N000094003219, +001N000125008418, +004N000125010518, +003N000433010505, +002N000931006191, +002N000931010274, +001N000931010331, +001N001434008107
8
FRAME ,020034556499, Replaced By: A3093108201, +001A3104201481, +002A3104200985, +002A3104270332, +002A3104270550, +002A3104270072, +002A3104270083, +002A3104271289, +002A3104270096, +001A4254920074, +001A3149931210, +002A3149972882, +002N000094003219, +001N000125008418, +004N000125010518, +003N000433010505, +002N000931006191, +002N000931010274, +001N000931010331, +001N001434008107
8
FRAME ,020033
11
CROSS MEMBER RADIATOR, FROM IDENT NO. 611358 EXCEPT FOR 611519,611537 ALSO INSTALLED ON 610763,610832,610834,610848,610863
11
CROSS MEMBER RADIATOR,156153 UP TO IDENT NO. 611357 ALSO INSTALLED ON 611519,611537 EXCEPT FOR 610763,610832,610834,610848,610863
11
CROSS MEMBER FRONT, ON TRUCKS 10/50 UP TO CHASSIS 145736 ALSO INSTALLED ON SEE FOOTNOTE 7,WITH EXCEPTION OF SEE FOOTNOTE 8,ON TRUCKS 20/60 UP TO C HASSIS 148036 WITH EXCEPTION OF 140555,142078
14
REINFORCEMENT RIGHT BOTTOM
14
REINFORCEMENT LEFT BOTTOM
17
REINFORCEMENT RIGHT TOP
17
REINFORCEMENT LEFT TOP
20
REAR SUBFRAME (FRONT SPRING BRACKET),FRONT
23
SCREW BRACKET TO SIDE MEMBER
23
SCREW , Replaced By: N304017010002
26
SCREW END PIECE TO EXHAUST PIPE M 10X25
29
NUT STRAP TO BRACKET
29
NUT , Replaced By: N910113010000
32
CONSOLE RIGHT,D 054472
32
CONSOLE LEFT,D 054472
35
CONSOLE ENGINE FRONT LEFT MOUNTING,156152
38
CONSOLE ENGINE FRONT RIGHT MOUNTING,156152
41
SUPPORT ENGINE FRONT MOUNTING,156153
44
CONSOLE ENGINE LEFT REAR MOUNTING
44
CONSOLE ENGINE LEFT REAR MOUNTING,001085
47
CONSOLE ENGINE RIGHT REAR MOUNTING
47
CONSOLE ENGINE RIGHT REAR MOUNTING,001085
50
SCREW END PIECE TO EXHAUST PIPE M 10X25
53
SCREW REAR EXHAUST PIPE TO MUFFLER
53
SCREW BRACKET TO SIDE MEMBER
53
SCREW , Replaced By: N304017010002
56
NUT STRAP TO BRACKET
56
NUT , Replaced By: N910113010000
59
ENGINE CROSS MEMBERNO.2,156153
59
ENGINE CROSS MEMBER , Replaced By: A3093100126
59
ENGINE CROSS MEMBERNO.2,156152
62
SCREW BRACKET TO SIDE MEMBER
65
NUT AIR CLEANER ELEMENT
68
CROSS MEMBER PISTOL-GRIP HAND BRAKE NO.4, FROM IDENT NO. 556500 ALSO INSTALLED ON 553795,555902,556120
68
CROSS MEMBER PISTOL-GRIP HAND BRAKE NO.4, FROM IDENT NO. 556500 ALSO INSTALLED ON 553210,556146
68
CROSS MEMBER PISTOL-GRIP HAND BRAKE NO.4, UP TO IDENT NO. 556499 EXCEPT FOR 553795,555902,556120
71
CROSS MEMBERNO.5
74
CROSS MEMBERNO.6
74
CROSS MEMBER , Replaced By: A3093100036
77
CROSS MEMBERNO.6
80
CROSS MEMBERNO.8
80
CROSS MEMBER , Replaced By: A3093100136
83
SCREW BRACKET TO SIDE MEMBER
83
SCREW , Replaced By: N304017010002
86
NUT STRAP TO BRACKET
86
NUT , Replaced By: N910113010000
89
CROSS MEMBERNO.7,316883
89
CROSS MEMBERNO.7,206824
89
CROSS MEMBERNO.7,206824
89
CROSS MEMBER , Replaced By: A3093101341
89
CROSS MEMBER , Replaced By: A3093101441
92
SPRING BRACKET (REAR SPRING BRACKET),FRONT
92
SPRING BRACKET , Replaced By: A3093201475
95
CONSOLE BODY MOUNTING
98
BRACKET RUBBER SPRING
101
BRACKET REAR BRAKE HOSE,316882
104
CONSOLE BODY MOUNTING
104
CONSOLE , Replaced By: A6883117063
110
CONSOLE BODY MOUNTING
140
CROSS MEMBER REAR, TO BE ADAPTED DURING ASSEMBLY
140
CROSS MEMBER , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 556499 TO BE ADAPTED DURING ASSEMBLY, Replaced By: A3093122025
140
CROSS MEMBER , Replaced By: A3093121525
143
SCREW END PIECE TO EXHAUST PIPE M 10X25
152
NUT STRAP TO BRACKET
152
NUT , Replaced By: N910113010000
155
FITTED SCREWM 18X19X57X85
155
FITTED SCREWM 18X19X38X60
155
FITTED SCREWM 18X19X33X55
155
FITTED SCREWM 18X19X25X45
155
SCREWM 16X18X63X85
155
SCREWM 16X18X38X60
155
SCREW , Replaced By: N000961018043
155
SCREW FRONT SPRING FRONT BRACKET TO SIDE MEMBER
155
SCREWM 16X18X26X48
155
SCREWM 18X18X23X45
155
SCREWM 16X18X18X40
155
SCREW , Replaced By: A0009906314
155
SCREWM 16X17X24X44
155
SCREWM 16X17X22X42
155
SCREWM 16X16X38X90
155
SCREWM 16X16X32X50
155
SCREWM 16X16X30X48
155
SCREWM 16X16X20X45
155
SCREW , Replaced By: A3959900501
155
SCREW , Replaced By: N000961016118
155
SCREWM 16X16X22X40
155
SCREWM 16X16X20X38
155
SCREW CONSOLE TO FRAME
155
SCREW , Replaced By: N308676016020
155
SCREWM 14X15X35X52
155
SCREWM 14X15X31X48
155
SCREWM 14X15X29X46
155
SCREWM 14X15X27X44
155
SCREW PLATE TO SIDE MEMBER
155
SCREWM 14X15X21X38
155
SCREWM 14X15X19X36
155
SCREWM 14X15X18X35
155
SCREWM 14X15X17X34
155
SCREWM 14X15X15X32
155
HEXAGON HEAD BOLT. SCREW PROPELLER SHAFT TO TRANSMISSION
155
SCREWM 14X14X27X45
155
SCREWM 14X14X24X42
155
SCREWM 14X14X22X40
155
SCREW , Replaced By: A3169900014
155
SCREWM 12X14X13X35
155
SCREWM 14X14X18X34
155
SCREWM 14X14X18X32
155
SCREW , Replaced By: A3229903101
155
SCREWM 12X13X63X85
155
SCREWM 12X13X58X80
155
SCREWM 12X13X35X52
155
SCREWM 12X13X25X42
155
SCREWM 12X13X23X40
155
SCREWM 12X13X21X38
155
SCREWM 12X13X18X35
155
SCREWM 12X13X15X32
155
SCREWM 12X13X13X30
155
SCREWM 12X13X12X29
155
SCREWM 12X12X17X32
155
HEXAGON HEAD BOLT , Replaced By: A0029902704
155
SCREW , Replaced By: N308676012013
155
SCREWM 12X12X15X30
155
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
155
SCREWM 12X12X13X28
155
SCREW MOUNTING USED FOR FRAME CONNECTION PARTS
155
SCREW , Replaced By: A0029908201
155
SCREWM 12X12X10X25
155
SCREWM 12X12X11X26
155
SCREWM 12X12X10X25
155
SCREWM 10X11X26.5X46
155
FITTED SCREWM 10X11X24X40
155
FITTED SCREWM 10X11X25X38
155
FITTED SCREWM 10X11X14X28
158
NUT TORSION BAR TO BEARING BRACKET,5 904661
158
NUT CONSOLE TO SUPPORT
158
NUT , Replaced By: N910113016001
158
NUT STEERING SUPPORT TO FRAME
158
NUT , Replaced By: N910113014000
158
HEXAGON NUT EXHAUST PIPE TO BRACKET ON SIDE MEMBER
158
NUT , Replaced By: N910113012003
158
NUT GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS
161
RIVET10X34 MM, TO BE ADAPTED DURING ASSEMBLY
161
RIVET10X32 MM, TO BE ADAPTED DURING ASSEMBLY
161
RIVET REINFORCEMENT TO SIDE MEMBER
161
RIVET GUSSET PLATES AND REAR CROSS MEMBER TO SIDE MEMBERS 10X26 MM
161
RIVET10X24 MM, TO BE ADAPTED DURING ASSEMBLY
161
RIVET , Replaced By: N910005010001
161
RIVET REAR CROSS MEMBER TO SIDE MEMBERS 10X16 MM
161
RIVET BEARING BRACKET TO SIDE MEMBER, TO BE ADAPTED DURING ASSEMBLY
161
RIVET , ON VEHICLES WITH LONG PLATFORM
164
COUPLING PIN FOR COUPLING MOUTH
167
LOCKING SPRING COUPLING PIN
