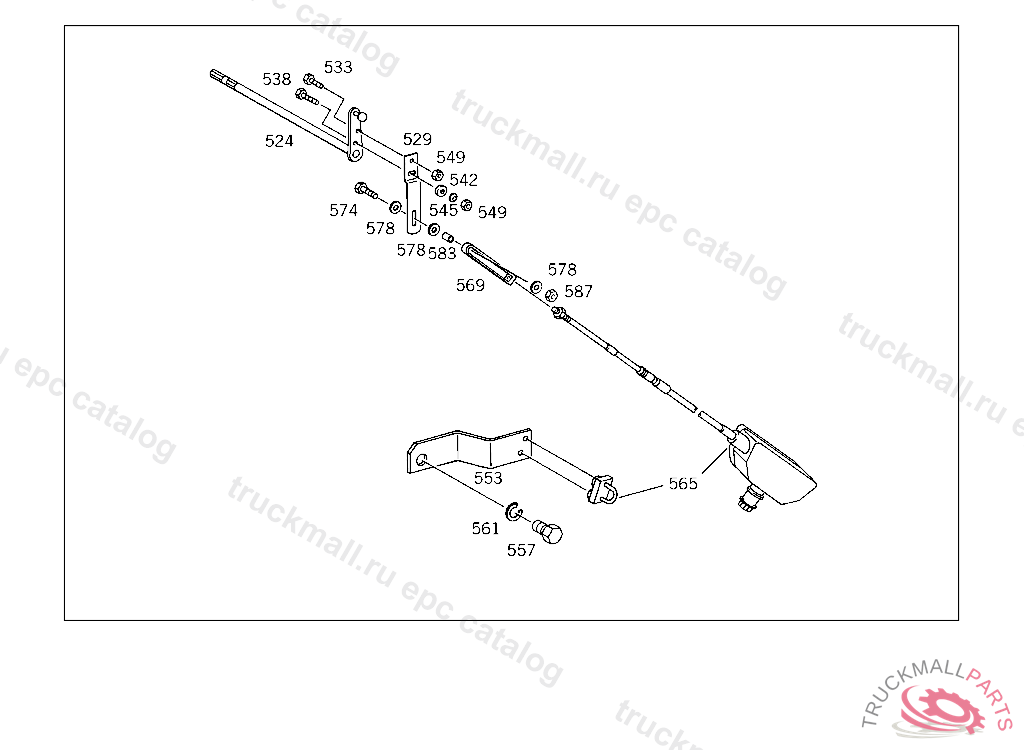

Поз.
Артикул
Описание
524
SHAFT , Replaced By: A3140701023
524
SHAFT MODULATOR INTERMEDIATE SHAFT,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
529
LEVER MODULATOR INTERMEDIATE SHAFT,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
533
SCREW COVER PLATE TO BRACKET
538
SCREW COVER PLATE TO BRACKET
542
WASHER COMPRESSED AIR LINE TO BRACKET
542
WASHER , Replaced By: N009021006208
545
CONICAL SPRING WASHER COVERING
549
NUT PUMP TO BRACKET
549
NUT , Replaced By: N913004006001
553
BRACKET MODULATOR,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
557
SCREW SHACKLE TO CONSOLE
561
LOCK WASHERROCKINGER TYP 59 G140,59 G150
565
MODULATOR MECHANICAL,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
569
INTERMEDIATE PIECE MODULATOR,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
574
SCREW , Replaced By: N304017006012
574
SCREW 3/2-WAY SOLENOID VALVE TO BRACKET
578
WASHER COMPRESSED AIR LINE TO BRACKET
578
WASHER , Replaced By: N009021006208
583
SPACER TUBE MODULATOR,290002 ONLY FOR USE WUTH MECHANICAL MODULATOR
587
NUT , Replaced By: N913004006001
587
NUT PUMP TO BRACKET
999
CLAMP , Replaced By: N000000001045
999
CLAMP , Replaced By: N916016010211
999
CLAMP LINE CONNECTION
999
NUT. UNION NUT RETURN
999
UNION NUT LINE MOUNTING,5 9363655 812730
999
BALL-TYPE NIPPLE. SEAL CONE OIL LINES
999
BALL-TYPE NIPPLE. SEAL CONE , Replaced By: A3449907067
999
NUT , Replaced By: N910113010000
999
NUT , Replaced By: N913004006001
999
NUT TWO-WAY VALVE TO BRACKET
999
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
999
NUT STRAP TO BRACKET
999
HOSE COOLING WATER LINE TO AIR COMPRESSOR, ORDER BY THE METER
999
SCREW CONTROL UNIT TO CAB
999
SHEET METAL SCREW HAND BRAKE ROD WITH COVERING TO CAB FLOOR
999
GLAND LINE MOUNTING,5 9363655 812730
999
SCREW HANDLE TO LID
999
SCREW END PIECE TO EXHAUST PIPE M 10X25
999
SCREW PROTECTION PLATE TO BRACKET
999
SCREW LICENSE PLATE TO BRACKET,4 300861
999
CLAMP CABLE HARNESS MOUNTING
999
CLAMP LINE MOUNTING
999
BRACKET DELIVERY AND SUCTION LINES TO ENGINE, TOP
999
SHIM , Replaced By: A3520780186
999
LINE FROM TEST CONNECTION TO RIGHT FRONT WHEEL 2200 MM,4 478329
999
CLAMP
999
ROD , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 565454, Replaced By: A3102900439
999
CLAMP , Replaced By: A3179950832
999
BRACKET FUEL LINES
999
BRACKET FUEL LINE
999
BRACKET FUEL LINE
999
ENGINE CROSS MEMBER , Replaced By: A3103120407
999
BRACKET PEDAL ASSEMBLY
999
RADIATOR , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 290001, Replaced By: A3095003602
999
SPACER TUBE MASTER CYLINDER TO CONSOLE TO 000 295 91 06
999
INTERMEDIATE PIECE FROM CLUTCH MASTER CYLINDER TO RESERVOIR
999
HOSE FROM CLUTCH HOSE TO SLAVE CYLINDER
999
SPRING RETAINER SPRING TO PUSH ROD
999
PEDAL ,275293-526086, Replaced By: A3092902216, +001A3102900339, +001A1232950150, +001N000931008047, +001N913004008004
999
BRACKET CLUTCH PEDAL AND BRAKE PEDAL,314243
999
LINE FEED
999
LINE RETURN
999
LINE , Replaced By: A3092701996, +001A0009974452
999
LINE , Replaced By: A3092701896, +001A0009974452
999
LEVER , EXHAUST STOCK OF OLD PARTS UP TO CHASSIS 290001, Replaced By: A3092603837
999
LEVER (INTERMEDIATE LEVER),TRANSMISSION, ON TRUCKS UP TO CHASSIS 165463,ON BUSES UP TO CHASSIS 020078
999
NUT ROD TO LEVER,526440
999
STOP
999
WASHER PEDALS TO PIVOT PINS
999
ROD
999
GROMMET , Replaced By: A1079970881
999
SPRING (DEAD CENTER SPRING) 35 MM
999
EXPANSION PLUG VENTILATION BORE IN WHEELHOUSE, ONLY FOR REPAIR PURPOSES
999
BUSHING
999
BUSHING , Replaced By: A1242920050
999
PAD , Replaced By: A1072910182
999
HOSE CLAMP HOSE FASTENING 9/13MM
999
GROMMET PLUG SOCKET
999
CLAMP , Replaced By: N916016010201
999
LOCK AT WATER EXPANSION TANK
999
SEAL CONE
999
MASTER CYLINDER , 000,003,007,102,103,105,200 A 091118 083,086,093,183,190,193,280,283 F 015866, Replaced By: A0012954406, +001A0002950833
