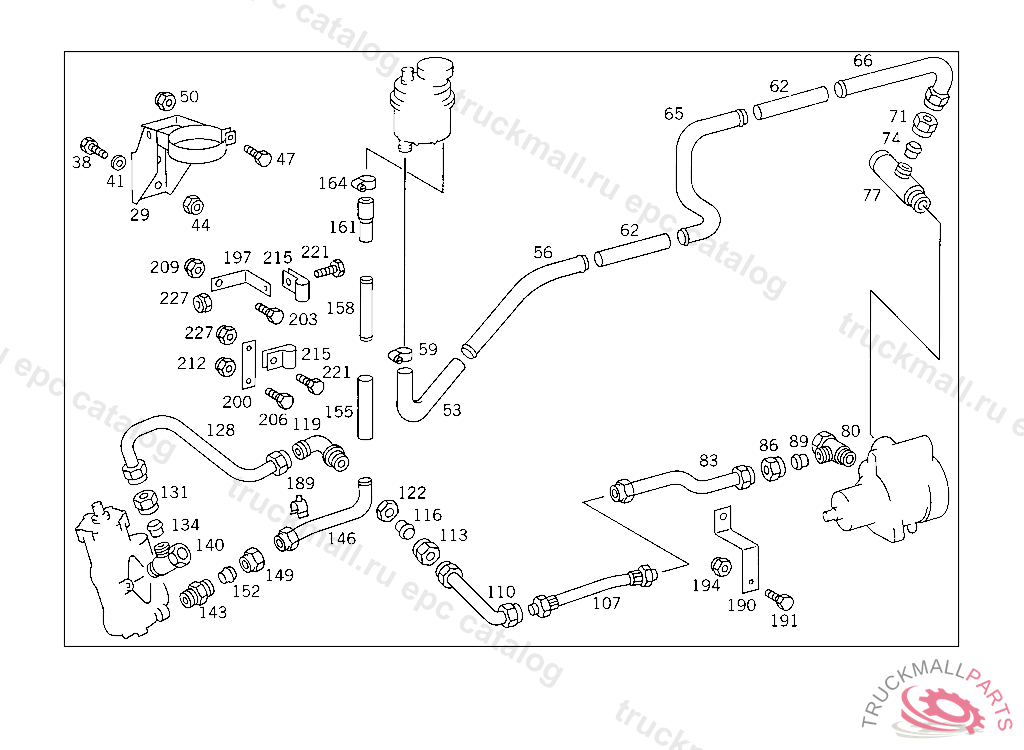

Поз.
Артикул
Описание
29
BRACKET OIL TANK,5 553319
29
BRACKET , Replaced By: A6754601035, +001A6752600262
38
SCREW BEARING BRACKET TO SIDE MEMBER
41
SPACER WASHER BRACKET TO FRAME
44
NUT COMBINATION CYLINDER TO BEARING BRACKET
44
NUT COMBINATION CYLINDER TO BEARING BRACKET, Replaced By: N910113016002
47
SCREW OIL TANK TO BRACKET
50
NUT PUMP TO BRACKET
50
NUT , Replaced By: N913004006001
53
HOSE ,K 055044
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 163366
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
56
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
59
CLAMP , Replaced By: N000000000667
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
59
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
62
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
62
HOSE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138294
62
HOSE , Replaced By: A3859971582
65
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
66
LINE ,K 055043K 126843
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 1382945 374583
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP,5 138293
66
LINE (SUCTION LINE),FROM OIL TANK TO PUMP
71
UNION NUT LINE CONNECTION, Replaced By: N000000006243
71
NUT LINE CONNECTION
74
GLAND , Replaced By: A0019901267
77
FITTING SUCTION LINE TO OIL PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
80
SCREW CONNECTION DELIVERY LINE TO PUMP
83
LINE FROM PUMP TO HIGH PRESSURE HOSE,5 138293
86
UNION NUT LINE CONNECTION, Replaced By: N000000006239
86
UNION NUT LINE CONNECTION
89
GLAND , Replaced By: A0019901967
89
SEAL CONE LINE CONNECTION
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138293
107
HOSE POWER-STEERING-PUMP-TO-STEERING-BOX DELIVERY LINE
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
107
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,K 126844
110
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955601
110
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO FITTING,5 955600 SA 083.128/24/25: 5 903781-5 955600
110
LINE , Replaced By: A6744600988, +001A6744660340
113
NUT. UNION NUT LINE CONNECTION
116
CUTTING RING. GLAND LINE CONNECTION
119
FITTING DELIVERY LINE TO FRAME
122
NUT LOAD/NO-LOAD VALVE,CONNECTIONS: "10,20"
128
LINE , Replaced By: A0004292301
128
LINE (DELIVERY LINE) FROM FITTING TO STEERING
131
NUT. UNION NUT LINE CONNECTION
134
CUTTING RING. GLAND LINE CONNECTION
140
SCREW CONNECTION DELIVERY LINE TO STEERING
143
SCREW-IN FITTING DELIVERY LINE TO PUMP
146
LINE , Replaced By: A0004291001
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 138293
146
LINE (RETURN LINE),FROM STEERING TO OIL TANK,5 163366
146
LINE12 MM, ORDER BY THE METER4 691315
149
UNION NUT LINE CONNECTION
149
UNION NUT LINE CONNECTION, Replaced By: N000000006239
152
GLAND , Replaced By: A0019901967
152
SEAL CONE LINE CONNECTION
155
HOSE , Replaced By: A0009974752
155
HOSE , Replaced By: A3099971182
155
HOSE (RETURN LINE),FROM STEERING TO OIL TANK
158
LINE , Replaced By: A6734662065
158
LINE , THE OLD PART MUST NO LONGER BE INSTALLED, Replaced By: A6744661865
158
LINE (RETURN LINE),FROM STEERING TO OIL TANK
161
HOSE ,K 055044
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK 16-27X13 MM
164
CLAMP HOSE TO FITTING AND TO OIL TANK
189
BRACKET HOSE TO OIL DIPSTICK GUIDE TUBE,K 130676
189
BRACKET WITH PLUG,K 130676
189
CLAMP , Replaced By: N916016015202
189
CLAMP LINE MOUNTING
189
CLAMP OIL FILLER PIPE TO BRACKET
189
BRACKET , Replaced By: A6734661040
190
BRACKET DELIVERY LINE TO FRAME
191
SCREW END PIECE TO EXHAUST PIPE M 12X30
191
SCREW , Replaced By: N304017012020
194
NUT END PIECE TO EXHAUST PIPE
197
BRACKET , Replaced By: A6454310740
197
BRACKET FUEL LINE TO BELL HOUSING
200
BRACKET , Replaced By: A6173020440
200
BRACKET FEED LINE AND RETURN LINE,5 346007
203
SCREW , Replaced By: N304017010002
203
SCREW BRACKET TO SIDE MEMBER
206
SCREW PIPE CLAMP
206
SCREW , Replaced By: N304017008021
209
NUT , Replaced By: N910113010000
209
NUT STRAP TO BRACKET
212
NUT , Replaced By: N913004008001
215
CLAMP LINE MOUNTING
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
215
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, TOP
221
SCREW CLAMP MOUNTING M 6X16
221
SCREW , Replaced By: N914146006102
227
NUT PUMP TO BRACKET
227
NUT , Replaced By: N913004006001
999
THRUST RING SUCTION LINE TO OIL PUMP
999
SEALING CORD SUCTION LINE TO OIL PUMP
999
PROTECTIVE CAP
999
BRACKET LINE MOUNTING,5 220227
999
ELBOW FITTING SUCTION LINE TO OIL PUMP
999
HOSE (DELIVERY LINE),FROM PUMP TO STEERING,5 138294
999
SEAL RING LOAD/NO-LOAD VALVE,CONNECTION: "20"
999
NUT SUCTION LINE TO OIL PUMP
