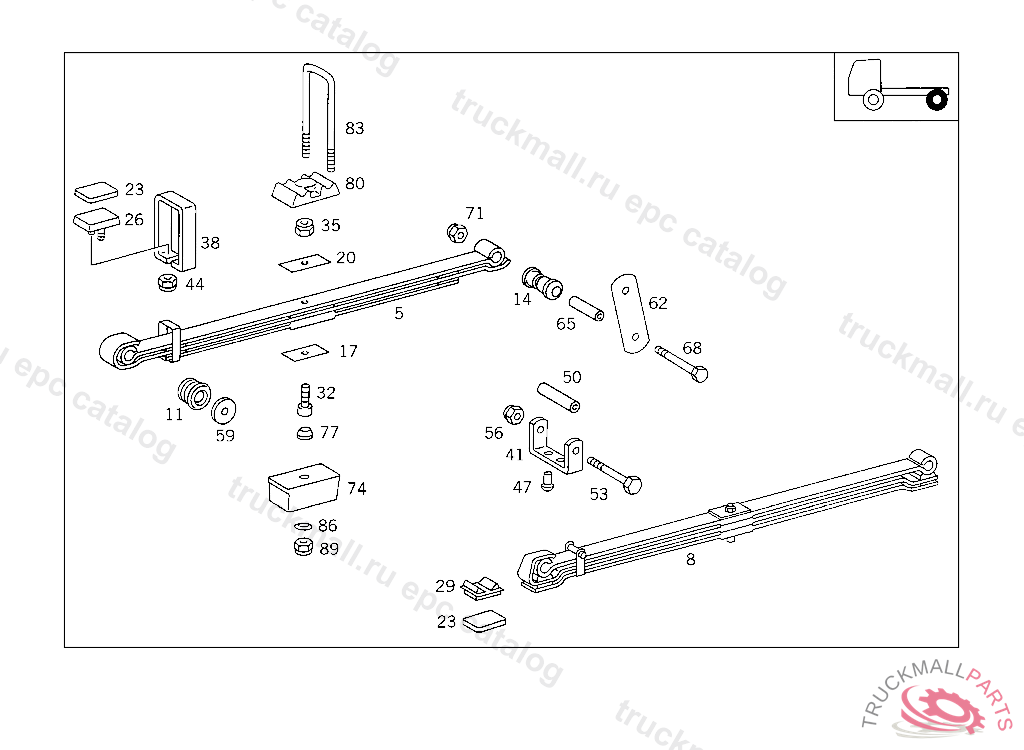

Поз.
Артикул
Описание
5
REAR SPRING , FIRST EXHAUST STOCK OF OLD PARTS UP TO IDENT NO. 5 393360, Replaced By: A6743203706
5
REAR SPRING (SUPPORTING SPRING),3 LEAVES
11
BUSHING SPRING EYE,FRONT
14
BUSHING SPRING EYE,REAR
17
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
17
SHIM , Replaced By: A9703210184
20
SHIM BETWEEN THE SPRING LEAVES, TO BE ADAPTED DURING ASSEMBLY
20
SHIM , Replaced By: A9703210184
23
SHIM BETWEEN THE SPRING LEAVES
26
RUBBER BUFFER
29
RUBBER BUFFER BETWEEN THE SPRING EYES
32
SPRING BOLT ,5 227450
35
NUT , Replaced By: N910113012005
35
HEXAGON NUT. NUT SPRING BOLT
38
SPRING CLAMP , Replaced By: A6763210033
38
SPRING CLAMP , Replaced By: A6753210133
38
SPRING CLAMP AT SPRING LEAF NO.5
44
NUT , Replaced By: N913004008001
44
NUT OIL-DIPSTICK GUIDE TUBE TO BRACKET, Replaced By: N910113008003
59
THRUST WASHER REAR SPRING TO REAR SPRING FRONT BRACKET
62
SHACKLE (SPRING SHACKLE)
65
BUSHING REAR SPRING TO REAR SPRING REAR BRACKET
68
SCREW CONTROL ARM TO REAR SPRING REAR BRACKET
71
NUT INTERMEDIATE LEVER TO STEERING SUPPORT
71
NUT , Replaced By: N910113018004
74
SHIM ,5 361886, Replaced By: A6743220884, +001A3289910060
74
SHIM REAR SPRING TO REAR AXLE,5 361887
77
DOWEL PIN (CENTERING CONE),5 361887, Replaced By: A9303230574
77
CENTERING BOLT (CENTERING CONE),5 361887
77
DOWEL PIN , Replaced By: A6749910060
77
DOWEL PIN (CENTERING CONE),5 361886
80
PLATE REAR SPRING TO REAR AXLE
83
U-BOLT FRONT SPRINGS TO FRONT AXLE 280 MM
86
SPHERICAL WASHER FRONT SPRINGS TO FRONT AXLE,5 468450
89
NUT FRONT SPRINGS TO FRONT AXLE
999
BUSHING SPARE WHEEL HOIST TO CROSS MEMBER
999
SHACKLE , Replaced By: A6753250420
