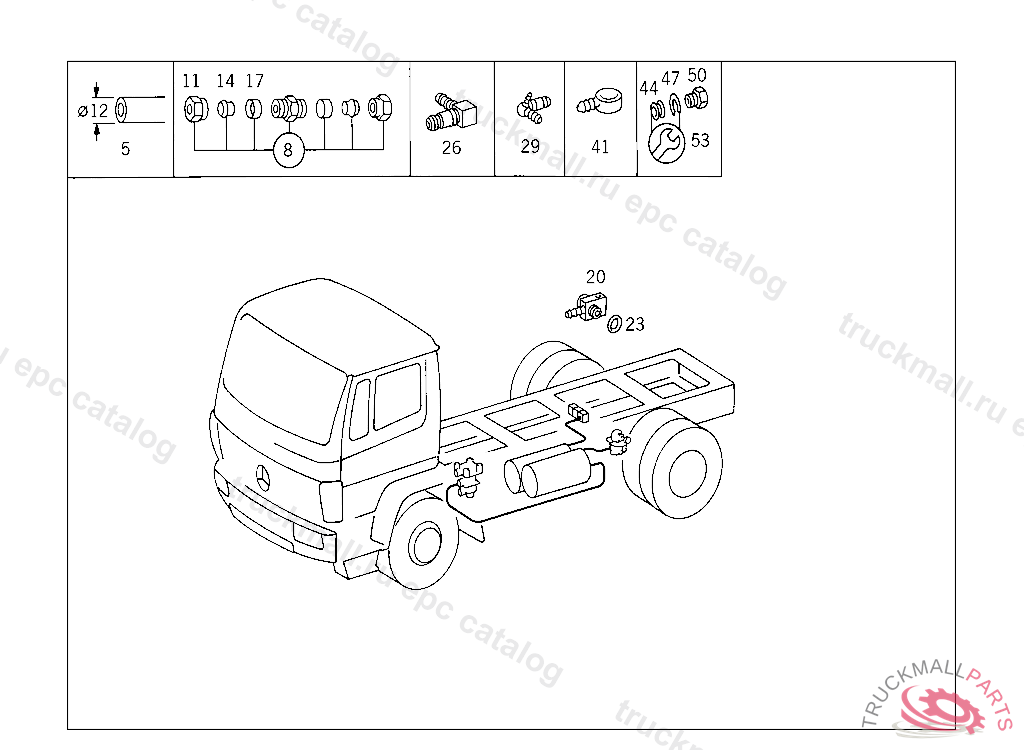

Поз.
Артикул
Описание
5
PLASTIC PIPE FUEL LINE 12X1,5 MM, ORDER BY THE METER
5
HOSE , Replaced By: A0009872827
8
FITTING (PARTS KIT),LINE RUPTURE
11
UNION NUT LINE CONNECTION
11
UNION NUT LINE CONNECTION, Replaced By: N000000006239
14
GLAND , Replaced By: A0019901967
14
SEAL CONE LINE CONNECTION
17
SLEEVE LINE CONNECTION
20
CONNECTOR , Replaced By: A0019904078
20
CONNECTOR RELEASE BEARING LUBRICATION
23
SEAL RING , Replaced By: A0229973948
23
SEAL RING CONNECTOR 11.8X2 MM
26
ELBOW FITTING COMPRESSED-AIR-LINE PLUG-CONNECTION
29
ELBOW FITTING HOSE WIDTH, 9 MM,TO M 22
41
BANJO UNION HEATING CONNECTION,K 169122
41
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
41
BANJO UNION HOSE WIDTH, / I.D., 6/16 MM
41
BANJO UNION HOSE WIDTH, / I.D., 6/12 MM
44
SEAL RING , Replaced By: A0009940747
44
SEAL RING COMPRESSED-AIR-LINE PLUG-CONNECTION
44
LOCK RING LINE CONNECTION
47
LOCK LINE CONNECTION
47
LOCK COMPRESSED-AIR-LINE PLUG-CONNECTION
47
LOCK , Replaced By: A0009945448
50
SCREW. UNION SCREW , Replaced By: A0009973734
50
SCREW. UNION SCREW LINE CONNECTION
50
SCREW. UNION SCREW LINE CONNECTION
53
REPAIR KIT COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 16
53
REPAIR KIT. TS SEALING RING COMPRESSED-AIR-LINE PLUG-CONNECTION TO M 22
53
REPAIR KIT , Replaced By: A0309971748
