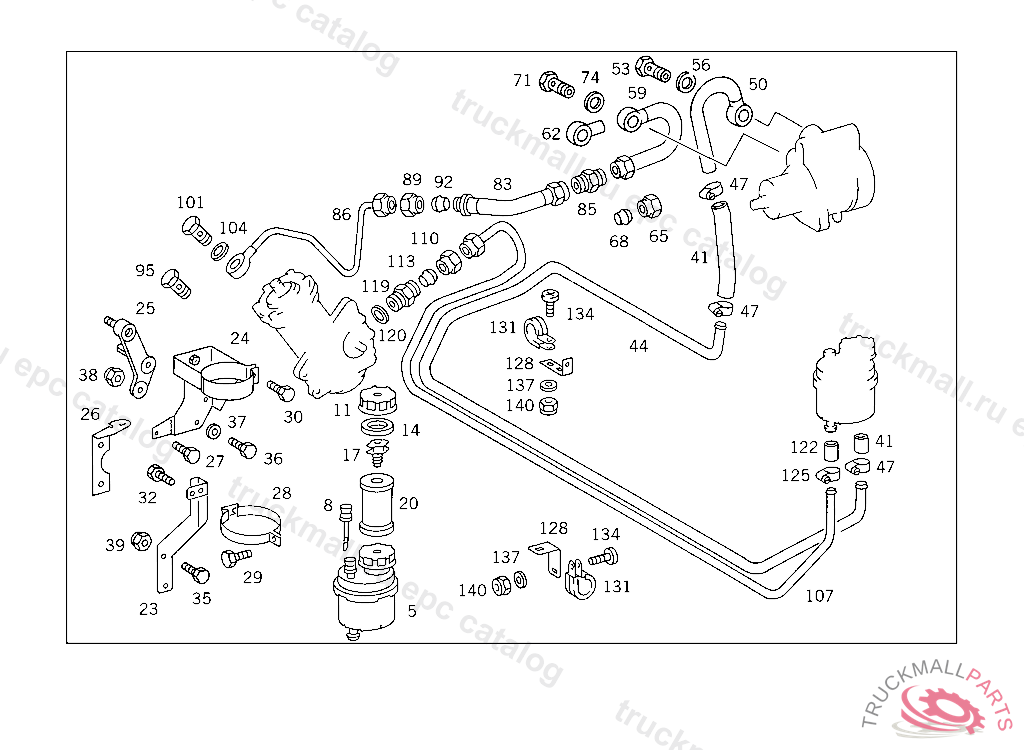

Поз.
Артикул
Описание
5
TANK OIL
8
OIL DIPSTICK , Replaced By: A0004660867
11
FILLER CAP
14
SEAL RING
17
BRACKET
20
FILTER
23
BRACKET OIL TANK
24
BRACKET OIL TANK
25
BRACKET AT STEERING GEAR
26
BRACKET AIR INTAKE PIPE,K 055088
27
SCREW BRACKET TO STEERING BOX M 10X16
28
STRAP OIL TANK
29
SCREW , Replaced By: N304017010040
30
SCREW OVERLOAD PROTECTOR TO BRACKET
32
SCREW BRACKET TO SIDE MEMBER
35
SCREW SUPPORT TO FRAME M12X1,5X35,D 127794
36
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X35
37
WASHER SUPPORT TO FRAME,D 127794
38
NUT PUMP TO BRACKET
39
NUT SUPPORT TO SIDE MEMBER
41
HOSE RETURN, FROM STEERING TO OIL TANK, ORDER BY THE METER
44
LINE FROM OIL TANK TO SUCTION LINE
44
LINE FROM OIL TANK TO SUCTION LINE
47
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK
47
CLAMP INTERMEDIATE PIPE TO PARTICLE FILTER
50
LINE SUCTION LINE TO OIL PUMP
53
HOLLOW SCREW AIR COMPRESSOR,CONNECTION: "2"
56
SEAL RING AIR COMPRESSOR,CONNECTION: "10"
59
LINE FROM PUMP TO HIGH PRESSURE HOSE
59
LINE FROM PUMP TO HIGH PRESSURE HOSE
62
BANJO UNION DELIVERY LINE
62
BANJO UNION
65
UNION NUT LINE CONNECTION, Replaced By: N000000006239
68
GLAND , Replaced By: A0019901967
71
HOLLOW SCREW
71
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
74
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
74
SEAL RING DELIVERY LINE
83
HOSE DELIVERY LINE TO PUMP
85
CONNECTION FITTING , Replaced By: A0049971772
86
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
86
LINE (DELIVERY LINE) FROM HIGH PRESSURE HOSE TO STEERING BOX
89
NUT. UNION NUT LINE CONNECTION
89
UNION NUT LINE CONNECTION, Replaced By: N000000006239
92
CUTTING RING. GLAND LINE CONNECTION
92
GLAND , Replaced By: A0019901967
95
HOLLOW SCREW
101
HOLLOW SCREW LINE CONNECTION TO TRANSMISSION
104
SEALING RING. SEAL RING DELIVERY LINE TO STEERING
104
SEAL RINGTO 006 997 00 72
107
LINE FROM STEERING GEAR TO OIL TANK
107
LINE FROM STEERING GEAR TO OIL TANK
110
UNION NUT LINE CONNECTION
113
GLAND LINE CONNECTION
119
SCREW-IN FITTING RETURN LINE TO STEERING
120
SEAL RING VALVE TO VALVE,K 025179
122
HOSE , Replaced By: A3859971682
122
HOSE HIGH PRESSURE
125
CLAMP , Replaced By: N000000000667
125
CLAMP HOSE TO HEATING PIPE
125
LOOM TIE HOSE TO HEATING PIPE
125
CLAMP HOSE TO SUCTION LINE AND TO OIL TANK 20-32X13 MM
128
BRACKET OIL LINES
128
BRACKET FUEL LINE
128
BRACKET DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP HEATER-PLUG/SOLENOID-VALVE BRANCH-OFFS TO NOZZLE HOLDER,K 092646
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
131
CLAMP OIL DIPSTICK TO RADIATOR
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP LINES TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 22/15
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
CLAMP RETURN AND SUCTION LINES TO FRAME, FRONT
131
CLAMP LINES TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO ENGINE, FRONT
131
CLAMP BATTERY POS. CABLE TO BRACKET
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME
131
CLAMP DELIVERY AND SUCTION LINES TO FRAME 12/15
134
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
134
SCREW LINES TO BRACKET
134
SCREW ELECTRICAL COMPARTMENT
134
SCREW OVERLOAD PROTECTOR TO BRACKET
134
SCREW RETURN AND SUCTION LINES TO FRAME, FRONT M 12X40
137
WASHER PLUG SOCKET TO BRACKET
137
WASHER SUPPORT TO FRAME,D 127794
137
WASHER BRACKET TO CAB REAR PANEL
140
NUT PUMP TO BRACKET
140
NUT BRACKET TO LEFT SIDE MEMBER
999
WASHER BRACKET TO STEERING GEAR
