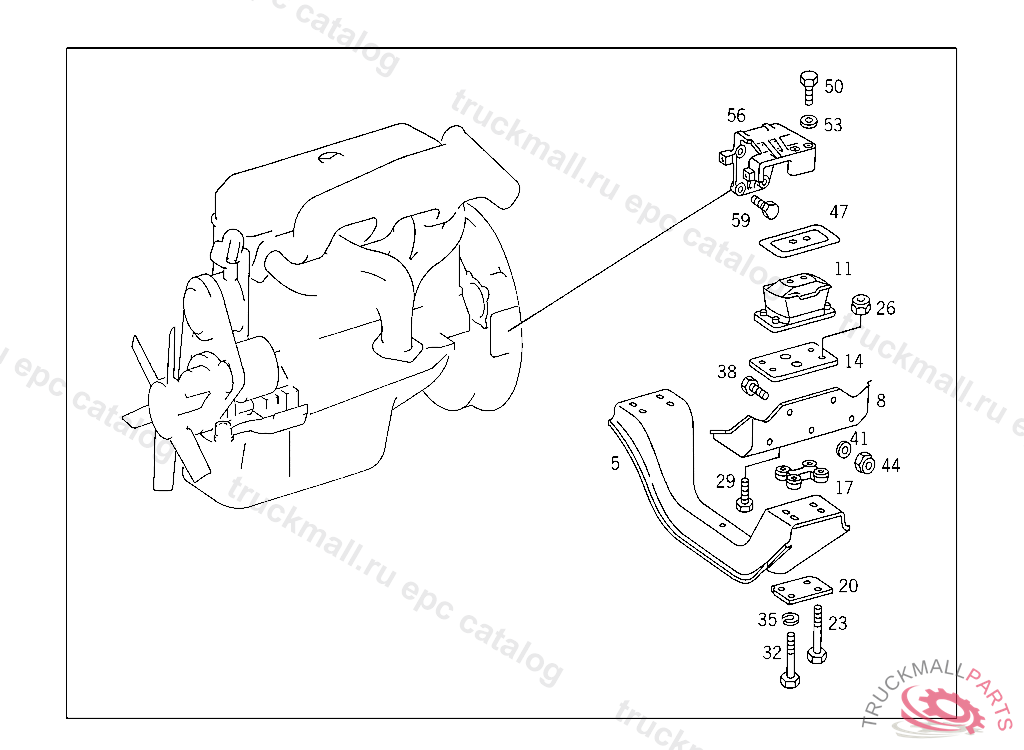

Поз.
Артикул
Описание
5
ENGINE CROSS MEMBER REAR
8
SUPPORT REAR
11
RUBBER MOUNTING CLUTCH END
11
RUBBER MOUNTING CLUTCH END
11
RUBBER MOUNTING CLUTCH END
11
RUBBER MOUNTING
11
RUBBER MOUNTING REAR
11
RUBBER MOUNTING REAR
14
WASHER ENGINE REAR SUSPENSION
17
SHIM CROSS MEMBER TO CONSOLE,D 132899D 154054
20
REINFORCEMENT LEFT
20
REINFORCEMENT RIGHT
23
SCREW , Replaced By: N000960012335
23
SCREW BRACKET TO BUMPER STRUT
26
NUT SUPPORT TO SIDE MEMBER
29
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
32
SCREW CROSS MEMBER TO CONSOLE M 12X1.5X90,D 132899D 154054
35
LOCK WASHER FITTING TO BRACKET
38
SCREW TIGHTENER PULLEY TO BRACKET ON ENGINE
38
SCREW ENGINE REAR SUPPORT TO FRAME M 12X35
38
SCREW SUPPORT TO SIDE MEMBER M 12X1.5X30
41
WASHER SUPPORT TO FRAME,D 127794
44
NUT BRACKET TO LEFT SIDE MEMBER
44
NUT SUPPORT TO SIDE MEMBER
47
SCREENING PLATE REAR RUBBER MOUNTING
50
SCREW ENGINE TO ENGINE REAR MOUNTING M 14X1.5X90
53
WASHER CROSS MEMBER TO SUPPORT
56
ENGINE SUPPORT ENGINE TO LEFT REAR RUBBER MOUNTING
56
ENGINE SUPPORT ENGINE TO RIGHT REAR RUBBER MOUNTING
59
SCREW ENGINE REAR SUPPORT TO RUBBER MOUNTING M 16X45
