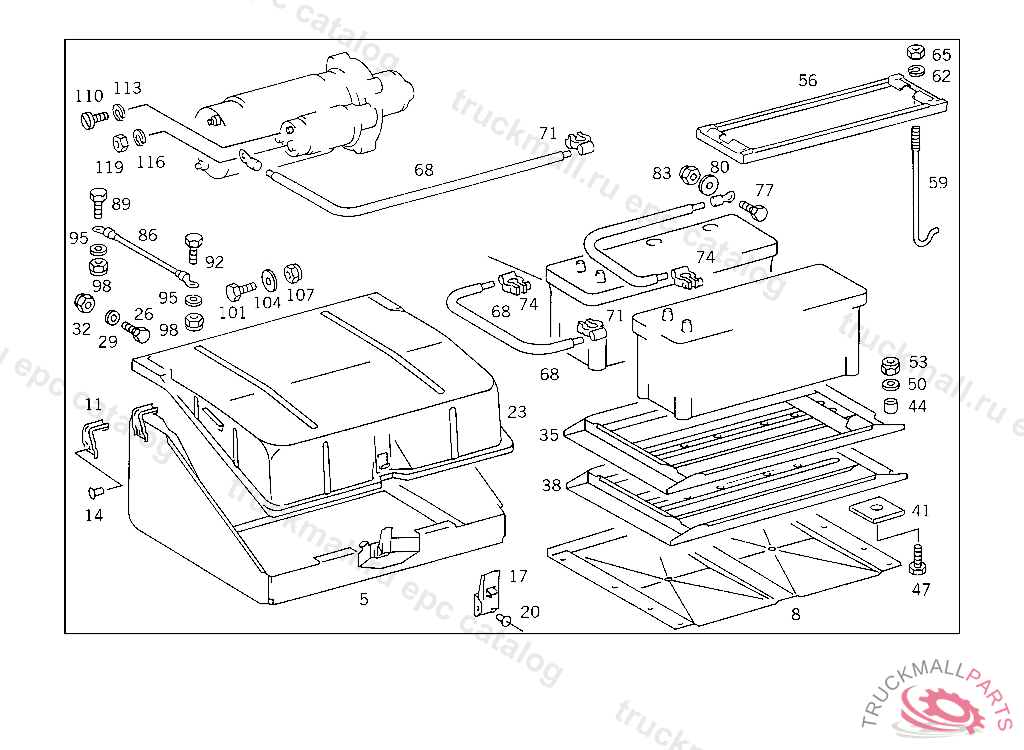

Поз.
Артикул
Описание
5
BATTERY SUPPORT , Replaced By: A6165400316
5
BATTERY SUPPORT , Replaced By: A6205401916
5
BATTERY SUPPORT , TO BE ADAPTED DURING ASSEMBLY
8
BATTERY CASE
11
BRACKET BATTERY/APPARATUS SUPPORT,LEFT
11
BRACKET BATTERY/APPARATUS SUPPORT,RIGHT
14
RIVET BRACKET TO APPARATUS SUPPORT
17
FASTENING CLAMP BATTERY/APPARATUS SUPPORT
17
LOCKING HANDLE PROTECTIVE PLATE TO APPARATUS SUPPORT
17
LOCKING HANDLE BATTERY/APPARATUS SUPPORT, Replaced By: A9609880142
20
RIVET LOCKING LEVER TO BATTERY/APPARATUS SUPPORT
23
COVER BATTERY/APPARATUS SUPPORT
26
SCREW BRACKET TO CAB CONSOLE M14X1.5X40
26
SCREW BRACKET TO CAB CONSOLE,K 035197
32
NUT , Replaced By: N910113014001
35
RAIL BATTERY BASE FRAME
38
RAIL BATTERY BASE FRAME, 415 5 014668 416 5 000515 417 4 972023
41
INSULATING PLATE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
44
SPACER TUBE BATTERY BASE FRAME TO BATTERY/APPARATUS SUPPORT
47
SCREW BRACKET TO FRAME SIDE MEMBER
50
WASHER , Replaced By: N007349010007
53
NUT , Replaced By: N910113010000
56
MOUNTING FRAME BATTERY MOUNTING
59
CLAMPING SCREW BATTERY MOUNTING
62
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
65
NUT BALL PIVOT TO LEVER
68
ELECTRIC CABLE , Replaced By: A6735460013
68
ELECTRIC CABLE , Replaced By: A6735460013
68
ELECTRIC CABLE , Replaced By: A6735460013
71
SOLDERING TERMINAL BATTERY POS. POLE 70 MM2
74
SOLDERING TERMINAL BATTERY NEG. POLE 70 MM2
77
SCREW , Replaced By: N304017010002
80
WASHER , Replaced By: N009021010209
83
NUT , Replaced By: N910113010000
86
NEG. CABLE , Replaced By: A6205402339
86
NEG. CABLE FROM FRAME CROSS MEMBER TO CAB
89
SCREW , Replaced By: N304017008016
92
SCREW , Replaced By: N304017008034
95
WASHER TRAILER PLUG SOCKET TO BRACKET
98
NUT BRACKET TO SIDE MEMBER
101
SCREW , Replaced By: N304017010002
104
WASHER , Replaced By: N009021010209
107
NUT , Replaced By: N910113010000
110
SCREW STARTING MOTOR TERMINAL 50
113
LOCK WASHER CONTROL LEVER TO INJECTION PUMP LEVER
116
LOCK WASHER BRACKET TO SUPPORT AND TO END PIECE
119
NUT POSITIVE CABLE TO STARTING MOTOR, TERMINAL: 30
